Name: CCTV Camera Weatherproof Bass BNC Compression Connectors
Brand: all-electronics-online.com
SKU: 685588692
Availability: InStock
Rating: 4.6 (126 reviews)

Price:	US $ 1.65/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BNC Compression Connectors
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Impedance:	75ohm
Frequency Range:	60 Hz Continuous AC
Applicable Standard:	IEC 60169-24
Application:	Distribution Cable Connector
Temp.Range:	-40 F to +140 F
MOQ:	500 Pieces
Delivery:	About 7 Days
Sample:	Free
Material:	Bass
Brand:	Softel
Type:	Ks-Ks
Coupling Mechanism:	Ks-Ks

Product Description

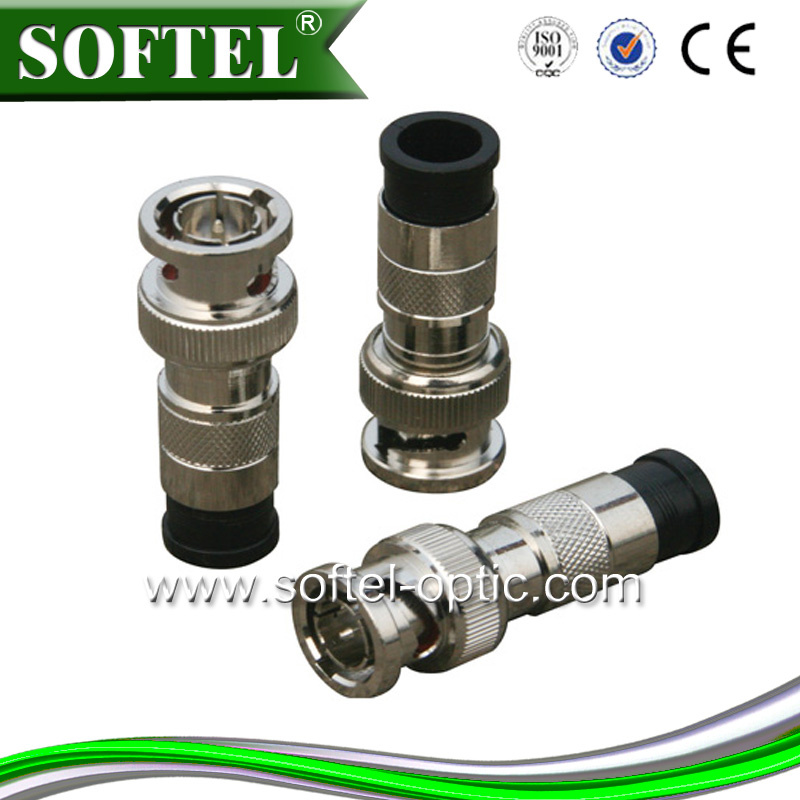

Top Design Weatherproof Bass BNC Compression Connectors

Products'details:

Characteristic:

Coaxial cable RG6 rg59 F compression connector

1.Manfactured of high quality brass with nickel plating of superior protection against v-corrosion
2.Designed to be watertight for outdoor applications
3.Offer excellent RFI shielding properties
4.easy-grip free-spinning nut for fast installation and installer comfort
5.Universal for standand .tri-shield or quad-shield RG6 coaxial cable

Parmeters:

*Impedance 75 Ohms

*High Return loss

*Low Insertion Loss

*Operating Voltage 90V (at 60 Hz continuous AC)

*Operating temperature -40°F to +140°F

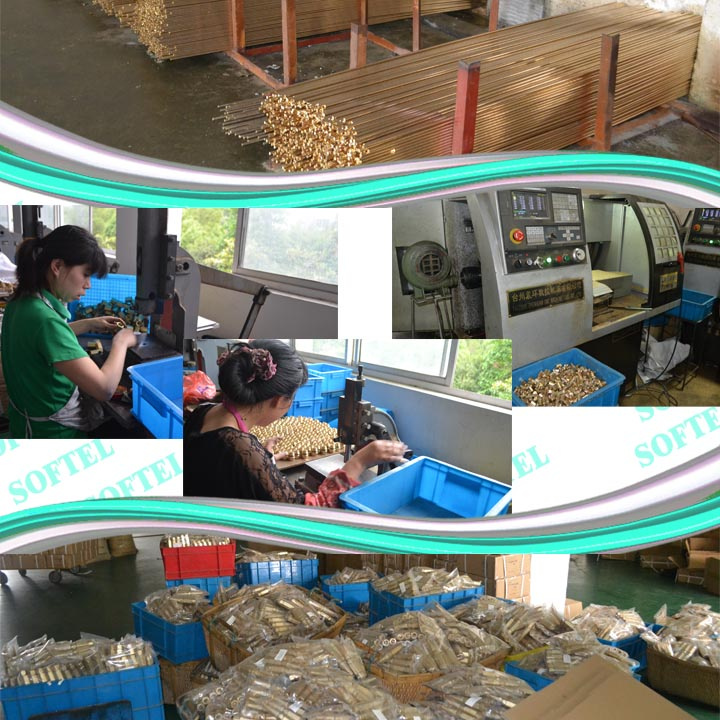

Workshop:

Our Teams:

Connector type	BNC compression	Working Voltage	500V max
Frequency Range	DC~1GHz	Vswr	≤1.3
Impedance	75Ω,50Ω	Temp.range	-25~+85°C
Conductor resistance	Internal ≤ 1.5 mΩ	Material	Shell:Copper, Bright nickel plating

	External ≤ 1 mΩ		inner conductor: Brass,gold plating
Insulating resistance	≥ 5000 MΩ@ DC500V		Insulator: PTPE
Withstanding voltage	1500V rms	Applicable standard	IEC 60169-8

Hangzhou Softel Optic Co., Ltd. (Brand: SOFTEL) was established in 2006, which Located in the HangZhou Hi-Tech Development Zone. Taking advantage of the modern broadcast and optic fiber communication technology, we are specializing in R&D of CATV system equipment, and leading manufacturer of HFC broadband Optic Transmission equipment with strong R&D capability in this field.

We have more than 100 staff in which 10% of senior technicians. It has more than 1, 000 square meters standards production assembling line, we have strict QC procedure, each unit of our products will go through 3 layer QC procedure, material checking before production, stability and performance testing after production, packing checking before delivery.

Currently, we supplying to numerous agents, integrated dealers and equipment producers all over the world, most of our products move to South America, Russia and north European countries.

Through keen international business competition in good faith, all of our staffs feel big accomplishment & work under heavy responsibility. In addition, we are much proud of providing our invaluable customers with our high quality, high reliability, high efficiency, competitive products.
