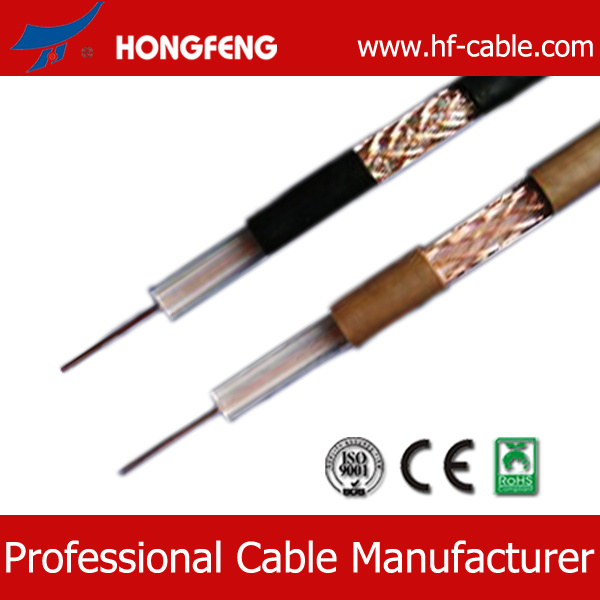

CCTV Cat Double Shield Communication Coaxial Cable Rg5995

Prod Model:	Coaxial Cable RG5995
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
1.CCTV Camera Visual Extension Cable:	2.Easy Use
3.Anti-Aging Capability:	4.Soft and Flexible
Coaxial Cable Rg59:	Rg59 Coaxial Cable
Rg5995:	5995 Cable
Place Of Origin:	Hangzhou, Zhejiang, China
H.S.Code:	8514.20000
Inner Conductor:	22 AWG Solid Copper
Shielding:	Al.Foil Pet+ Al.Wire Braiding
Sheath:	PVC Jacket
Application:	Coaxial Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	ETL
Type:	Coaxial
Model:	Coaxial
Brand:	Hf/OEM

Product Description

CCTV CAT Double Shield Communication Coaxial Cable RG5995

1. Our services:
1, Good quality guarantee
2, CE. RoHS. ETL. ISO
3, Factory Price
4, OEM is ok
5, Short delivery time

2. Specifications

Inner Conductor- - - - 0.81± 0.01mm Copper
Dielectric - - - - - - -- 3.66± 0.05mm Foam PE
Shield - - - - - - - - - - - - Bonded Aluminum PET Aluminum
Braid Coverage- - -- - - 0.12mm *16*6 (60%)AL-Mg Alloy
Shield- - - - - - - - - -- - - Aluminum PET Aluminum
Jacket- - - - - - - - - - - - 6.1± 0.05 mm PVC
Jelly/APD - - - - -- - - - - Per Customized

3. Options:
1. Inner Conductor: Bare Copper, CCA, CCS
2. Dielectric: Foam/Solid PE
3. Shield: (Bonded/non-bonded) A/P/A, A/P Foil, copper Foil
4. Braid wire material: Bare Copper, CCA, AL-Mg, TC
5. Braid wire diameter: 0.12mm, 0.16mm
6. Braid net: 64W, 72W, 80W, 96W, 128W and more
7. Braid coverage: 60%, 70%, 80%, 90% and more
8. PVC jacket degree: 65, 70, 75 and more
9. Certifications: UL, CSA, ETL, RoHS, CE etc.
10. Customized requirement welcomed.

4. Electrical Specifications:
Characteristic Impedance: 75 Ohm± 3 Ohm
Nominal Velocity of Propagation: 85%
Nominal Capacitance: 16.2 pF/ft
Return Loss: 20dB min (5-2250 MHz)


5. Attenuation Performance [@68 ° F. (20 ° C)]
Frequency(MHz) Maximum (dB/100ft) Maximum (dB/100m)



6. Main products:

1) RG series Coaxial Cable: Rg58, rg59, RG6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg213, rg214, rg316, rg402, etc.;
2) JIS series Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, 3D-FB, 5D-FB, 8D-FB, 10D-FB, 12D-FB, etc.;
3) Vatc series Coaxial Cable: 17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8;
4) TRUNK Cable: P3 412, 500, 540, 625, 750, 850;
5) LMR SERIES: LMR200, LMR400, LMR600;
6) Network Cables: LAN Cable CAT3, LAN Cable CAT5, LAN Cable CAT5e, LAN Cable CAT6, LAN Cable CAT7;
7) Combined Cable: Siamese Cables: RG59+2C, RG6+LAN cable, RGB5C, RGB6/4C, BT3002.
Note: If the specification is not you need, please tell me and I will offer you price according your requirements.


7. Contact
Mr. Leo
Hangzhou Hongfeng Cable Co., Ltd.
www.hf-cable.com
Tel: +86-571-58615552
Fax: +86-571-63816227
MB: +86-18268847560

Attenuation Performance [@68 ° F. (20 ° C)]
Frequency(MHz)	Maximum (dB/100ft)	Maximum (dB/100m)
5	0.86	2.82
55	1.95	6.39
211	3.59	11.77
250	4.00	13.11
300	4.27	14.00
350	4.64	15.21
400	4.88	16.00
450	5.30	17.38
500	5.60	18.36
550	5.90	19.34
600	6.05	19.84
750	6.96	22.82
865	7.50	24.59
1000	8.09	26.52
