CCTV Female Connector BNC with Gasket and Screw Nut (CT103)

Name: CCTV Female Connector BNC with Gasket and Screw Nut (CT103)
Brand: all-electronics-online.com
SKU: 786861625
Availability: InStock
Rating: 4.3 (20 reviews)

Price:	US $ 0.05-0.15/Piece
Min Order:	2000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CT103
Connector Type:	BNC Connector
Body:	Zinc Alloy, Nickel Plated
Center Pin:	Copper, Gold Plated
Boot:	Zinc Alloy, Nickel Plated
Net Weight:	4G/Piece
Type:	Generally Coaxial Connector
Application:	Connector
Brand:	Chinasky

Product Description

CCTV Female Connector BNC with Gasket and Screw Nut (CT103)

Description:
CCTV BNC Female Connector

Material:
Body:zinc alloy, nickel plated
Center pin:copper, gold plated
Boot:rubber
Net Weight: 4g/piece

Features:

CCTV Female Connector BNC with Gasket and Screw Nut (CT103)
Connectors	BNC Female
Material	Zinc Alloy + copper
Temperature range	- 40~ +155 degrees
Insulation resistance	≥5000MΩ
Character impedance	BNC-50Ω;
Frequency range	0~3GHZ
Disengage force	≥0.6N
Contact resistance	center conductor≤1.5mΩ; outer conductor≤1mΩ
Durability	≥ 500
Net Weight	4g/piece

Application:
CCTV Accessories, cctv system, cctv Security, cctv coaxial cable installation, CCTV surveillance accessories
The BNC connector (Bayonet Nut Connector) is a miniature quick connect/disconnect RF connector used for coaxial cable. It features two bayonet lugs on the female connector; mating is achieved with only a quarter turn of the coupling nut. BNCs are ideally suited for cable termination for miniature-to-subminiature coaxial cable (e.g., RG-58, 59, to RG-179, RG-316).
We often use BNC cable to transmit audio and video signal in monitors and audio equipments in the up-markets.

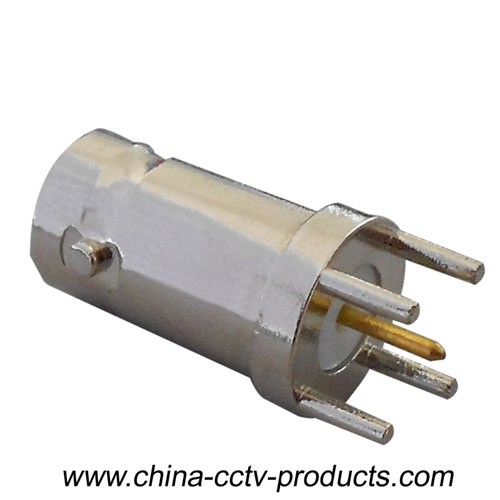

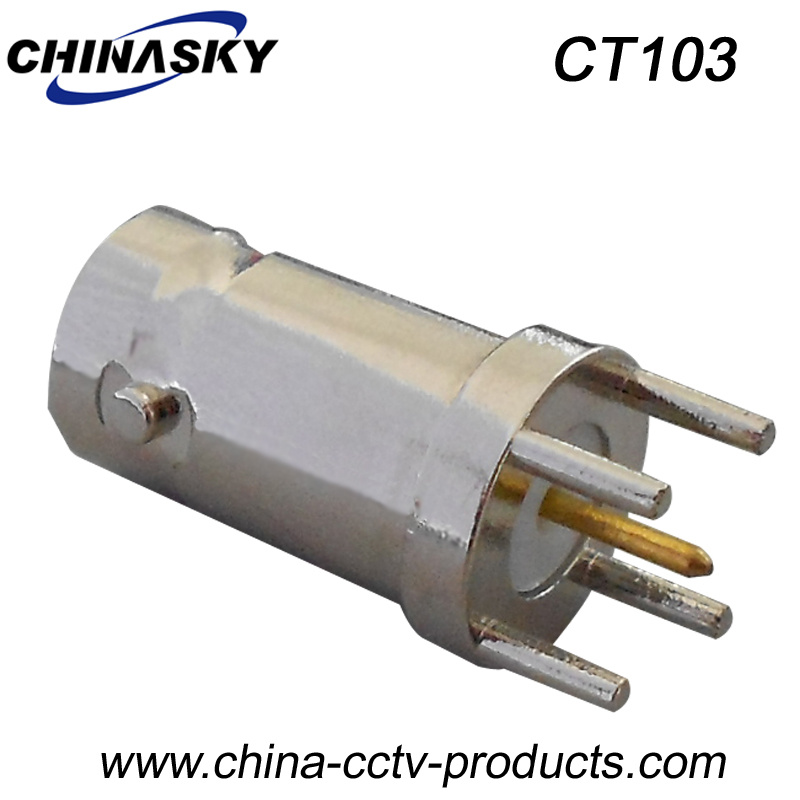

Photos of CCTV Female Connector BNC with Gasket and Screw Nut (CT103)
