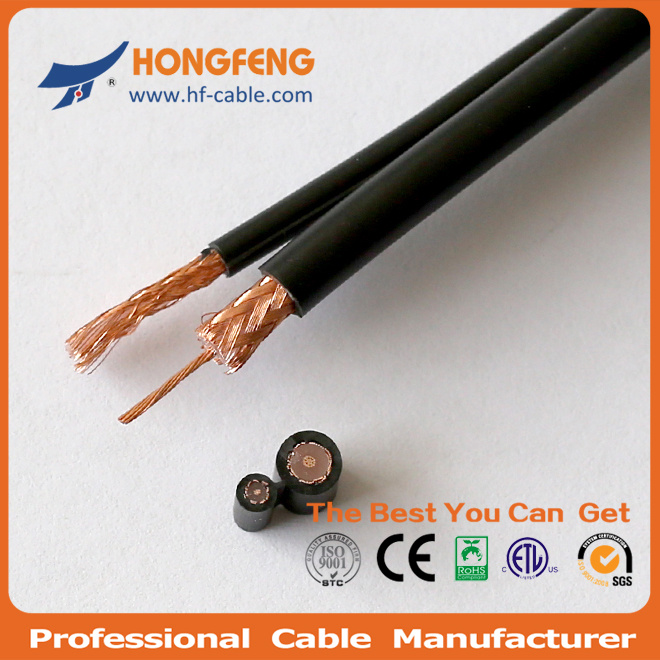

CCTV HD Cvi Camera Cable Rg59

Prod Model:	RG59 siamese
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Impedance:	75 Ohm
Certificate:	ISO9001, Cl2/CATV/Cm UL
Braid Shied Material:	CCA, Cu 90%
Inner Conductor:	CCS, CCA, Cu
Inner Conductor Diameter:	0.81mm
Dielectric:	3.66mm
DC Power Cable:	7*0.37mm CCA
Jacket Diameter:	6.1mm + 3.8mm
Jacket:	PVC
Jacket Color:	Black/White/Color
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	ETL
Type:	Coaxial Cable

Product Description

1. RG59 Specifications:
1) Inner Conductor: CCS, CCA, CU
2) Dielectric: Foam PE or Solid PE
3) Al Foil: Bonded, Non-bonded, Single, Double
4) Braiding Wire Material: Cu, Al-Mg, TC
5) Braiding Wire Diameter: 0.12mm, 0.15mm, 0.16mm
6) Braiding Net: 48, 64, 72, 80, 96, 128 and more
7) Coverage: 40%, 50%, 60%, 80%, 90% and more
8) PVC Degree: 60, 65, 68, 70, 75
9) Jacket: PE or PVC
10) OEM and Customer's designation are welcome

Such as: 0.81mm B. C Conductor; Foamed PE Dielectric; Bonded Al Foil& 64/0.12mm Al braid; 6.1 PVC jacket white

2. Package:
1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.


Main products:
1) RG series Coaxial Cable: Rg59, RG6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg179, rg213, rg214, rg316, rg393, rg402, etc.;

2) JIS series Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, 3D-FB, 5D-FB, 8D-FB, 10D-FB, etc.;

3) Vatc series Coaxial Cable: 17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8;

4) TRUNK Cable: P3 412, 500, 540, 625, 750, 850;

5) LMR SERIES: LMR200, LMR400, LMR600;

6) Network Cables: LAN Cable CAT3, LAN Cable CAT5, LAN Cable CAT5e, LAN Cable CAT6, LAN Cable CAT7;

7) Combined Cable: Siamese Cables: RG59+2C, RG6+LAN cable, RGB5CRG59, BT3002.


Contact:
Leo
Tel: +86-571-58615536
Fax: +86-571-63816227
MB: +86-18268847560

Data	RG59		RG59-Tri		RG59-Quad
Impedance(ohm)	75± 3		75± 3		75± 3
Capacitance(pF/m)	52± 2		52± 2		52± 2
Velocity Ratio	85%		85%		85%
Insulation Resistance(MΩ /km)	5000		5000		5000
Return Loss(dB)
1-1000MHz	≥ 23dB		≥ 23dB		≥ 23dB
1000-3000MHz	≥ 20dB		≥ 20dB		≥ 20dB
Attenuation[@20° C68° F]
Frequency(MHz)	5        50          200        400        800        1000        1350        1750        2150        3000
Nom Value(dB/100m)	1.7      5.2      10.2      14.8      22.5            25            30.5          33.5        37.5          46.5
Screening attenuation
1-1000MHz	≥ 90dB		≥ 100dB		≥ 110dB
