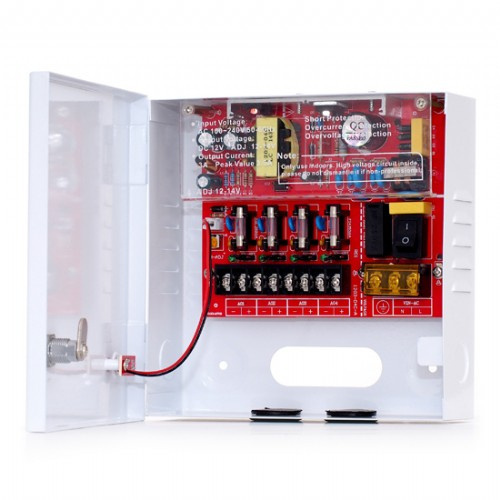

CCTV Power Supply Box 4 Channel 3.0A

Name: CCTV Power Supply Box 4 Channel 3.0A
Brand: all-electronics-online.com
SKU: 609626755
Availability: InStock
Rating: 4.6 (123 reviews)

Price:	US $ 11.5-13/Piece
Trade Terms:	FOB,EXW,others
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RX-1203-04C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:	1 Year
Input Voltage:	Full Range
Connection Mode:	Parallel Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Certification:	CE
Output Type:	4 Channel
Output Power:	36W
Brand:	OEM

Product Description

This Unit CCTV Power Supply Box 4 CH 3.0A 12V DC 36W for Camera.4Channel 3.0A 12V DC and 36W CCTV power supply for camera.

1.For 12VDC individually fused output.
2.Circuit Short protection.
3.Over-load protection.
4.AC power LED indicator.
5.Individual LED for each output.
6.Power ON/OFF switch.
7.Unit maintains camera synchronization.
8.Easy installation saves time and eliminates costly labor.
9.100% full load burn-in test.
10.Spare fuses included.

Specification
Input Voltage	AC90-264V
Input Voltage Frequency	50/60Hz
Output Specification
Output Voltage	12 VDC
Total Output Current	3 A
Total Outputs	36W
Fuse Type	Ceramic or Glass Fuse are optional
Fuse Rating	0.5 Amps / 250VAC,1Amps/250VAC
Protection
General Protection	Each output has individual fuse and LED indicator, when problem occurs,only affect the individual output, other outputs still working
Circuit Short Protection	When short condition occurs, individual fuse will open the circuit,when condition removed, replacing another new fuse will back to close.
High Voltage Protection	When high voltage occurs, the surge protection will be hit through to protect the connected device
Over Current protection	When over current occurs, the power supply will automatically switch toself-protection status, when condition removed, then switch back to normal
Different Currents output	Multiple and different Currents output for different cameras
Feature	Power ON/OFF switch;Spare fuses included
	Unit maintains camera synchronization
	Easy installation saves time and eliminates costly labor
Application
CCTV	Camera, PTZ, IR Illuminators, Video Process Equipment, etc.
Access Control	Reader, Lock, Panel, etc.
