| Prod Model: |
CT5078S/RG6 |
| Connector Type: |
BNC Connector |
| Connection: |
Compression |
| Body: |
Zinc Alloy, Nickel Plated |
| Center Pin: |
Copper, Gold Plated |
| Net Weight: |
14G/Piece |
| Applications: |
CCTV Surveillance System |
| Type: |
Generally Coaxial Connector |
| Application: |
Connectors |
| Brand: |
Chinasky |
Product Description

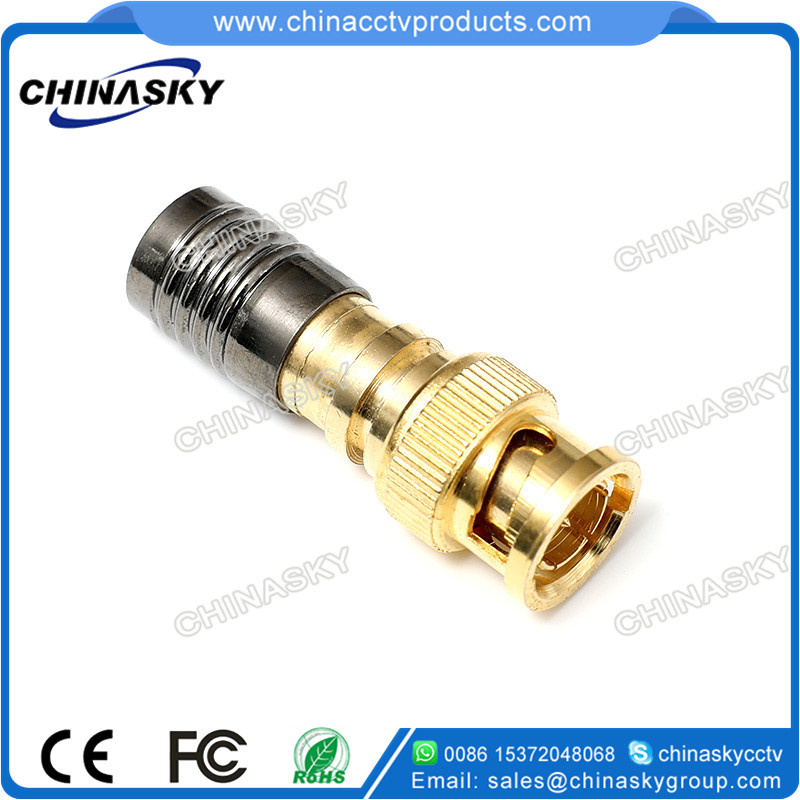

Waterproof Male Compression CCTV BNC Adapter for RG6 Cable (CT5078S/RG6)
Description:
Water-proof BNC Male Compression Connector for RG6 Cable
The BNC RG6 Compression Connector for Coax features 360-degree true radial compression.
Material:
Body-zinc alloy, nickel plated
Center pin-copper, gold plated
Net Weight: 14g/piece
Features:
| Waterproof Male Compression CCTV BNC Adapter for RG6 Cable (CT5078S/RG6) |
| Connectors | Male BNC |
| Material | Zinc Alloy + copper |
| Temperature range | - 40~ +155 degrees |
| Insulation resistance | ≥5000MΩ |
| Character impedance | BNC-50Ω; |
| Frequency range | 0~3GHZ |
| Disengage force | ≥0.6N |
| Contact resistance | center conductor≤1.5mΩ; outer conductor≤1mΩ |
| Durability | ≥ 500 |
| Net Weight | 14g/piece |
Application:
CCTV Accessories, cctv system, cctv Security, cctv coaxial cable installation, CCTV surveillance accessories, cctv coaxial cable
The BNC connector (Bayonet Nut Connector) is a miniature quick connect/disconnect RF connector used for coaxial cable. It features two bayonet lugs on the female connector; mating is achieved with only a quarter turn of the coupling nut. BNCs are ideally suited for cable termination for miniature-to-subminiature coaxial cable (e.g., RG-58, 59, to RG-179, RG-316).
