NINGGUO CITY SHARE ELECTRONIC CO., LTD. >> CD13 Aluminum Electrolytic Capacitor with Mounting Frame

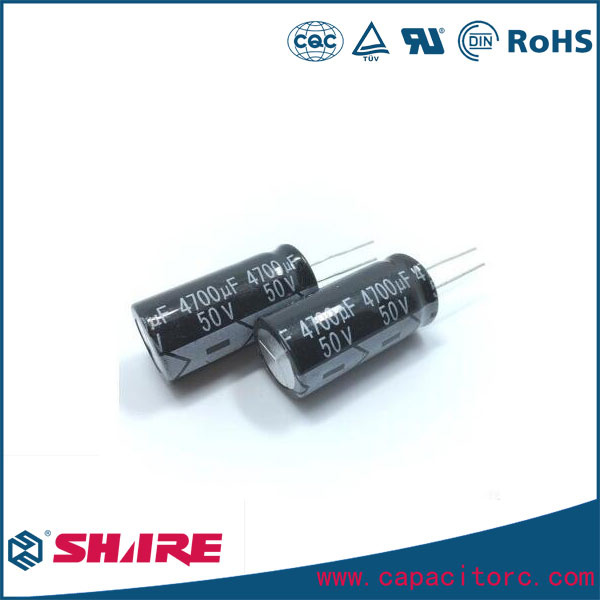

CD13 Aluminum Electrolytic Capacitor with Mounting Frame

CD13 Aluminum Electrolytic Capacitor with Mounting Frame
Price: US $ 5.85-125.8/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: CD13
UL: E357070
Type: Aluminum Electrolytic Capacitor
Application: High Voltage
Package Type: Through Hole
Capacitance: 1000-15000mfd

Product Description

 Aluminum Electrolytic Capacitor

CD13 Aluminum Electrolytic Capacitor Feature:
1.Capacitor Load life 5000 hours at 105ºC.
2.CD13 capacitor long life,higher ripple current than CD92 series.
3.Extremely low impedance.
Aluminum Electrolytic Capacitor Screw type 350V 400V 450V 2200UF  2700UF 3300UF 3900UF 4700UF 5600UF 6800UF 10000UF

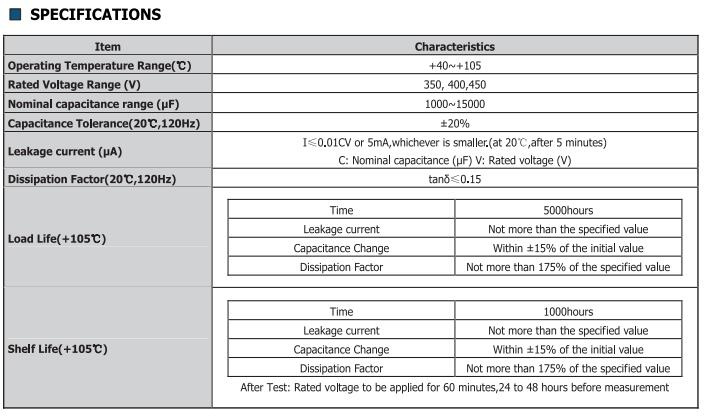

CD13 Capacitor Main Technical Data :

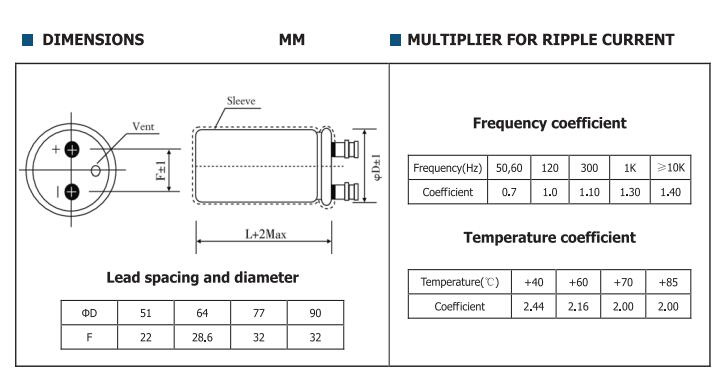

Capacitor Overall And Installation Dimension :

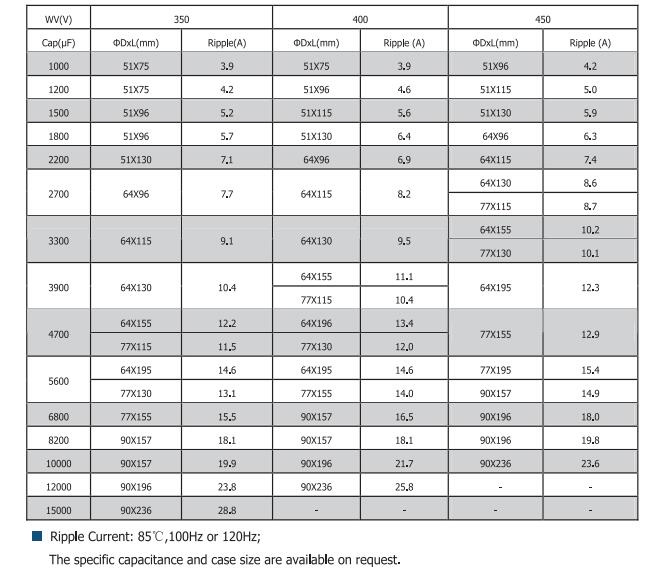

Nominal Capacitance,Rated Voltage And Case Size Table :

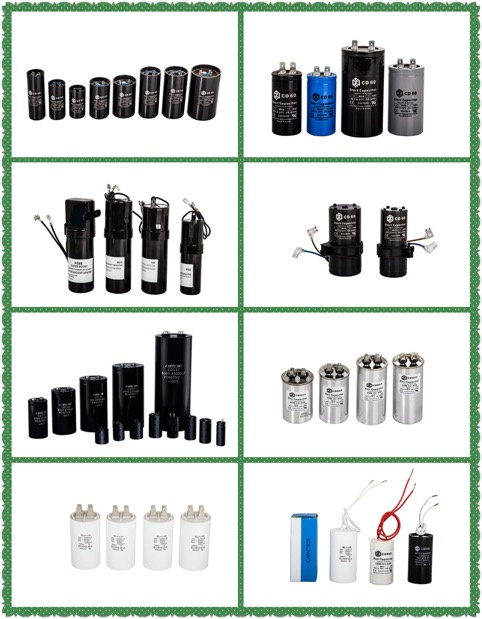

Related  Products :

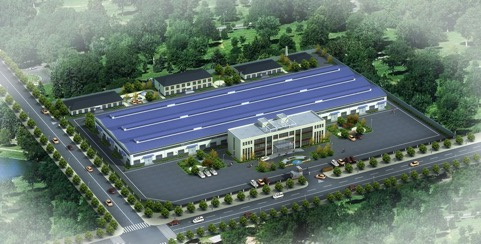

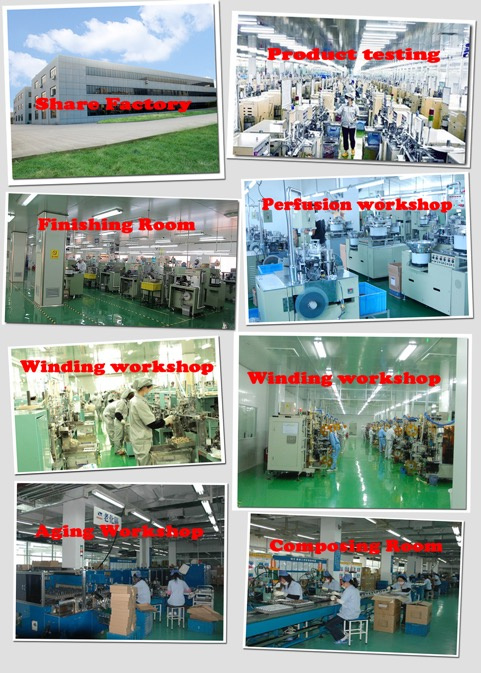

Company Profile :

Company Information :
SHARE ELECTRONIC Company is a world-leading capacitor producer.

Our company was set up in 2008, NingGuo province. Since then, our company has

Been drived by an innovation system which centered on the needs of our

Customers. Such kind of system provid us a sustaining and healthy development

And help us to become one of the largest capacitor producer around the world. We

Has an annual aluminium electrolytic capacitor production capacity of 500 million

And our customers are covered more than 30 countries and regions all over the

World.

Our company has a scientific mangement and strong technical force. We estabished

A quality control system in accordance with the idea that quality is the basis of

Survival.

In the Internet era, we implement two strategic transformation. One is the business

Transformation. It means that we paid more attention on saling service instead of

Saling products. The other is the business mode transformation. We changed our

Business mode from the traditional one to a win-win situation. The orgainzational

Structure of SHARE is changed corresponding to the needs of the market.

It forms the organizational strucuture of flat network with the innovative basis of

Independent marketing units, driving the employees directly facing the market to

Acquire and satisfy the fragment and personnalized demand of the customers.

SHARE is becoming the leading global brand with the innovation through a winwin

Business form in the era of the Internet.
