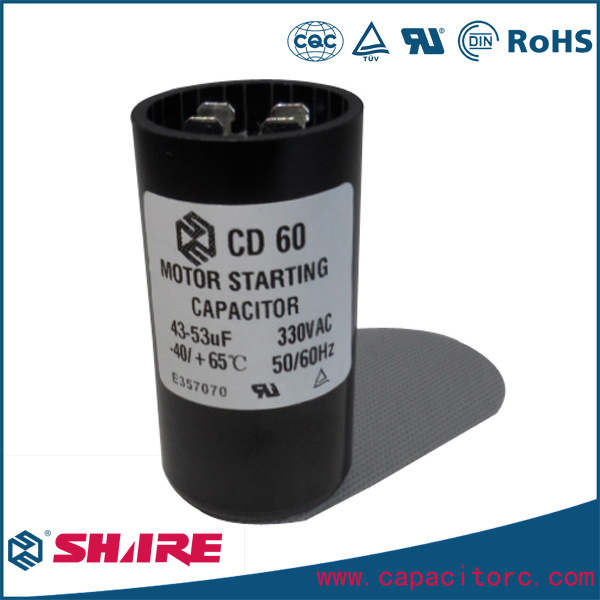

CD60 Start Capacitor for Air Compressor Capacitor

Name: CD60 Start Capacitor for Air Compressor Capacitor
Brand: all-electronics-online.com
SKU: 801802665
Availability: InStock
Rating: 5 (61 reviews)

Price:	US $ 0.1-2.5/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CD60
UL No.:	E357070
Type:	Aluminum Electrolytic Capacitor
Application:	Refrigerator
Package Type:	Through Hole
Capacitance:	20-1600mfd

Product Description

Aluminum Electrolytic Capacitor
Introduction for Capacitor :
CD60B-1 type aluminum electrolytic capacitor sealed in aluminium case, L type,U type lug,250# single terminal or bevel terminal(with M3 soldering screw) for connections, different colours of PVC sleeve insulated for buyer selecting.The production can be designed and made according to our customer's special desire.

Main Technical Data for Capacitor :

Ambient Temperature(T)	-40~+65ºC
Rated Voltage Range(UR)	110~330VAC
Nominal Capacitance Range(CR)	20~1600μF
Permit Capacitance Tolerance(Δ C)	0~+15%
Dissipation Factor(tg δ)	tg δ< 0.10 tg δ< 0.15 (20ºC,100Hz)
Accelerated Life Test	+55ºC,110~165VAC,1 second on,59 seconds off,After 30000 starts; +55ºC,220~330VAC,1 second on,59 seconds off,After 15000 starts; Capacitance vibration rate:Within ±15% from the initial test data; Dissipation Factor:≤0.20
T-T(VAC)	Apply 1.2 times working voltage for 2 seconds,non break-down.
T-C(VAC)	2000VAC 10 seconds non break-down

Nominal Capacitance,Rated Voltage And Case Size Table :

UR(VAC) D*L(mm) CR(uF)	110	125	160	220	250	300	330
50	34*60	34*60	34*70	34*80	34*80	34*80	42*80
75	34*60	34*70	34*70	34*80	42*80	42*80	42*80
100	34*70	34*70	34*80	34*80	42*80	42*80	45*90
150	34*70	34*80	34*80	42*80	42*80	45*90	45*90
200	34*80	34*80	42*80	42*80	45*90	45*90	45*100
250	34*80	34*80	42*80	45*90	45*90	45*100	45*100
300	42*80	42*80	45*90	45*90	50*100	50*100	50*100
350	42*80	42*80	45*90	45*100	50*100	50*110	50*110
400	45*90	45*90	45*100	45*100	50*100	50*110	50*110
500	45*90	45*90	45*100	50*100	50*100	50*110	50*110
600	45*90	45*100	50*100	50*100	50*110	50*110
800	50*90	50*100	50*110	50*110	50*110
1000	50*100	50*110	50*110	50*110
1200	50*110	50*110	50*110
