CD60b Electrolytic Motor Start Capacitor, Motor Parts

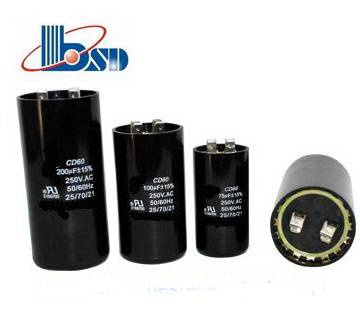

Name: CD60b Electrolytic Motor Start Capacitor, Motor Parts
Brand: all-electronics-online.com
SKU: 810360205
Availability: InStock
Rating: 4.9 (89 reviews)

Price:	US $ 0.35-4.25/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CD60B
Rated Voltage:	110-330VAC
Capacitance Range:	21-1536UF
Sevice:	OEM and ODM
Temperature:	-40-65
Standard:	According to ANSI/Eia-463 -a
Type:	Aluminum Electrolytic Capacitor
Application:	Air Conditioner
Package Type:	Surface Mount
Capacitance:	21-1536UF

Product Description

Introduction:
1.CD60 type aluminum electrolytic capacitor is made according to American ANSI / EIA - 463-A standard, a new device developed,bakelite case, high class insulating, high strength, uneasy broken and good sealed. This device is of the good performance, easily for use, reliable and long in service life as well as the high and stable quality.

2.CD60 type aluminum electrolytic capacitor is suitable for use in single phase ac motors with frequency of 50hz - 60hz, voltage 110VAC - 330VAC to get high rotary torque at low starting current and also be widely for use in the high-tech territory.

Specifications
1.Used widely in motors,aircompressor,water pump etc
2.High performance & Long life Capacitor.
3. work well even in high tem

Packaging & Delivery
Packaging Details: Standard export packing
Delivery Detail: In 20days

Environment Temperature	-40~+65ºC
Rated Voltage(UR)	110~330VAC
Capacitance Range(CR)	21~1536μF
Capacitance Tolerance	0~+20%
Dissipation Factor(tg δ)	Tg δ< 0.10 tg δ< 0.15 (20ºC,100Hz)
Load Life	According to the difference working voltage and capacitance,alternation 0.5 - 4 minute turn on 1 time for second, 12500 ~ 50000 times. According to the ANSI/ EIA-463-A standard.
Surge Voltage between lugs	Applying 1.25 times rated voltage for 2 seconds
Surge Voltage between lugs and case	2000VAC 10 seconds non-broken down

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
