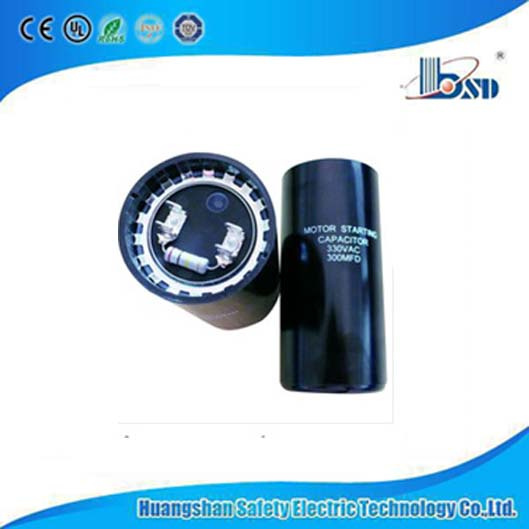

CD60b Type Motor Start Capacitor, Electrolytic Capacitor

Name: CD60b Type Motor Start Capacitor, Electrolytic Capacitor
Brand: all-electronics-online.com
SKU: 810184575
Availability: InStock
Rating: 4.5 (78 reviews)

Price:	US $ 0.35-4.25/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CD60b
Rated Voltage:	110-330VAC
Capacitance Range:	21-1536UF
OEM & ODM Sevice:	Promt Delivery Time and Good Service
Temperature:	-40-65
Standard:	According to ANSI/Eia-463 -a
Type:	Aluminum Electrolytic Capacitor
Application:	Air Conditioner
Package Type:	Surface Mount
Capacitance:	21-1536UF

Product Description

Environment Temperature	-40~+65ºC
Rated Voltage(UR)	110~330VAC
Capacitance Range(CR)	21~1536μF
Capacitance Tolerance	0~+20%
Dissipation Factor(tg δ)	Tg δ< 0.10 tg δ< 0.15 (20ºC,100Hz)
Load Life	According to the difference working voltage and capacitance,alternation 0.5 - 4 minute turn on 1 time for second, 12500 ~ 50000 times. According to the ANSI/ EIA-463-A standard.
Surge Voltage between lugs	Applying 1.25 times rated voltage for 2 seconds
Surge Voltage between lugs and case	2000VAC 10 seconds non-broken down
