Cdd M18 Diffuse Reflection Photocell Swiitch Sensor

Name: Cdd M18 Diffuse Reflection Photocell Swiitch Sensor
Brand: all-electronics-online.com
SKU: 840371225
Availability: InStock
Rating: 4.7 (74 reviews)

Price:	US $ 2-10piece/pieces
Min Order:	1piece/pieces
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CDD

Product Description

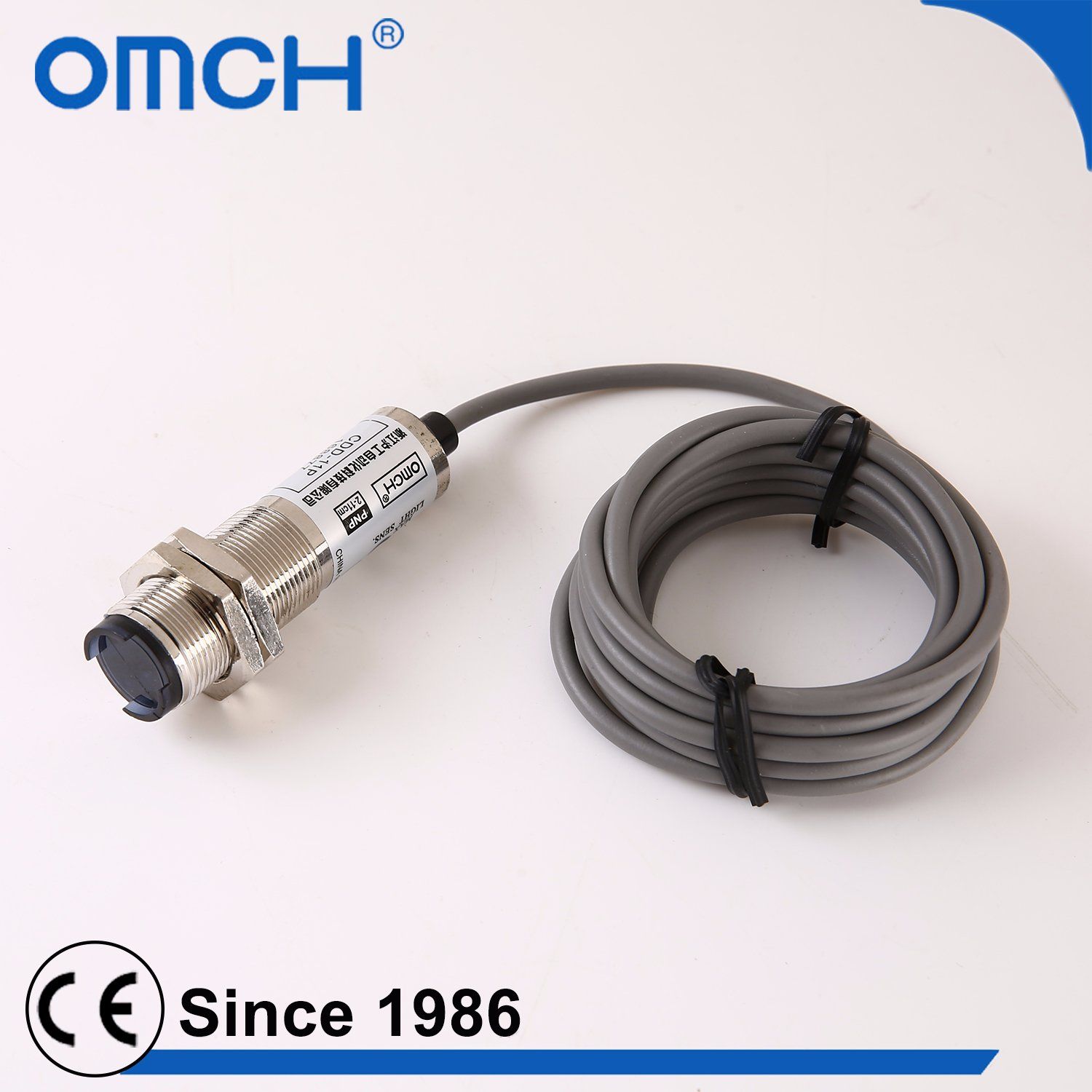

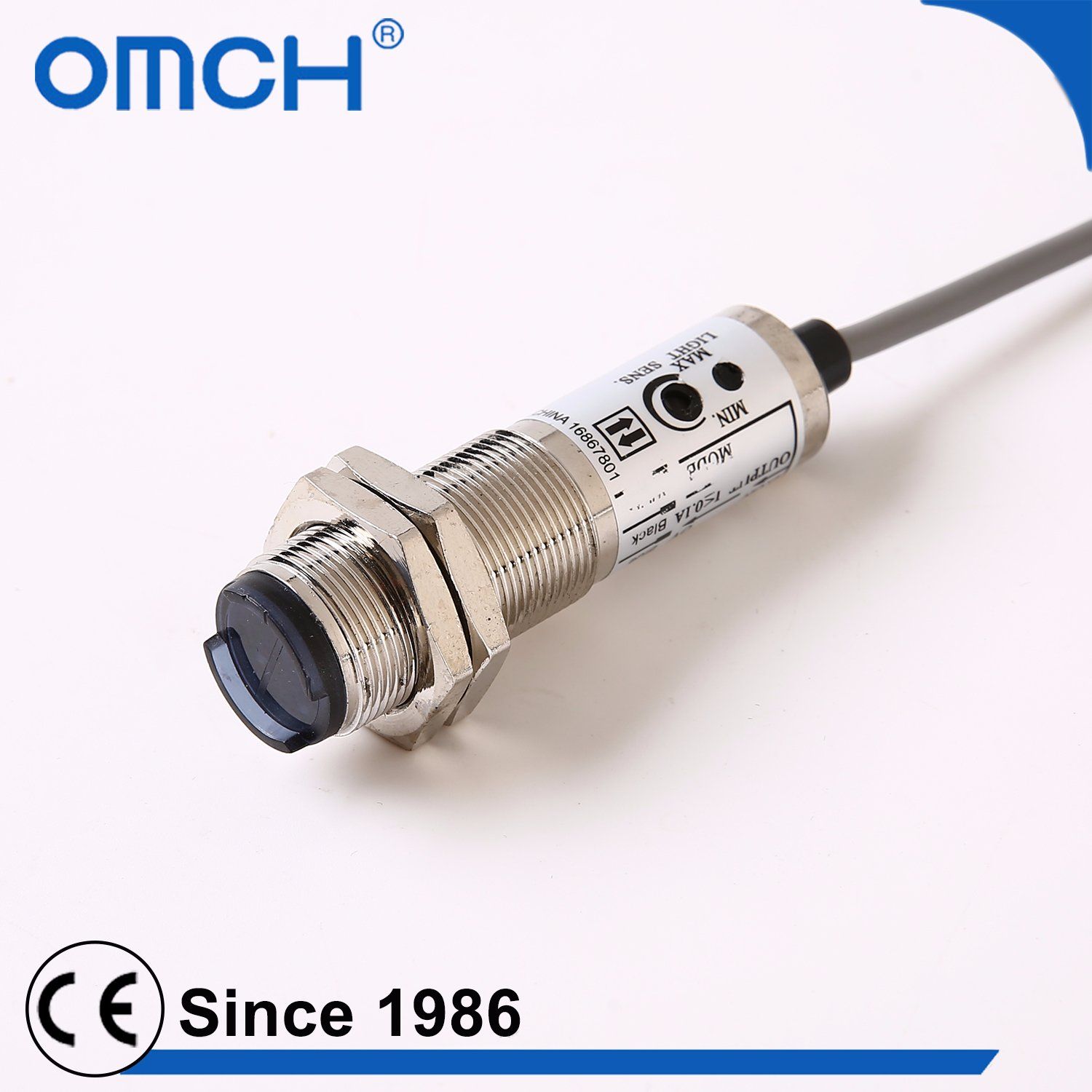

CDD M18 Diffuse Reflection Photocell Swiitch Sensor

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature

We sincerely welcome agents from all over the world

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC

Newly added current over-load protection

Long service life, high reliability and strong resistance property to environment

Red LED indicates that it's available to detect the sensor operating state

Newly added metal housing to improve the installation intensity

Countermeasure to improve the housing intensity and to solve disconnection

IP65 protection structure (IEC specification)

Read the "Matters needing attention" of the Product Instruction before use

Type and Specification
We sincerely welcome agents from all over the world

Dimension			M18
Detection method			Diffuse type
Type	NPN	NO+NC	CDD-11N(40N)
	PNP	NO+NC	CDD-11P(40P)
Detection range			10-30cm ± 10%
Detection target			opaque object
Detection range regulation			sensitivity adjuster
Respnose time			1ms
Power supply			DC 6-36V
Current output			<300mA
Ambient temperature			-25~65
Production structure			IP65
