Cdf Series Three Phase Electric Motor (Cast Iron) Induction Motor Asynchronous Motor

Name: Cdf Series Three Phase Electric Motor (Cast Iron) Induction Motor Asynchronous Motor
Brand: all-electronics-online.com
SKU: 693303615
Availability: InStock
Rating: 4.3 (85 reviews)

Price:	US $ 96.00/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	CDF series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Range:	0.18kw~315kw
Color:	Optional
Function:	Driving
Number Of Stator:	Three-Phase
Number Of Poles:	2-8
Brand:	Kaijieli
Certification:	CE

Product Description

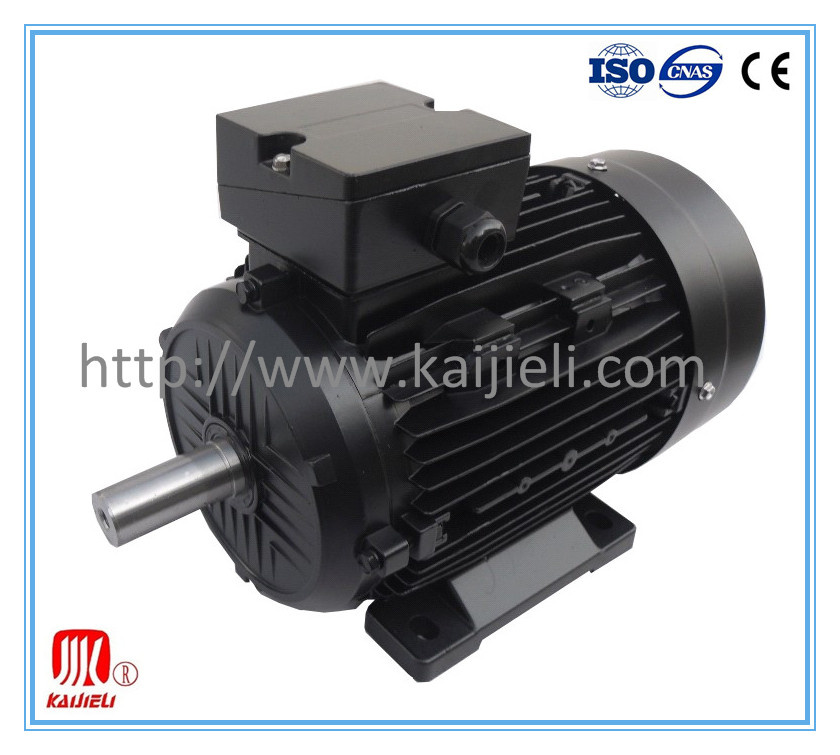

CDF Series Three Phase Electric Motor.
CDF series motor is 3 phase squirrel cage asynchronous induction motor, it
Has outstanding perfomance of high efficiency, energy saving and reliable operation, etc...
With the unique configuration design, it is more close to the style of European market.
The end shield with the radiating rib makes the appearance good looking and improve the heat dissipation.
The top terminal box can totate all round, as well as left or right side mounted, to meet the different requirements of our customers.
It has special fan and wind path design make it low vibration and low noise.
It use cold-rolled silicon steel as its magnetic material, the insulating mererial and insulating process are much improved.

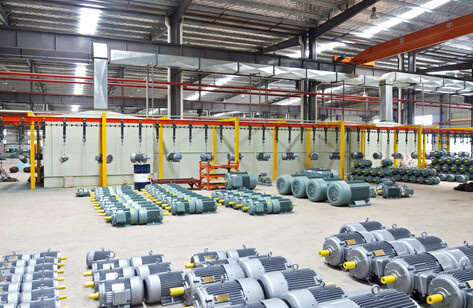

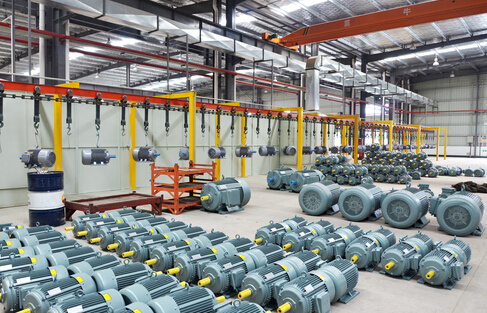

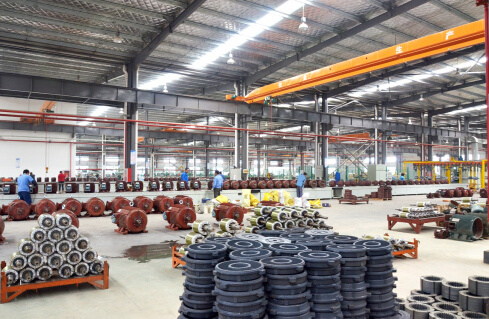

Factory Office, Facilities, Equipments and Workshop Overview

TECHNICAL DATA
Housing metrial:	Cast Iron
Output range:	0.18KW~315KW
Pole:	2-4-6
Terminal Box:	Top/Side Mounted
Protection Class:	IP55
Insulation Class:	F/H
Bearing:	SKF/NSK
Frequency:	50/60HZ
Efficiency Standard:	EFF2, EFF1

Operating Conditions
Ambient temperature:	-15º C~40º C
Altitude:	not exceed 1000m
Rated voltage:	380V 400V(at buyer' s option)
Rated frequency:	50HZ 60HZ(at buyer' s option)
Cooling method:	IC 411
Duty:	S1

Kaigong Electric (Suzhou) Co., Ltd. professionally manufactures electric motors, alternators, generating sets and pumps, including Y/Y2/CDF/SDF series of normal motors and IE2, EFF2, EFF1 series of high efficiency motors, and the capacity is up to 350, 000 units (1, 500, 000kW) one year. For generators we manufacture TWG/TWGII series brushless generators, ST/STC alternators etc. It is a Sino-British joint venture enterprise, locating in Suzhou of China, with experiences of electrical machine manufacture for over 50 years. The Chinese shareholder is a subsidiary company of Kaijieli Group and the leading enterprise among the Group's producers in manufacturing sector.

We are top ten of the machinery industry, our workshops are distributed in Suzhou, Kunming and Fuan, which cover the areas of over 100, 000 square meters. We possesses the advanced producing and testing equipments, such as CNC vertical lathes, CNC boring machines, electrical warming equipments at medium frequency, VPI equipments, automatic spray-painting line and testing system, as well as the CAD system for design.

Our Kaijieli Brand motors received 9 national patents and certificates of "CCC", "CE", "TUV" and "GS" successively.

Our company always keeps the principle of "high quality and low cost". Its products are exported to more than 80 countries and regions including Europe, American, Asia, Australia and Africa and the turnover exceeds 80 million US Dollar. Our "Kaijieli" brand has been registered in 120 countries and regions till now. Thanks to the excellent quality, Kaijieli products are gradually recognized and used as the top-priority products at home and abroad.

We warmly welcome you to join us as the allies and partners, as Kaijieli not only belongs to us, but also to you; Not only to China, but also to the whole world.
