| Prod Model: |
EH5000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| AC Nominal: |
220V,230V,240V,208VAC |
| Output Voltage: |
European Standard 1 Phase, Us Standard 110V+110V |
| Output Isolation: |
Noise Filter,Harmonic Distortion Suppression, |
| Technology: |
True Double Conversion |
| Wide Input Range: |
110-300VAC |
| Communication Port: |
Snmp/RS232 |
| Protection-1: |
Over Load, Over temperature. Short Cirsuit |
| Type-1: |
Standard Type, Long Run Type Optional |
| Size: |
192*348*460 |
| Weight: |
10-30kgs |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Brand: |
Must |
Product Description

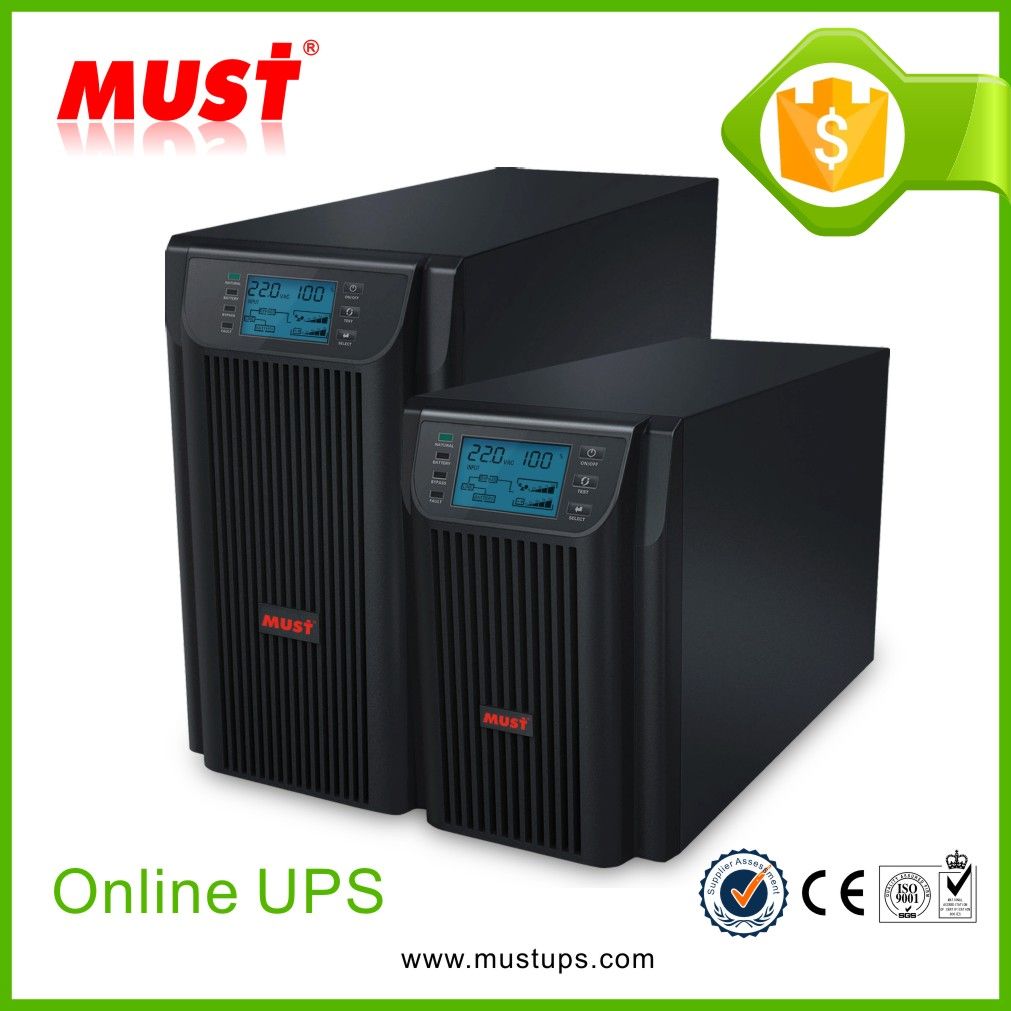

Uninterruptible power supply 10kva online high frequency design with isolation transformer
Feature:
1. Galvanic isolation transformer-base design for secure power protection: Safety
Complete isolate output pure sine wave power from input ac source as there might be noise interference,
Harmonic distortion;
Complete isolate output neutral from ground line/ups chassis(N-G voltage not exceed 1v) in case of
Electric shock;
Optional transformer-split output wiring 110v+110v for load equipment made in usa.
2. Reliability from full digitalized dsp-base micro-processor controller;
3. Stability from double convertion structure;
4. High input power factor from Power factor correction ac-dc rectifier: Better ac-ultilization;
5. High efficiency and power-saving advantage from full-dsp base dc-ac igbt inverter and advanced dsp-
Tech digital control circuit;
6. Thorough ups communication, power management interface: Standard RS232, optional USB, AS400,
SNMP network monitor management protocol;
7. Flexible on-demand power expansion, hot-redundancy N+X parallel redundant ups design, max 3
Units;
8. Comply to European medical equipment industrial galvanic isolation standard, EMC compliance,
EN compliance.
| pure sine wave ups | 1 kva ups |
| 2 kva ups | 3 kva ups |
| rated power | 800 W |
| 1600 W | 2400 W |
| INPUT |
| Voltage Range (145-275vac) | Low Line Transfer | 160 VAC / 140 VAC / 120 VAC / 110 VAC ± 5 % or |
| 80 VAC / 70 VAC / 60 VAC / 50 VAC ± 5 % |
| (based on load percentage 100%-80%/80%-70%/70%-60%/60%-0) |
| LowLine Comeback | 175 VAC ± 5 % or 85 VAC ± 5 % |
| High Line Transfer | 300 VAC ± 5 % or 150 VAC ± 5 % |
| High Line | 290 VAC ± 5 VAC or 143 VAC ± 3 VAC |
| Comeback |
| Frequency Range | 46-54Hz |
| Phase | Single phase with neutral ground |
| Power Factor | ≥0.99 with pfc rectifier |
| OUTPUT |
| AC Voltage Regulation (Bat. Mode) | ±1% |
| Frequency Range | 47 ~ 53 Hz or 57 Hz ~ 63 Hz |
| (Synchronized Range) |
| 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz |
| Frequency Range |
|
| (Bat. Mode) |
| Current Crest Ratio | 3:1 |
| Harmonic Distortion | <= 3 % THD (Linear Load) | <= 4 % THD (Linear Load) |
| <= 6 % THD(Non-linear Load) | <= 7 % THD(Non-linear Load) |
| Transfer Time | AC to DC | Zero transfer time ups |
| Inverter to Bypass | 2 ms (Typical) |
| Waveform(Bat. Mode) | Pure Sine Wave ups sine wave ups, online sinusodal ups |
| EFFICIENCY |
| To AC Mode | 85% | 90% |
| To Battery Mode | 83% |
| BATTERY |
| Standard Model | Battery Type | 12 V / 7 AH | 12 V / 9 AH | 12 V / 7 AH | 12 V / 7 AH |
| Numbers | 2 or 3 | 3 | 6 or 8 | 8 |
| Typical Recharge Time | 4 hours recover to 90% capacity |
| Charging Current (max.) | user settable 1amp, 2amp,4amp,6amp |
| Charging Voltage | 13.8vdc each cell ± 1% |
| Long-run Model | Battery Type/Numbers | SLA 36vdc or 96vdc external fixed |
| Charging Current (max.) | 6.0 A |
| Charging Voltage | 13.8vdc each cell ± 1% |
| INDICATORS |
| LCD Panel | UPS status, Load percentage, Battery level, Input/Output voltage, Discharge timer, and Fault conditions |
| ALARM |
| Battery Mode | beeper beeps once every 4 seconds |
| Low Battery | beeper beeps once every 1 second |
| Overload | beeper beeps twice every 1 second |
| Fault | Continuously beeping |
| PHYSICAL |
| Size DXWXH (mm) | 400x145x220 | 460x192x348 |
| OPERATING ENVIRONMENT |
| Humidity | 20-90 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 45dB @ 1 Meter |
| MANAGEMENT |
| Smart RS-232/ optional USB | Supports Windows®98/2000/2003/XP/Vista/2008,Windows®7,Linux,and MAC |
| optional intelligent slot & SNMP | Network monitor and power management tool/protocol |
|
|
|
|
|
|
