CE and RoHs Approval Best Design Split Core Current Transformer

Name: CE and RoHs Approval Best Design Split Core Current Transformer
Brand: all-electronics-online.com
SKU: 772747525
Availability: InStock
Rating: 4.3 (51 reviews)

Price:	US $ 5-20/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CP62
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Case Material:	ABS
Bobbin:	PBT
Construction:	Tie
Frequency:	50-60 Hz
Core Type:	Split
Application:	Power
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Separated Winding Transformer
Certification:	CE,RoHS
Brand:	Chana

Product Description

Product Description
CP(MES) Current Transformers

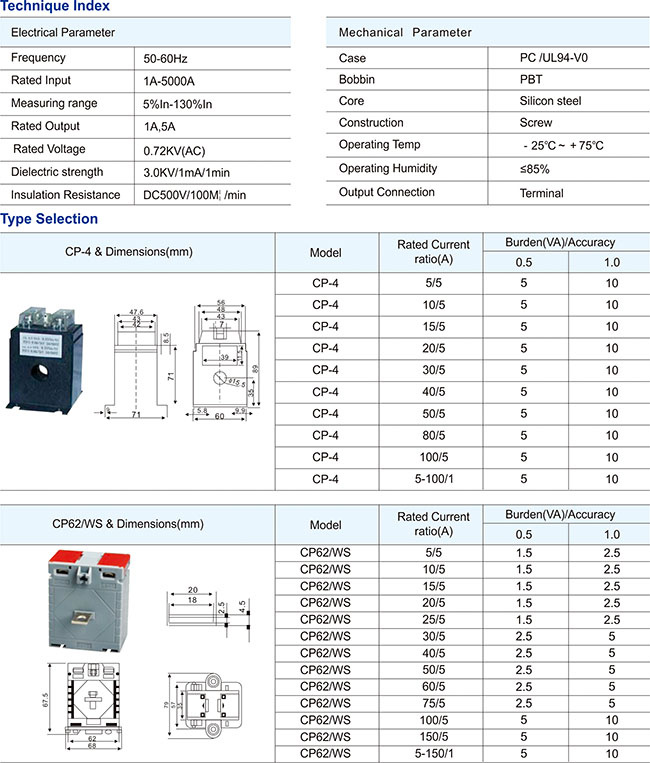

Electrical Parameter
Frequency:50-60Hz
Rated Input:1A-5000A
Measurin range:5%In-130%In
Rated Out put:1A,5A
Rated Voltage 0.72kV(AC)
Dielectric strength:3.0kV/1mA/1min
Insalation resistance:DC500V/100MΩ/min

Mechanical Parameter
Case:PC/UL94-V0
Bobbin: PBT
Core:Silicon Steel
Construction:Srcrew
Operating Temp:-25ºC~+75ºC
Operating Humidity:≤85%
Output Connection:terminal

General:
CP(MES) series current transformer is compact.samller than other models with the current ratio of ther transfoermer is small,clamshell style termail cover is well protected by the second terminal.with related accessories you can use Din rail mounting,a current from 5A to 300A...

Type Selection:

Model	Rated Current ratio(A)	Burden(VA)/Accuracy
Model	Rated Current ratio(A)	0.5	1
CP-4	5/5	5	10
	10/5	5	10
	15/5	5	10
	20/5	5	10
	30/5	5	10
	40/5	5	10
	50/5	5	10
	80/5	5	10
	100/5	5	10
	5-100/1	5	10
CP62/WS	5/5	1.5	2.5
	10/5	1.5	2.5
	15/5	1.5	2.5
	20/5	1.5	2.5
	30/5	2.5	5
	40/5	2.5	5
	50/5	2.5	5
	60/5	2.5	5
	75/5	2.5	5
	80/5	2.5	5
	100/5	5	10
	150/5	5	10
	5-100/1	5	10

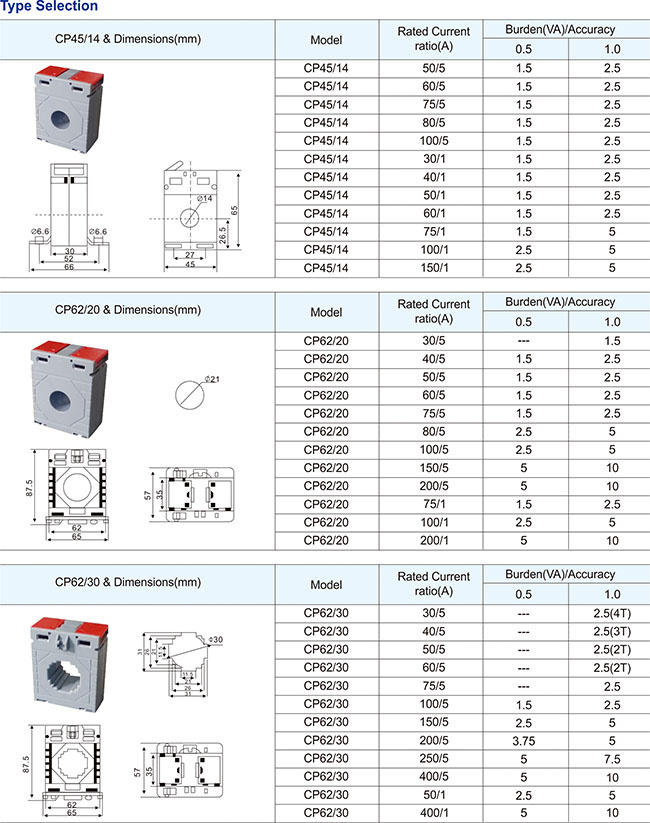

CP45/14	50/5	1.5	2.5
	60/5	1.5	2.5
	75/5	1.5	2.5
	80/5	1.5	2.5
	100/5	1.5	2.5
	30/1	1.5	2.5
	40/1	1.5	2.5
	50/1	1.5	2.5
	60/1	1.5	2.5
	75/1	1.5	5
	100/1	2.5	5
	150/1	2.5	5
CP62/20	30/5	-	1.5
	40/5	1.5	2.5
	50/5	1.5	2.5
	60/5	1.5	2.5
	75/5	1.5	2.5
	80/5	2.5	5
	100/5	2.5	5
	150/5	5	10
	200/5	5	10
	75/1	1.5	2.5
	100/1	2.5	5
	200/1	5	10
CP62/30	30/5		2.5(4T)
	40/5		2.5(3T)
	50/5		2.5(2T)
	60/5		2.5(2T)
	75/5		2.5
	100/5	1.5	2.5
	150/5	2.5	5
	200/5	3.75	5
	250/5	5	7.5
	400/5	5	10
	50/1	2.5	5
	400/1	5	10
CP62/40	60/5		1.5(2T)
	75/5		1.5(2T)
	100/5		1.5
	150/5		2.5
	200/5	1.5	2.5
	250/5	2.5	3.75
	400/5	2.5	5
	500/5	2.5	5
	600/5	5	7.5
	60/1	2.5	5
	250/1	2.5	5
	600/1	5	10
CP74/40	60/5		1.5
	75/5	1.5	2.5
	100/5	1.5	2.5
	150/5	1.5	2.5
	200/5	1.5	5
	250/5	2.5	5
	400/5	5	7.5
	500/5	5	10
	600/5	5	10
	60/1	2.5	5
	250/1	2.5	5
	600/1	5	10
CP74/50	150/5	1.5	2.5
	200/5	2.5	5
	250/5	2.5	5
	400/5	2.5	5
	500/5	2.5	5
	600/5	5	7.5
	800/5	5	7.5
	1000/5	5	10
	500/1	5	10
	800/1	5	10
	1000/1	5	10
CP80/30	30/5		2.5(4T)
	40/5		2.5(2T)
	50/5		2.5(2T)
	60/5		1.5
	75/5		1.5
	100/5		2.5
	150/5	2.5	3.75
	200/5	2.5	5
	250/5	5	5
	400/5	5	10
	50/1	2.5	5
	400/1	5	10
CP83/40	100/5		2.5
	150/5	2.5	5
	200/5	2.5	5
	250/5	2.5	5
	300/5	2.5	5
	400/5	5	7.5
	500/5	5	7.5
	600/5	5	10
	800/5	5	10
	250/1	5	10
	500/1	5	10
	800/1	5	10
CP86/60	400/5	3.75	5
	500/5	5	10
	600/5	5	10
	750/5	10	15
	800/5	10	15
	1000/5	10	15
	1200/5	10	15
	1500/5	10	15
	500/1	5	10
	800/1	5	10
	1000/1	5	15
	1500/1	10	15

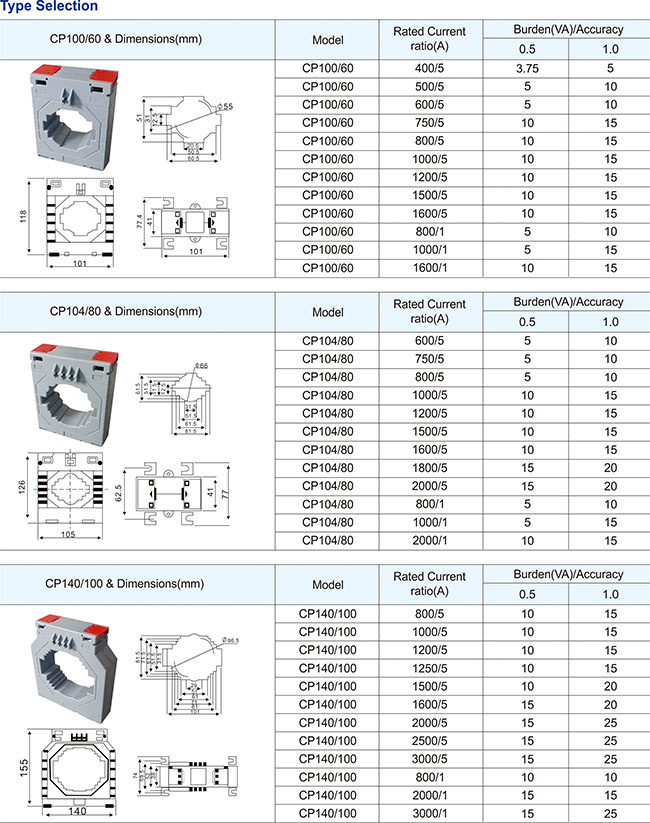

CP100/60	400/5	3.75	5
	500/5	5	10
	600/5	5	10
	750/5	10	15
	800/5	10	15
	1000/5	10	15
	1200/5	10	15
	1500/5	10	15
	1600/5	10	15
	800/1	5	10
	1000/1	5	15
	1600/1	10	15
CP104/80	600/5	5	10
	750/5	5	10
	800/5	5	10
	1000/5	10	15
	1200/5	10	15
	1500/5	10	15
	1600/5	10	15
	1800/5	15	20
	2000/5	15	20
	800/1	5	10
	1000/1	5	15
	2000/1	10	15
CP140/100	800/5	10	15
	1000/5	10	15
	1200/5	10	15
	1500/5	10	20
	1600/5	15	20
	2000/5	15	25
	2500/5	15	25
	3000/5	15	25
	800/1	10	10
	2000/1	15	15
	3000/1	15	25
