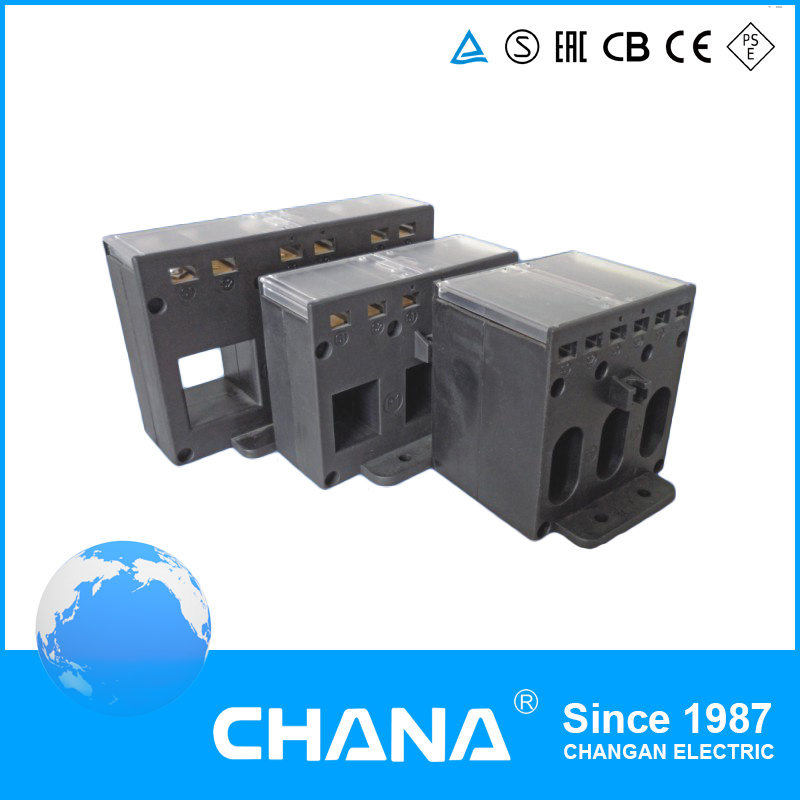

Ce and RoHS Approval Low-Voltage Three Phase Current Transformer

Name: Ce and RoHS Approval Low-Voltage Three Phase Current Transformer
Brand: all-electronics-online.com
SKU: 772725495
Availability: InStock
Rating: 4.4 (23 reviews)

Price:	US $ 6/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SCT-2851
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Case Material:	ABS
Bobbin:	PBT
Construction:	Tie
Frequency:	50-400 Hz
Core Type:	Split
Application:	Power
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Separated Winding Transformer
Certification:	CE,RoHS
Brand:	Chana

Product Description

Product Description
1)Application
Current measurement, monitoring and protection for electrical wiring and
equipment. Current and power measurement for electric mo tors, lighting,
air compressor, heating and ventilation system, air-condition equipment
and automation control system.Current ,power and energymonitoring device.
2)Feature
The structure of the self-locking, safe, easy to install, portable Wide inner
window, allowing clamping of big cables or - bus bars Wide range of sizes
to accommodate all the existing installations.
SCT-2851 series retro-fit (split-core) currenttransformer hasbeen specially
designed to facilitate their installation in new or already existing net works.
They may beinstalled without openingany cableor bus-barcircuit. Aninternal
precision resistor across the secondary winding of the CT provides a low
safe voltage output. It can save time and the installation costs.

Technique Index

Frequency	50-2.5khz
Rated Input	0.5a-630a
Measuring range	10%in-130%in
Rated Output	0.333v
Ratio	0.2%
Dielectric strength	5.0kv/1mA/1min

Case	ABS
Bobbin	PBT
Core	Permalloy
Internal sturcture	Epoxy
Construction	Tie
Output Connection	terminal

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
