Ce and RoHS Approval Modular DIN-Rail Pushbutton Switch Ekpb

Name: Ce and RoHS Approval Modular DIN-Rail Pushbutton Switch Ekpb
Brand: all-electronics-online.com
SKU: 773677155
Availability: InStock
Rating: 4.6 (141 reviews)

Price:	US $ 0.6/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	EKPB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Frequency:	50/60Hz
Max Powe:	0.6W
Rated Voltage:	230VAC
Illumination:	LED
Type:	Normal Open
Usage:	Limit Button
Kind:	Single-pole on-off Switch
Brand:	Chana
Certification:	RoHS

Product Description

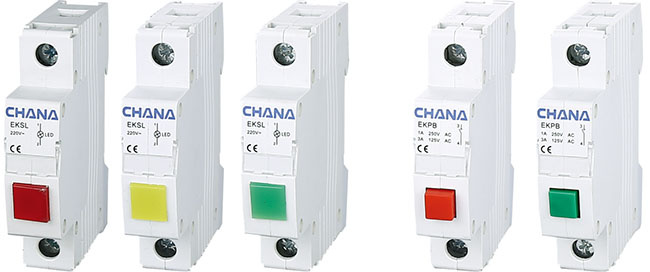

EKSL Modual Signal Lamp

Application
The Modular Signal Lamp is applicable to circuit with rated voltage 230V~
and frequency 50/60Hz for visual indication and signaling.

Construction and Feature
Low service duration, minimum power consumption
Compact design in modular size
Easy installation

Technical Data
Rated voltage:230V AC
Rated frequency:50/60Hz
Colour:red,green,yellow
Connection terminal:pillar terminal with clamp
Connection capacity:rigid conductor 10mm2
Installation:
On symmetrical DIN rail
Panel mounting

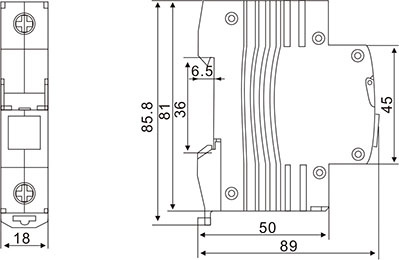

Terminal Connection Height:H=19mm

EKSL signal lamp
Max power:0.6W
IIIumination:LED
Service duration:30,000 hours

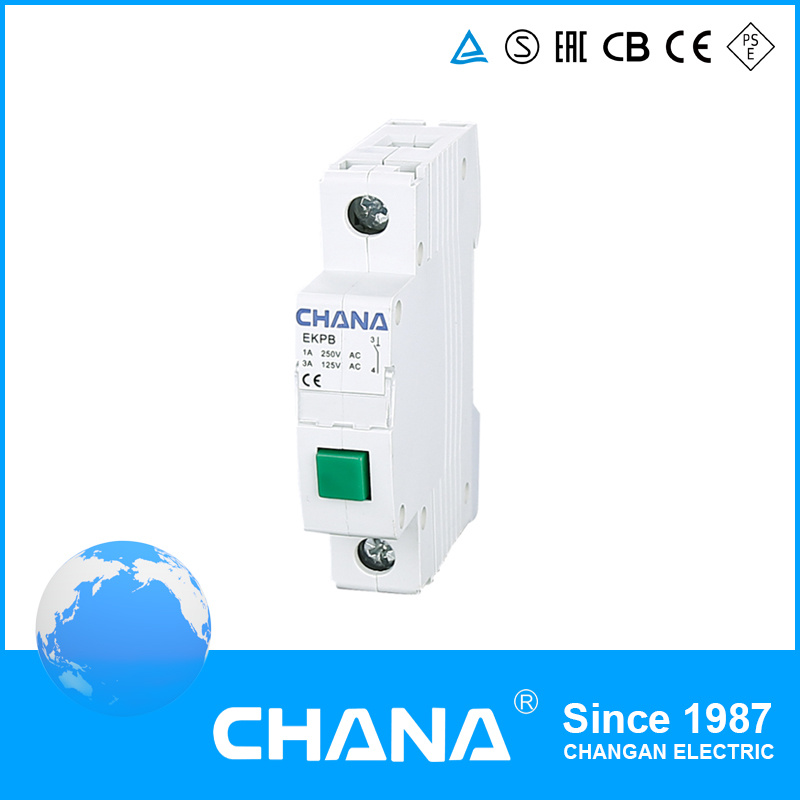

EKPB Modular Pushbutton Switch

Application
The Modular Pushbutton Switch is applicable to circuit with rated voltage
up to 250V~and frequency 50Hz for controlling, signaling and interlocking.

Construction and Feature
Minimum power consumption
Compact design in modular size
Easy installation

Technical Data
Ambient temperature:-25~+40?
Service duration:cycles100,000hours
Installation resistance:50M|
Rated current:3A
Rated voltage:250V
Contact resistance:50M|
