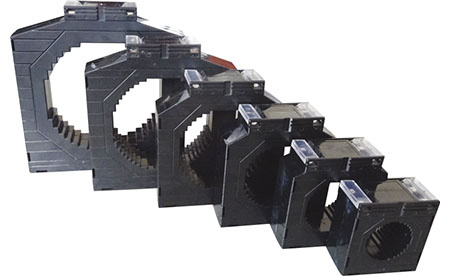

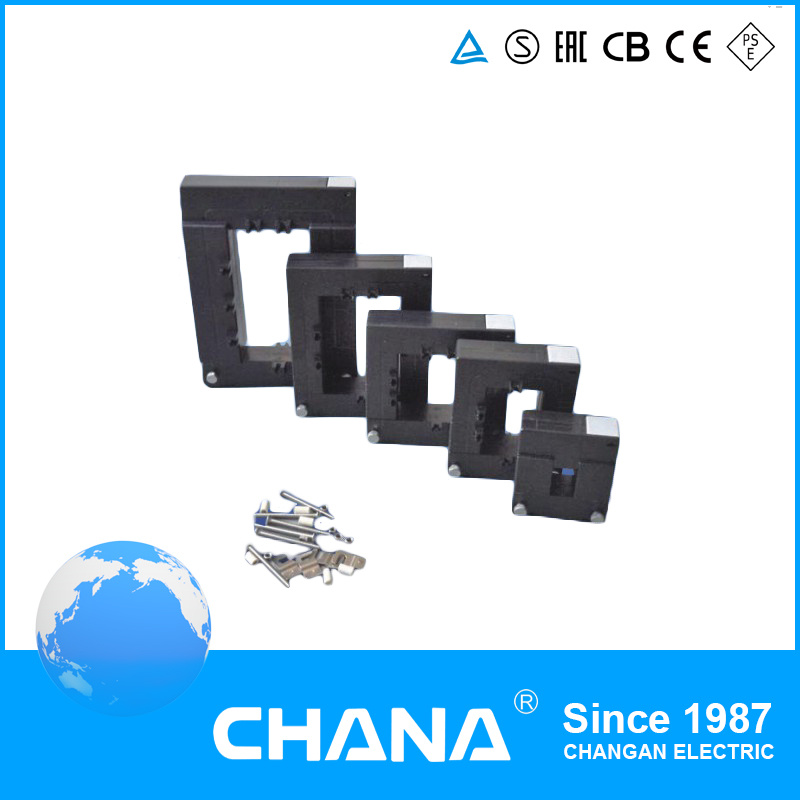

Ce and RoHS Approval Split Core Current Transformer

Name: Ce and RoHS Approval Split Core Current Transformer
Brand: all-electronics-online.com
SKU: 775125585
Availability: InStock
Rating: 4.9 (20 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	300/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CTBH61Y
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	50-400Hz
Rated Input:	5-6000A
Rated Output:	0-5A
Bobbin:	PBT
Application:	Power
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Auto-transformer
Certification:	CE RoHS
Brand:	Chana

Product Description

Application
Current measurement, monitoring and protection for electrical wiring and equipment.

Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air-condition equipment and automation ¨ control system.
Current, power and energy monitoring device.
Relay protection device.

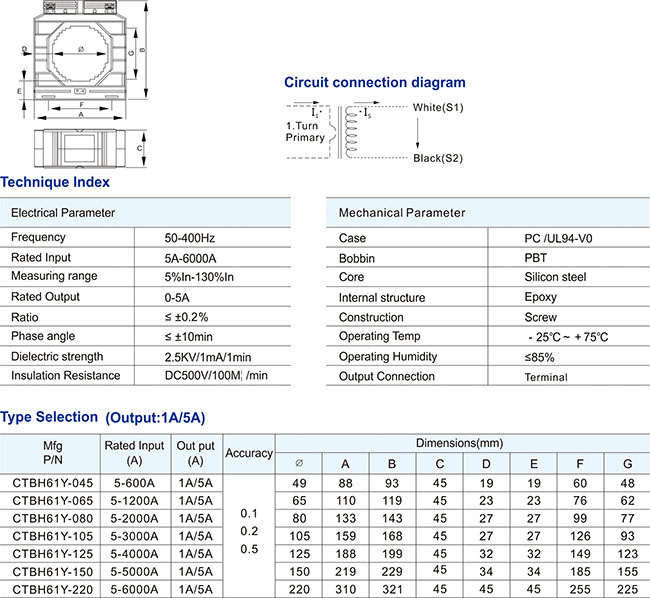

Technical Data
CTBH61Y series current transformer is compact.smaller than other models with the current ratio of the transformer is small,clamshell-style terminal cover is well protected by the second terminal.With related accessories you can use Din rail mounting,a current from 5A to 4000A
Features
Safe, easy to install, portable
Wide inner window, allowing clamping of big cables or bus-bars
Wide range of sizes to accommodate all the existing installatio.

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
