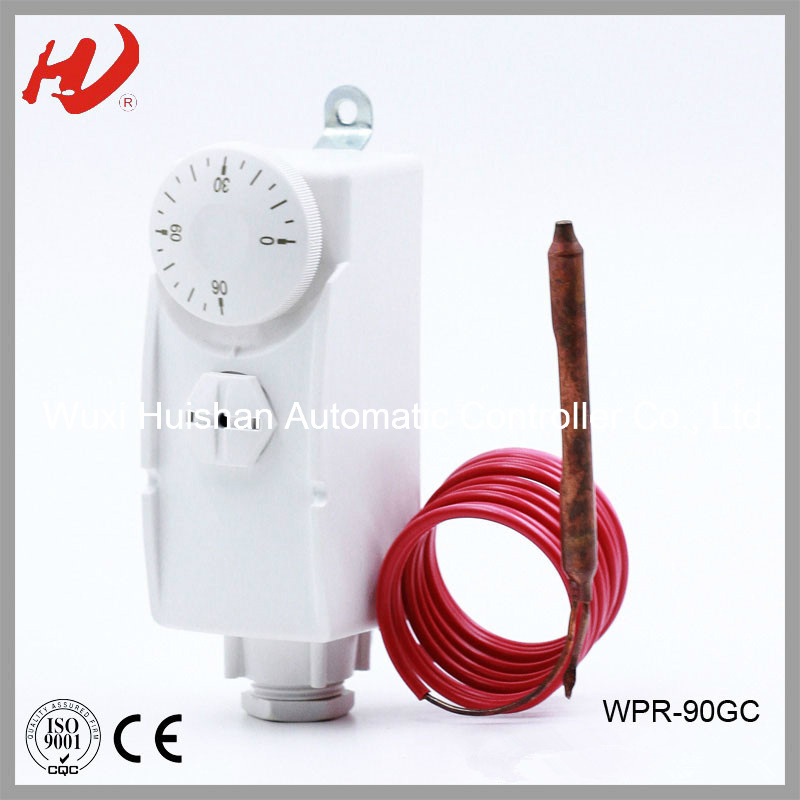

CE and RoHS Approved Capillary Immersion Thermostat

CE and RoHS Approved Capillary Immersion Thermostat
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1000/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: WPR-90GC
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification: ISO
Control Type: Mechanical
Type: Temperature Controller
Usage: Floor Heating Parts
Display Type: Not Applicable
Material: ABS Plastic, Copper
Control Method: Mechanical
Brand: Huahong

Product Description

Control the temperature of pipe and boiler, with cooper sleeve, temperature set by dial

*Manual reset optional


Specifications
ModelWPR-90GC
CertificateCE and RoHS
Temperature range0`90 ºC
Voltage and current16 A, 250 V/AC
Differential4+/-2 ºC
Max. temperature of sensing element110 ºC
Capillary tube1000 mm

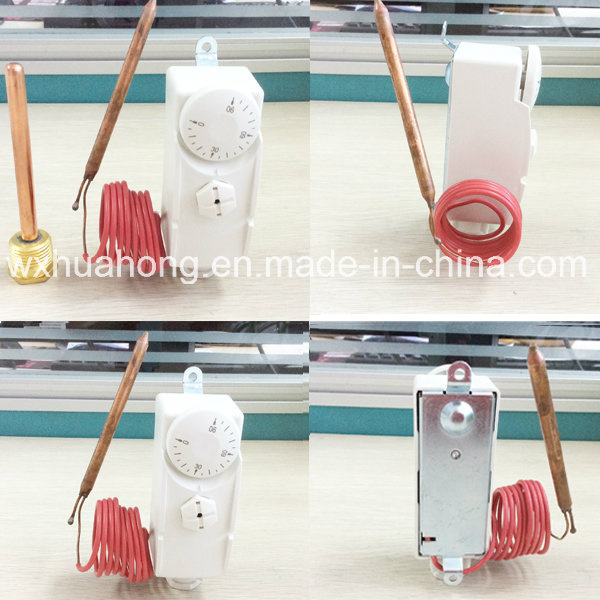

Product images

Copper tube is optional, if customer has no special request for the copper sleeve, we won't put it together with products.

CE and RoHS approved, with one-year warranty


Payment terms

SamplesPaypal


Western Union
Orders30% T/T in deposit, balance against B/L copy


Irrevocable L/C at sight






*. Temperature range: 0-90 degree C

*. Rating at: 16A(4) 250V

*. Differential: 5-6 degree C

*. Capillary: Φ 1.3X1000 mm

*Max. Temperature protection: 100 degree C.
Wuxi Huishan Automatic Controller Co. Ltd., was founded in 1988. We are located in Wuxi city, which is 40 mins Far away From Shanghai by train. Financial and commercial center of China. After 20 years development, we have set up a new 8400m2 standard moredn workshop, equipped with advanced machinery and testing laboratory which enable us to be a professional manufacturer for temperature control porducts. 35% of our employees are mechanic and engineer and we are ISO9001: 2000 approved.

After 20 years continuous of developing, we have been producing high quality of room thermostats, thermostatic valves, thermostatic heads, liquid sensor for TRV, temperature and pressure safety valve, industrial thermostats, pressure switches, flow switches etc. We produce strictly according to the standard with a result that many products are CQC, EN215, CE, VDE, RoHS approved. With over 10 years export experience, we expanded our market to Europe, Middle East, North America, South America, and some of our customers are famous for international companies. We also offer OEM and ODM services to our customers, based on our strong technical force. For the same reason our customers are satisfied with our quality and service. Our production capacity is over than 3 million piecess. Looking forward to developing the market and technology togther with our overseas partners, and build up a mutual prosperous future.
