CE and RoHS Approved DC Mini Circuit Breaker

Prod Model:	EKM1-63DC-3P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
DC Voltage Range:	127VDC to 800VDC
Use Area:	PV System
Voltage:	220V
Amperes:	63A
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Insert
Structure:	MCB
Poles Number:	3
Certification:	CCC

Product Description

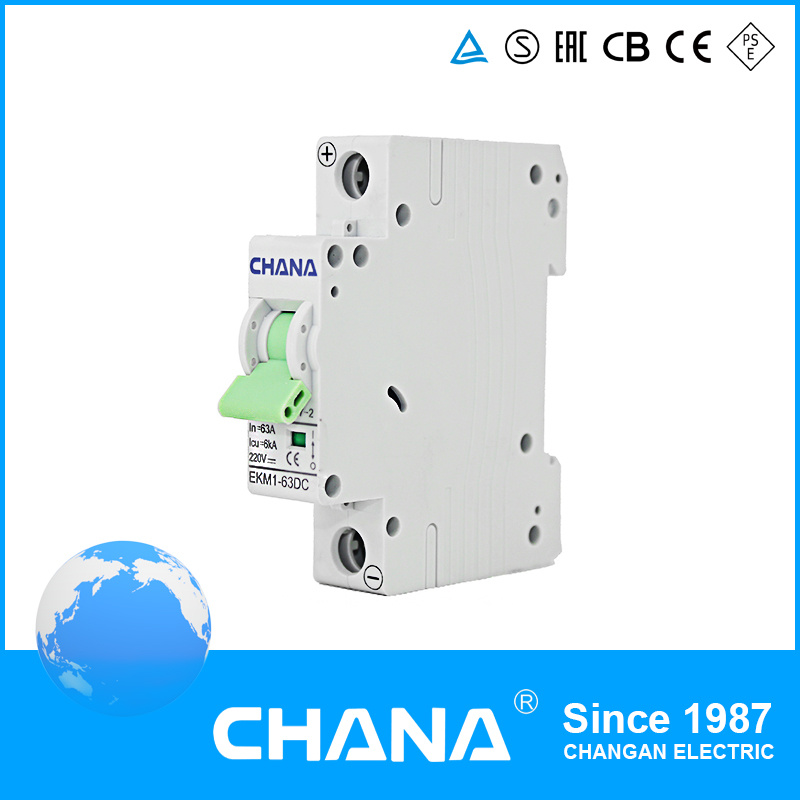

DC mini circuit breaker
Specifications
DC circuit breakers, DC MCB
OEM SERVICE factory circuit breakers
High quality
Rated current: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Application for DC MCB.
EKL1-63D Series DC Miniature Circuit Breaker, apply to rating current 63A or less. It is mainly used for the overloading and short circuit protection in DC distribution system equipment, solar / photovoltaic power system and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields. In present China, our products in the case grade rating voltage is highest compared to the same products.
Products according to IEC60947-2 standard.

Characteristic
EKL1-63D DC circuit breaker is made up of case, operation mechanism, thermal overloading trip, electromagnetic trip contact system, arc system etc. It has overloading and short circuit protection, unique-design structure and strong permanent magnetism arc system make the product has 6KA short circuit capability. Long mechanical life over 20000 times and beautiful shape. It can be connected with DIN rail named TH35-7.5 standard stainless type and has the below personality: The handle is designed on the top of the front, people will feel safe and comfortable when operating. When connecting, pay attention to "+, -" poles; The power goes in from the top and comes out from the underside which is applied with power entrance character. Convenient for installation and saving cables. It is used for 440V circuit 3 poles circuit breaker to connect front loop for two poles serial connection

rame  degree  rated  current  (A)		63
Electrical  performance
Ue  Rated  operating  voltage(V  DC)		AC250V  AC415V  DC440V  DC550V  DC800V  DC1000V
Rated  Current  In  (A)		6-10-16-20-25-32-40-50-63
Rated  insulation  voltage  Ui  (V  DC)		1000V
Rated  Impact  voltage  Uimp(kV)		4
Ultimate  breaking  capacity  Icu  (kV)		6	6		6		6
Run  breaking  capacity  Ics  (%Icu)		75%	75%		75%		75%
Curve  type		C
Trip  type		Thermal-magnetic
MECHANICAL	Actual  average  value	20000
	Standard  value	8500
ELECTRIC	Actual  average  value	2500
	Standard  value	1500
Control  and  indication
Shunt  release  (SHT)		Option
Undervoltage  release  (UNT)
Auxiliary  contact(AX)
Alarm  contact  (AL)
Connection  and  installation
Wiring  capacity  (mm2)		In≤ 32A,   I~25mm2,   I≥ 40A, 10~35
Ambient  temperature  (º C)		-20~70
Altitude		≤ 2000
Relative  humidity		≤ 95%
Pollution  Level		3
Installation  Environment		No  obvious  shock  and  vibration
Installation  category		Class  III
Installation		DIN  Standard  rail
Dimensions	W	17.5	35	52.5		70
	H	80	80	80		80
(W)*(H)*(Deep)	Deep	71	71	71		71
Weight(kg)		0.12	0.24	0.36		0.48
