| Prod Model: |
EW2110 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
145-265VAC |
| Output Voltage: |
230/220VAC |
| Pure Sine Wave: |
Yes |
| Transfer Time: |
3-5ms |
| Low Requency: |
Yes |
| AVR Function: |
Yes |
| RS232 Communication: |
Yes |
| Capacity: |
500va-1500va |
| Place Of Origin: |
China, Mainland |
| Warranty: |
One Year |
| Phase: |
Single Phase |
| Type: |
Line Interactive |
| Protection: |
Sealed Maintenance Free |
| Application: |
Home |
| Brand: |
OEM, ODM |
Product Description

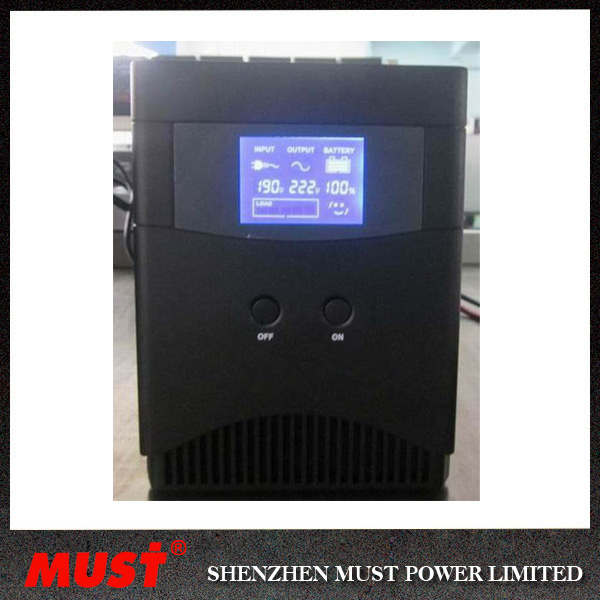

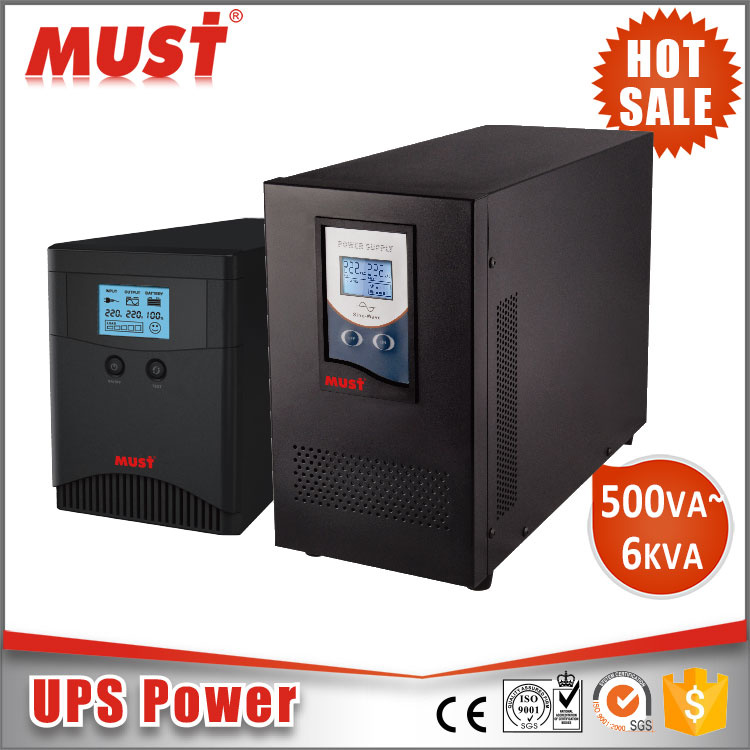

CE Approved 1KVA Sinewave Home UPS
Features of UPS EW2110 series:
1. inside battery 12v 7ah/9ah/17ah optional2.12/ 24/48VDC optional
3.Pure sine wave.
4.Low frequency, inbuilt transformer.
5.AVR function
6.Charge current Max.20A. for long mode
7. Support inductive load, motor, generator.
8. Input range: 145-275vac
9. output: 230vac+/-10%
10. RS232 available
11. LCD panel
12. transfor time: 3ms
13.protection: automatic self-test, discharge protection, over charging protection, short-circuit protection.low voltage,overvoltage,overload,over heating protection etc.
| MODEL | E1000M/L | E1500M/L | E2000M/L | E3000M/L | E5000M/L | E6000M/L |
| CAPACITY | 1KVA /700W | 1500VA/1050W | 2KVA /1400W | 3KVA /2100W | 5KVA /3000W | 6KVA /3500W |
| INPUT |
| Voltage | 110/120/220/230(± 25%) VAC |
| Voltage Range | 81-145 VAC / 145-275VAC |
| Frequency Range | 40-68Hz |
| OUTPUT |
| AC Voltage Regulation | ±10% |
| Frequency Range | 60 Hz or 50 Hz ±1 Hz |
| Transfer Time | Typical 2-6 ms, 10ms max. |
| Waveform (Batt. Mode) | pure sine Wave |
| BATTERY |
| Battery Type & Number | 12 V/7AH x 2 | 12 V/9AH x 2 | 12 V/17AH x 2 | 12 V/17AH x 2 | 12 V/17 AH x 4 | DC48V |
| backup time@80% load | 13 mins | 11 mins | 16 mins | 10 mins | 14 mins | \ |
| Recharge Current (M model) | Standard model:max 3A | Standard model:max 5A |
| Recharge Current (L model) | Long back up model:max 20-25A |
| INDICATORS |
| LCD/LED | Optional |
| PROTECTION |
| Overload | shut dowm if overload exceeds 120% /normal value for 30 seconds |
| Short circuit | Cut off immediately or input circuit breaker protection |
| ALARM |
| Low Battery | Beeping every second |
| Overload | Audible alarm |
| Fault | Continuously beeping |
| PHYSICAL |
| Product size, D X W X H (mm) | 380 x 140 x 182 | 450 x 190 x 350 |
| Carton size, D X W X H (mm) | 465 x 215 x 285 | 595x 325 x 473 |
| M Net Weight (kgs) | 15.2/11 | 15.9/12.8 | 37.5/27.7 | 37.5/27.7 | 54.2/29.6 | 29.6 |
| OPERATING ENVIRONMENT |
| Humidity | 0-90 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 60dB |
| MANAGEMENT |
| Optional RS-232 Port | Supports Windows 2000,Windows 7,etc. |
Payment & Shipping & Sample
1. Payment: T/T (Telegraphic transfer), and Western Union
2. Shipping: DHL, FEDEX, UPS, EMS, Airway and By Sea
Samples are Available for Testing and Market Test. OEM is welcomed for us.
One Year Warranty on MUST POWER Products
Guides and After-service Consultancy
A. Need a Accessory
B. Products Repair
C. Power Problems to Solve
D. Power Protection Solutions, etc.
24 Hours After-service consultancy just for you and to make your problems to solve easily.
Company Information
Headquarter & Factory Location | In HongKong & Shenzhen,Guangdong China Mainland |
| Industry Experience | 6-Year Manufacturer, 12-Year Trading, 6-Year Alibaba Gloden Supplier |
| Product Range | Inverter,Solar Inverter, Off-grid Inverter Grid-tie Solar Inverter, MPPT Solar Charge Controller, Solar Panel, Solar Battery, Solar System |
| Main Market | Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.) |
| Factory | 8000 Square Meters, 200 workers |
| Department | 7-team Marketing Dept, 2-team R&D, 1 Manufacturing Center, QA Office, After-sale Service Dept. |
| Certificate | ISO9001:2008, CE, IEC,SAA, SGS, Soncap,etc |
| Patent | Software Patent, Design Patent, Project Patent |
FAQ:Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
