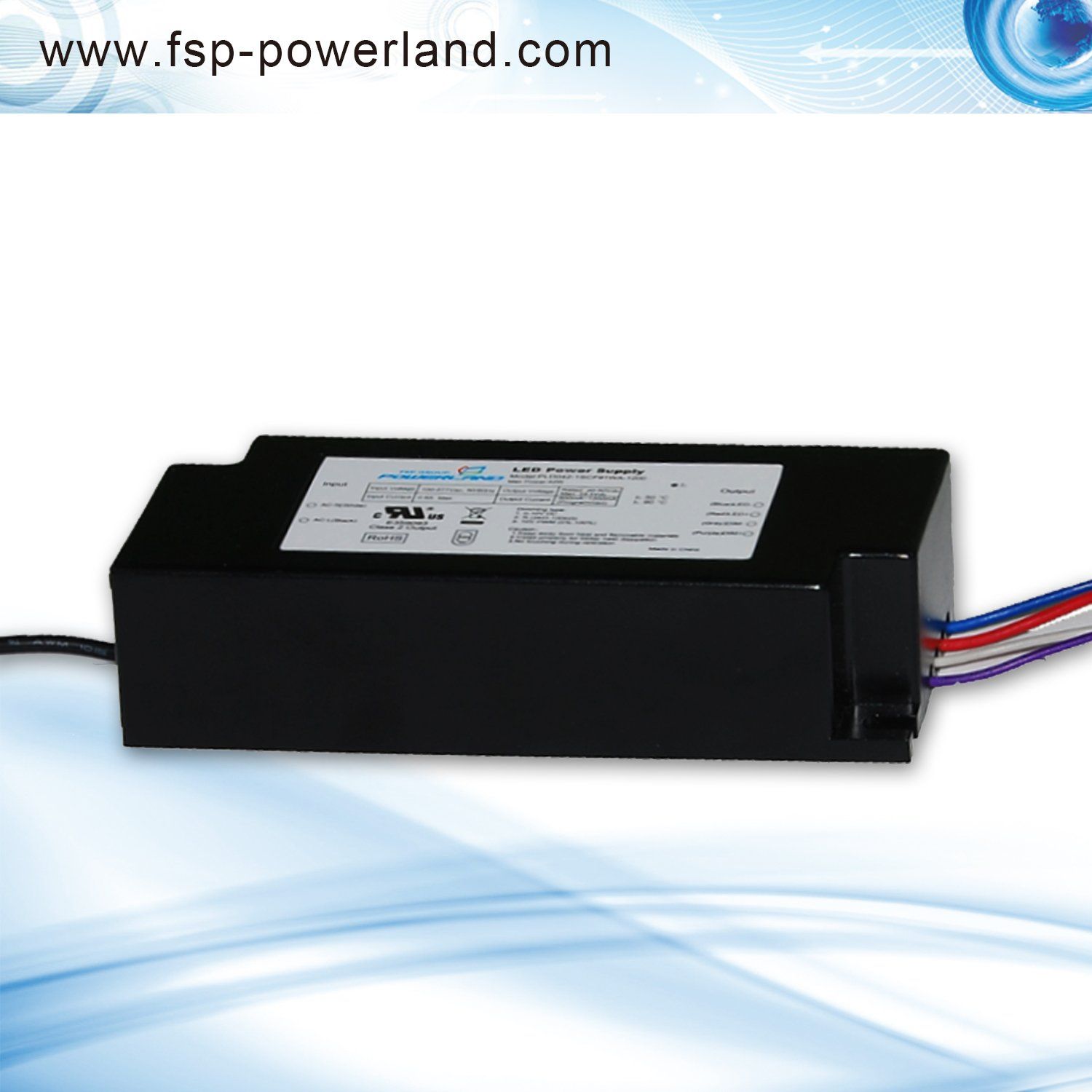

Ce Approved 42W Programmable Constant Current LED Driver Plastic Case

Name: Ce Approved 42W Programmable Constant Current LED Driver Plastic Case
Brand: all-electronics-online.com
SKU: 798752605
Availability: InStock
Rating: 4.8 (139 reviews)

Price:	US $ 8.1-12.5/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD042-1SCF691WA-1200
Output Power:	42W
Dimming:	0~10V, PWM, External Resistor, Clock
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	108~305VAC
Pack Sealing Size:	108X45X29.5 mm
Brand:	Fsp-Powerland

Product Description

CE Approved 42W Programmable Constant Current LED Driver Plastic Case

PLD042-1SCF691WA-1200 offers digital programmable drivers with wide-range adjustable output current and 108~305Vac universal input.

The output current of this series are programmable up to 1.2A, and designed for 0-10V/PWM/Rset/Clock dimming applications.

Applications
Outdoor & indoor LED lights
LED lights with flexible current settings
Downlights, high bay and low bay lights, spot lights, LED panels

Features
Ultra-deep dimming down to 1%, with dimming-off control
> 50,000 hours lifetime at 75ºC Tcase

> 5 years warranty at 75ºC Tcase
Constant current output

Output current programmable
Compatible with 0(0.1)-10V, PWM, external resistor, clock dimming
Universal input voltage: 108~305Vac
Safety according to UL1310 & EN61347-2-13

UL Class 2 Output

EMC according to FCC Part 15 Class A

Lightning, OVP, SCP, & Open Circuit Protection

Electrical Specifications

Model	PLD042-1SCF691WA-1200
Output Voltage	20~50V
Output Current	600~1200mA
Dimming	0~10V, PWM, External Resistor, Clock
Current Programmable	Yes
Output Power	42W
Max. Current Ripple	±40%
Voltage Range	108~305Vac
Frequency Range	47~63Hz
Max. Input Current @ 230Vac	0.5A
Max. Input Power	50W
Power Factor	>0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load
Efficiency	89%
Max. Open Circuit Voltage	59.5V
THD	<20% @ 120Vac/277Vac & 80~100% full load
Protections	OVP, OTP, OCP, SCP
Environmental Protection	UL Dry & Damp & Wet, and Type TL
Working Temperature	-20~+50ºC
Max. Case Temperature	90ºC
Surge Protection	Line to Line 1kV
Agency Approbations	UL1310 Class 2
Electromagnetic Compliance	Per Title 47 CFR Part 15 Class A
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	108x45x29.5 mm (4.25x1.77x1.16 inch) Plastic Case
Mounting Length	98 mm (3.86 inch)
Overall Length	108 mm (4.25 inch)
Weight	0.13 kg (0.63 lb)
Life Time	>50,000 hours @ full load, 75ºC Tcase

* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.

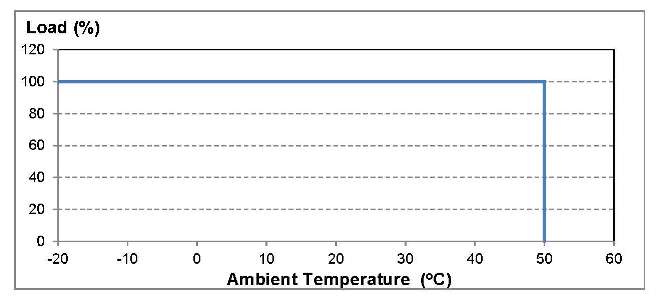

Derating Curve

Electrical Specifications

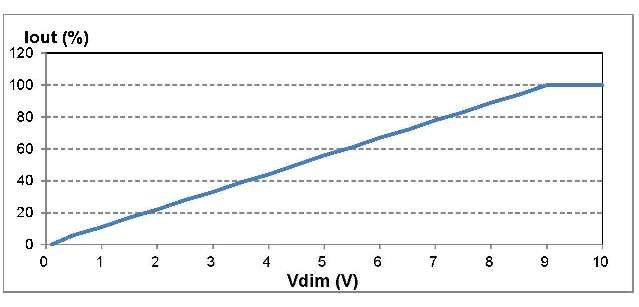

Output Current vs. 0(0.1)-10V Dimming Control Voltage

Performance Characteristics

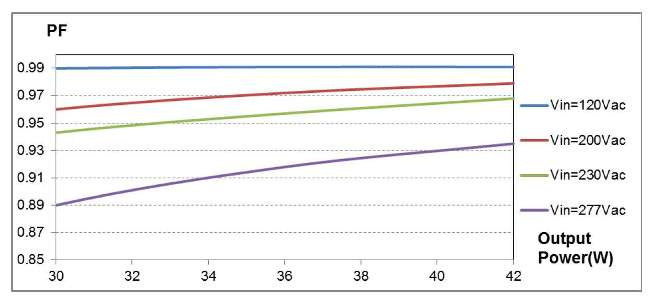

Power Factor vs. Output Power

Performance Characteristics

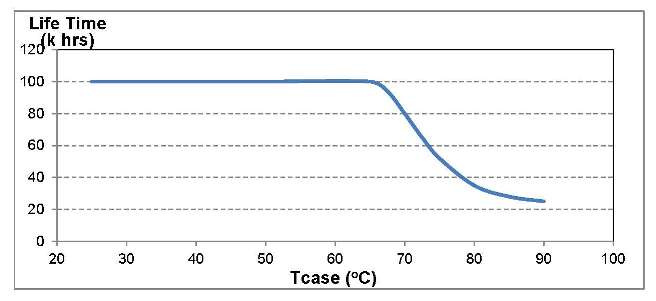

Life Time vs. Case Temperature

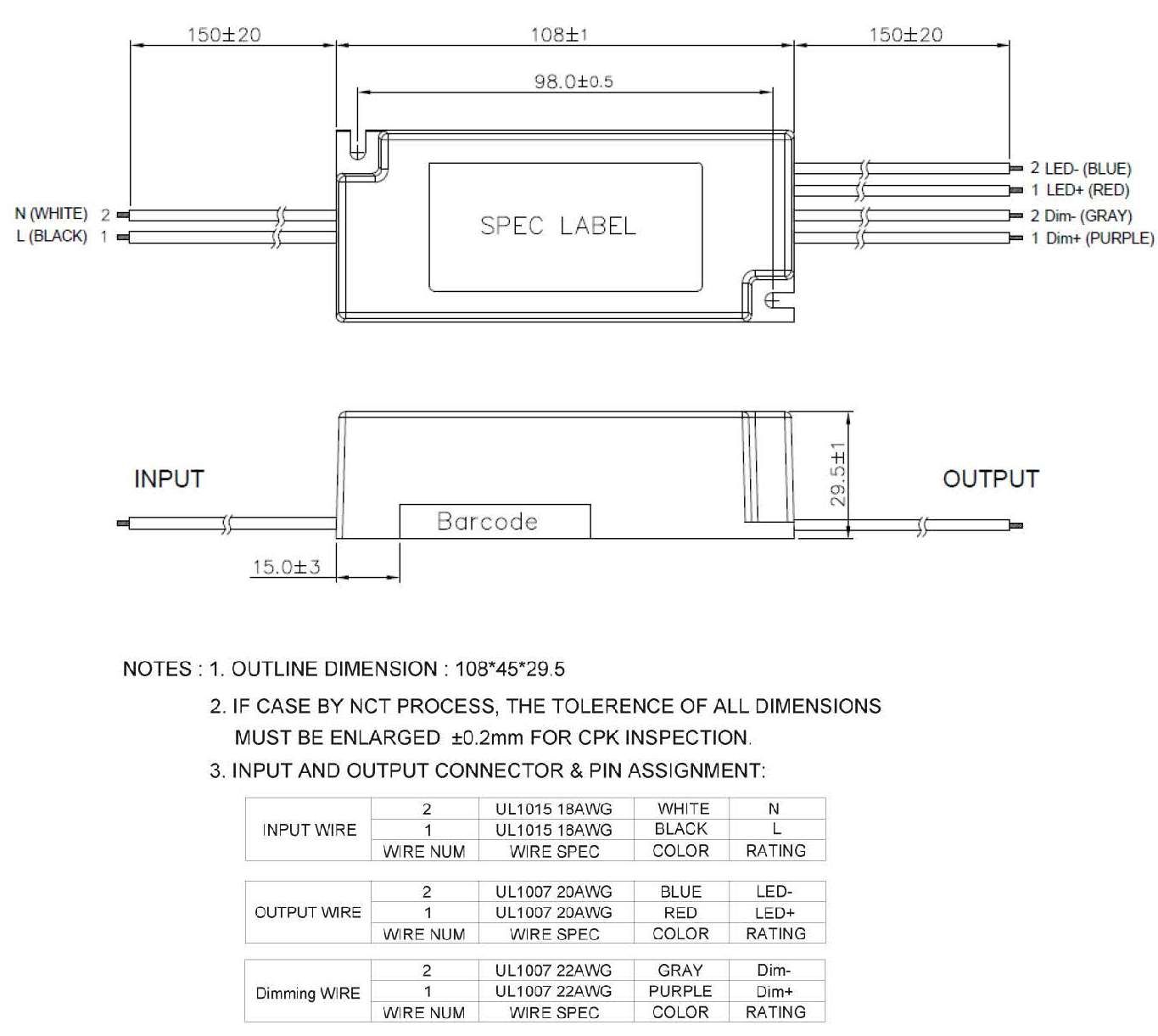

Mechanical Specification
