Ce Approved, 5kw BLDC Outboard Motor and Vec Controller / Car Motor
| Price: |
US $ 800-850/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal |
| Prod Model: |
HPM 5000B |
| Voltage: |
48V/72V/96V |
| Power Rate: |
5kw |
| Peak Power: |
10kw |
| Weight: |
11kg |
| Rated Torque: |
16n.M |
| Feature: |
Compact Design, Water Resistent |
| Warranty: |
1 Year |
| Speed: |
2000rpm-6000rpm(Customizable) |
| Peak Torque: |
48n.M |
| Cooling: |
Air Cooling/Liquid Cooling |
| Application: |
Universal |
| Operating Speed: |
Constant Speed |
| Structure And Working Principle: |
Brushless |
| Excitation Mode: |
Permanent Magnet |
| Certification: |
Ce, SGS, |
| Brand: |
Golden Motor |
Product Description
Product Description
High Power 5 Kw Electric Motorcycle Motor/5kw BLDC Motorbike Motor Max Speed: 85km/H (HPM5000A)
Drive Your Motorbike up to 100mph
Convert your gasoline powered motorcycle, scooter into electric version easily!
Clean, Quiet, Efficient, Light Weight, Monstrous Powerful, and Affordable.

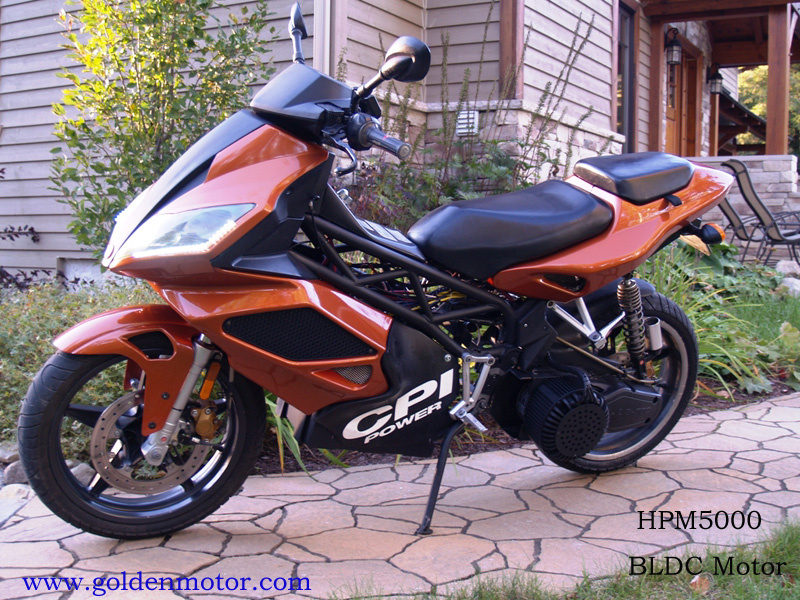

1.Conversion Model:
The conversion model: 5KW BLDC Motor, Max Speed: 85km/h, Battery: 72V40AH Lithium, Range: 70km

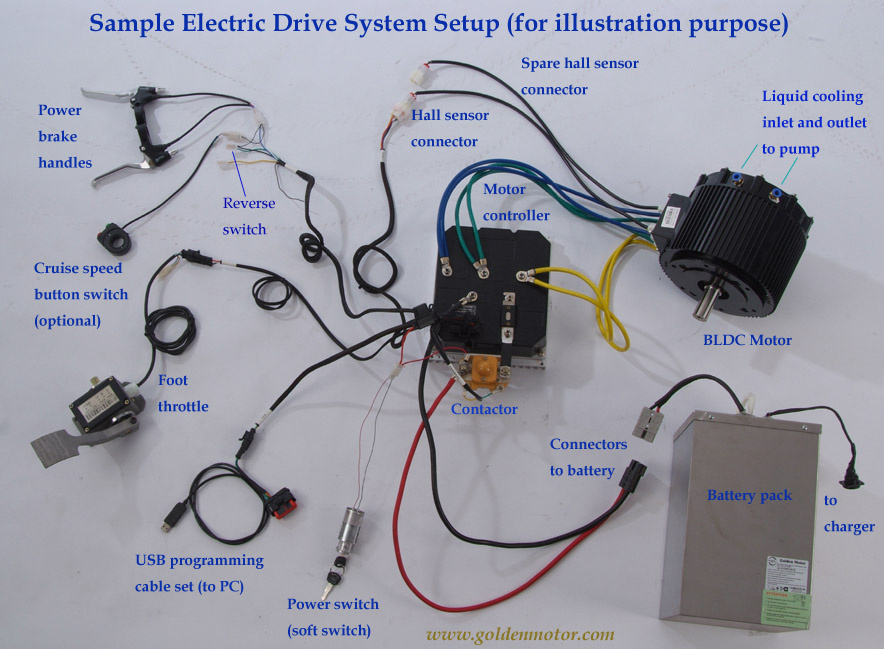

2.Wire connection for Electric Motorcycle Kit

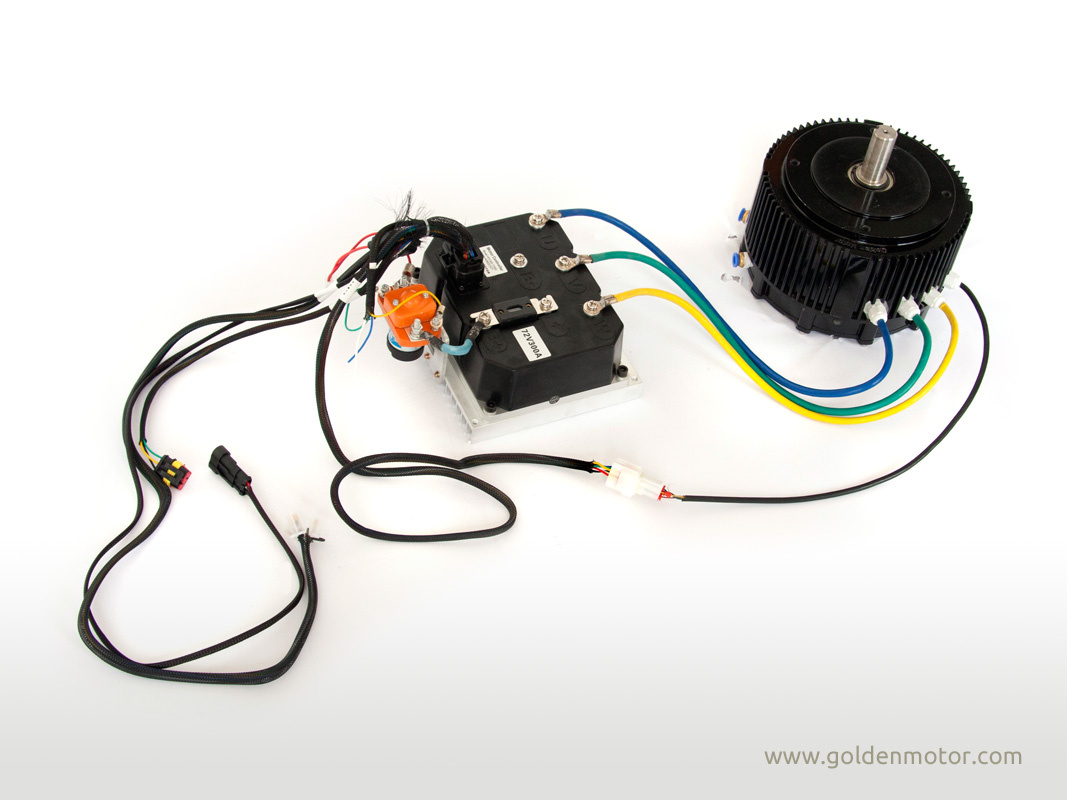

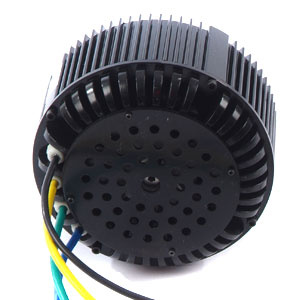

3.Pictue of BLDC Motor (10kw/5kw)
4.Here is the Form of Kit Contents| Item | Description |
BLDC Motor
(HPM5000A)
Air Cooling | Voltage:24V/36V/48V/72V
Rated Power:3KW-7.5KW
Efficeincy: 88%
Speed: 2000-6000rpm (customizable)
Casing: AluSmartum
Length (height): 126mm
Diameter: 206mm
Shaft: customizable
Features: Compact design,Water resistent, Stainless Steel Shaft, Self Cooling Fan
Applications: Electric car, electric motorcycle, electric tricycle, electric golf carts, fork lift, electric boat, etc. |
BLDC Controller
(For 5KW Motor) | Type: HPC300H Series(For 5KW Motor)
Voltage Range:48V/72V/96V
Rated Current (Max):360A/300A/240A
Weight:2.2Kgs
Dimensions:192x146x77mm
Features: Programmable via USB port, Fuse breaker, Regen Braking, Temperature sensoring |
| Contactor | to protect the controller |
| Spare Wiring Harness | Model: CA-201 -- HPC Controller Wiring Harness
23-pin Water-Resistent Connector
Dynamic Montoring Connector |
| Program Kit | Model: PI-400 -- HPC Controller Programming Kit
Easy Installation for PC/laptop with Windows OS
Easy USB Port Connection
Setup Parameters without Power-on Controller
Monitor Motor Performance Dynamically |
| Foot Throttle | Model: FSC-010 -- Foot Throttle
Output Voltage: 0-5V
Material: casted aluSmartum
Features: Water resistent |
