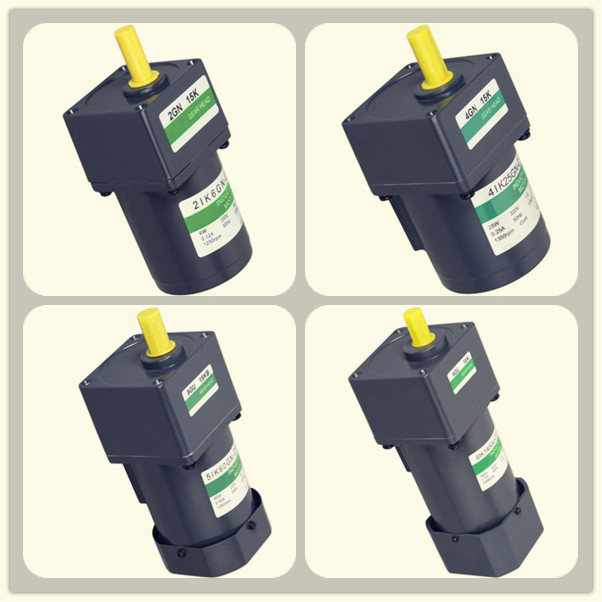

CE Approved AC Induction Gear Electrical Motor

Name: CE Approved AC Induction Gear Electrical Motor
Brand: all-electronics-online.com
SKU: 743558735
Availability: InStock
Rating: 4.9 (102 reviews)

Price:	US $ 13.1-22.3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GS-IND
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Rated Power:	10/15/20/25/40/60/90/120/140/180W
Motor Size:	60/70/80/90/100mm
All Technical Data:	Can Be Customized
Function:	Control
Number Of Stator:	Three-Phase
Brand:	GS
Certification:	UL, CE, RoHS, SGS

Product Description

AC INDUCTION GEAR MOTOR

Size: 60 / 70 / 80 / 90 / 100mm
Power: 10 / 15 / 20 / 25 / 40 / 60 / 90 / 120 / 140 / 180W
Voltage: 1ph100 / 1ph110 / 1ph120 / 1ph220 / 1ph230 / 3ph220 (50/60Hz)
Gear Ratio: 3/ 3.6/ 5/ 6/ 7.5/ 9/ 12.5/ 15/ 18/ 25/ 30/ 36/ 50/ 60/ 75/ 90/ 100/ 120/ 140/ 180/ 200

Note: Motor voltage, power and speed will be customized according to your request under the allowed circumstance of adoptable dimension.

If you have any other questions, please feel free to contact us.

Motor Size	Rated Power	Voltage (V)	Frequency	Rated Current	Rated Speed	Rated Torque	Capacitor
60mm	6W	1ph110 / 1ph120	60 Hz	0.16/0.18A	1450rpm	40mN.m	2uF
		1ph220 / 1ph230	50Hz	0.13/0.11A	1200rpm	50mN.m	0.8uF
		3ph220	50 / 60Hz	0.076/0.065A	1200/1450rpm	85/70mN.m	-
70mm	15W	1ph110 / 1ph120	60 Hz	0.3/0.32A	1450rpm	105mN.m	5uF
		1ph220 / 1ph230	50Hz	0.18/0.2A	1200rpm	125mN.m	1.2uF
		3ph220	50 / 60Hz	0.14/0.12A	1200/1450rpm	125/105mN.m	-
80mm	25W	1ph110 / 1ph120	60 Hz	0.45/0.5A	1550rpm	165mN.m	7uF
		1ph220 / 1ph230	50Hz	0.25/0.23A	1250rpm	200mN.m	1.8uF
		3ph220	50 / 60Hz	0.185/0.17A	1250/1550rpm	200/165mN.m	-
90mm	40W	1ph110 / 1ph120	60 Hz	0.55/0.6A	1550rpm	260mN.m	8uF
		1ph220 / 1ph230	50Hz	0.35/0.4	1250rpm	315mN.m	2.5uF
		3ph220	50 / 60Hz	0.3/0.25	1250/1550rpm	315/250mN.m	-
	60W	1ph110 / 1ph120	60 Hz	0.8/0.85	1550rpm	380mN.m	12uF
		1ph220 / 1ph230	50Hz	0.5/0.55	1250rpm	470mN.m	4uF
		3ph220	50 / 60Hz	0.45/0.4	1250/1550rpm	470/380mN.m	-
	90W	1ph110 / 1ph120	60 Hz	1.4/1.14	1550rpm	570mN.m	20uF
		1ph220 / 1ph230	50Hz	0.72/0.7	1250rpm	700mN.m	5uF
		3ph220	50 / 60Hz	0.6/0.55	1250/1550rpm	700/570mN.m	-
	120W	1ph110 / 1ph120	60 Hz	1.65/1.8	1550rpm	750mN.m	25uF
		1ph220 / 1ph230	50Hz	1/0.95	1250rpm	930mN.m	7uF
		3ph220	50 / 60Hz	0.7/0.6	1250/1550rpm	930/750mN.m	-
104mm	140W	1ph110 / 1ph120	60 Hz	1.8/1.95	1600rpm	850mN.m	25uF
		1ph220 / 1ph230	50Hz	1.05/1.15	1350rpm	1054mN.m	10uF
		3ph220	50 / 60Hz	0.85/0.75	1250/1550rpm	1080/870mN.m	-
	180W	1ph110 / 1ph120	60 Hz	2.75/2.65	1550rpm	1120mN.m	35uF
		1ph220 / 1ph230	50Hz	1.4	1250rpm	1385mN.m	12uF
		3ph220	50 / 60Hz	1.2/1	1250/1550rpm	1385/1120mN.m	-
Gear Ratio		1: 3 /3.6/5/6/7.5/9/12.5/15/18/25/30/36/50/60/75/90/100/120/150/180/200
