CE Approved China Factory Pin Connector/Panel Mount Socket

Name: CE Approved China Factory Pin Connector/Panel Mount Socket
Brand: all-electronics-online.com
SKU: 778986765
Availability: InStock
Rating: 4.4 (69 reviews)

Price:	US $ 2.7/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LP-20-J03SX-01-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connector Pin:	3pin Female Socket
MOQ:	100PCS
Cable Specification:	2.5-4mm2/14-12AWG
Diameter Range:	Od8-12mm
Rated Current:	20A

Product Description

CE approved china factory pin connector/pannel mount socket

What's the detail of the 3 pin power connector ?

Product performance
1.one hand plug unplug quickly ,high alttitude operation has higher margin of safety
2.stable and firm connecting mode:more than 2000times of plug and unplug keeping firmly
3.High protection levl ip65/IP67,can be used in all kinds of led display outside or inside
4.Low resistance high current transmission performance 20A
5.It applicable to power connection

What's the specification of the conntector ?

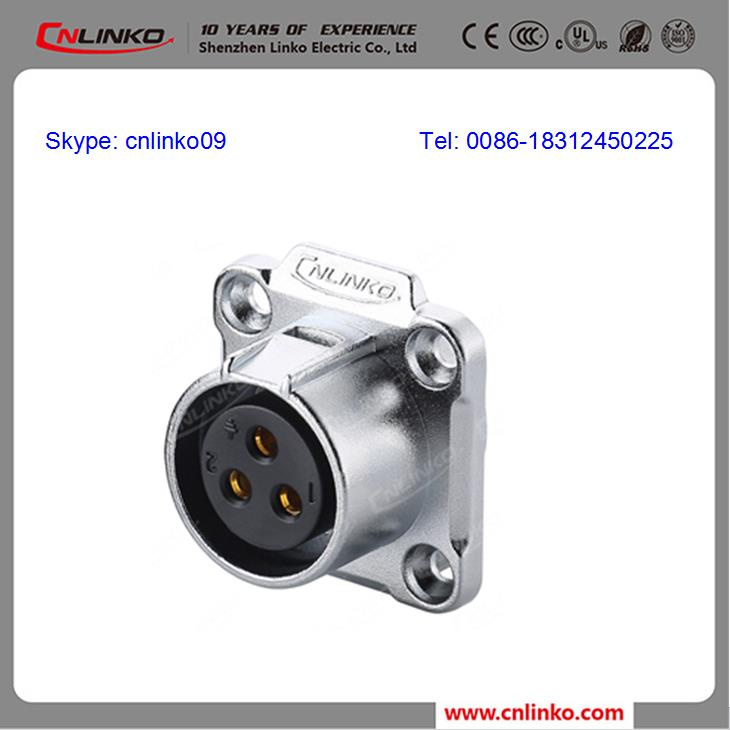

LP-20-J03SX-01-001 female socket
Specifications:
Connecting mode:	Quickly insert or unplug the connection
Protection level:	IP65/IP68
Wire gauge:	2.5-4mm/14~12 AWG
Contact diameter×Qty:	Φ2.7×3
Current rating(A):	20A
Operating voltage(AC.V.rms):	500V
Withstand voltage(AC.V)1min:	2500V
Contact resistance:	<1mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycle
Temperature rise:	20A per contact at 30°C,25A per contact at 40°C,30A per contact at 50°C
Temperature rating:	-40°C~85°C
Method of connecting cable:	Solder
Prevent the combustion level:	UL94 V0
Resistance to vibration:	10-500Hz,10g, Uninterrupted>100NS

Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated 4U)
Jack:	Phosphor bronze(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel

Main characteristics:

- Sealed against dust and fluid (IP65/IP68)
- Vibration resistance,impact resistance,stretching resistance
- With one hand, can quickly insert or pull out the

Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery

Packaging,shipping and the Trade Terms

Shipping
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods.
4. Delivery Time: 1-2 days for samples; 3-7 days for batch goods.

Payment Terms
1. Payment: T/T, Western Union, 30% deposits; 70% balance before delivery.
2. MOQ: 1pcs
3. Package Informations: 240 pcs per box /The volume of the box is 34.5*25.5*26cm

Why choose us ?

1.We are Alibaba Assessed 6 years Gold Supplier.
2.We are a factory manufacturing led indoor lamps, best production capability, best quality control, Best Service .
3.200% QC inspection Before Shippment.
4. UL/CUL/CE/CCC/ISO9001-2008 listed,competitve price.
5. Contact : Eunice Tan +86-18312450225

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
