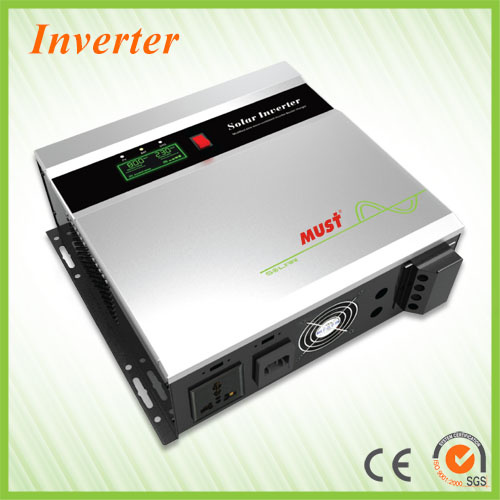

CE Approved DC Pure Sine Wave Inverter

Prod Model:	PV1100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	PV1100
Nominal Efficiency:	>80%
DC Input Voltage:	12V/24V
Waveform:	Modified Sine Wave
Status Display:	LCD+LED
Warranty:	12month
Type:	DC/AC Inverters
Phase:	Single
Power Source:	Solar Power
Output Power:	50 - 100W

Product Description

Features of High Frequency pure sine wave inverter
Modified sinewave AC output, wide application range;
Charge current 15/20A adjustable, for model 660W/800W
Inbuilt with 30A PWM solar charge controller
Three-steps intelligent charging control
Battery reverse protection function
Battery cable 10AWG 60cm (double line)
Compact size fit for home use, small solar systerm
Specification of High Frequency Solar Inverter
MODELPV11-1000PV11-1400PV11-2400
Default Battery System Voltage12VDC24VDC
INVERTER OUTPUTRated Power1000VA/660W1400VA/800W2400VA/1440W
WaveformModifided Sine-wave
Nominal Output Voltage RMS230V
Output Voltage Regulation+10/-18%
Output Frequency50Hz/60Hz +/-1 Hz
Inverter Efficiency(Peak)>80%
Line Mode Efficiency>95%
Typical Transfer TimeTypical 15~20ms 40ms max
AC INPUTVoltage230VAC
Selectable Voltage RangeNarrow170~280VAC
Wide90~280VAC
Frequency Range50HZ/60HZ (Auto sensing)
BATTERYNominal Input Voltage12VDC24VDC
Minimum Start Voltage10.5VDC21.0VDC
Low Battery Alarm10.5VDC+/-0.4V21.0VDC+/-0.8V
Low Battery Cutoff10.0VDC+/-0.4V20.0VDC+/-0.8V
High Voltage Cutoff15.0VDC+/-0.4V30.0VDC+/-0.8V
AC CHARGERCharger Voltage (Vbat<12.5V)14.4VDC+/-0.2V28.8VDC+/-0.4V
Charger Voltage (Vbat<12.5V)13.7VDC+/-0.2V27.4VDC+/-0.4V
Charging Current15A/20A± 2A10A± 2A
BYPASS & PROTECTIONNominal Input Frequency50Hz or 60Hz
Overload Protection (SMPS Load)FUSE
Output Short Circuit ProtectionFUSE
Bypass Breaker Rating10A
Max Bypass Current10Amp
SOLAR CHARGERMaximum PV Charge Current30A
DC Voltage12V/24V atuo work
Maximum PV Array Power150W*3 solar panels150W*4 solar panels
MPPT Range @ Operating Voltage16~55VDC
Maximum PV Array Open Circuit Voltage55VDC
Maximum Efficiency>95%
Standby Power Consumption<2W
MECHANICAL SPECIFICATIONSDimensions (W*H*D)268*260*90mm
Net Weight (kg)3.5
OTHEROperation Temperature Range0° C to 50° C
Audible Noise50dB MAX
DisplayLED+LCD
Standard Warranty1 year
