| Prod Model: |
TK108-ER89 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East |
| Working Voltage: |
+6.0 ~+36VDC |
| Inside Backup Battery: |
Rechargeable 3.7V 500mAh Li-ion Battery |
| Size Of The Main Unit: |
62*50*22 (mm) |
| GSM Frequencies: |
Quad-Band: 850MHz/900MHz/1800MHz/1900MHz |
| GPS Chip: |
U-Blox Chipset (or Mtk3339) |
| Receiving Sensibility: |
-160dBm |
| Language: |
English, Spanish, Arabic, Portuguese |
| APP: |
Free Android/iPhone APP |
| Certificate: |
Ce, FCC RoHS |
| Application: |
Car, Truck, Fleet |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Quad Band |
| Brand: |
Ublox |
| Chip: |
Ublox7 |
Product Description

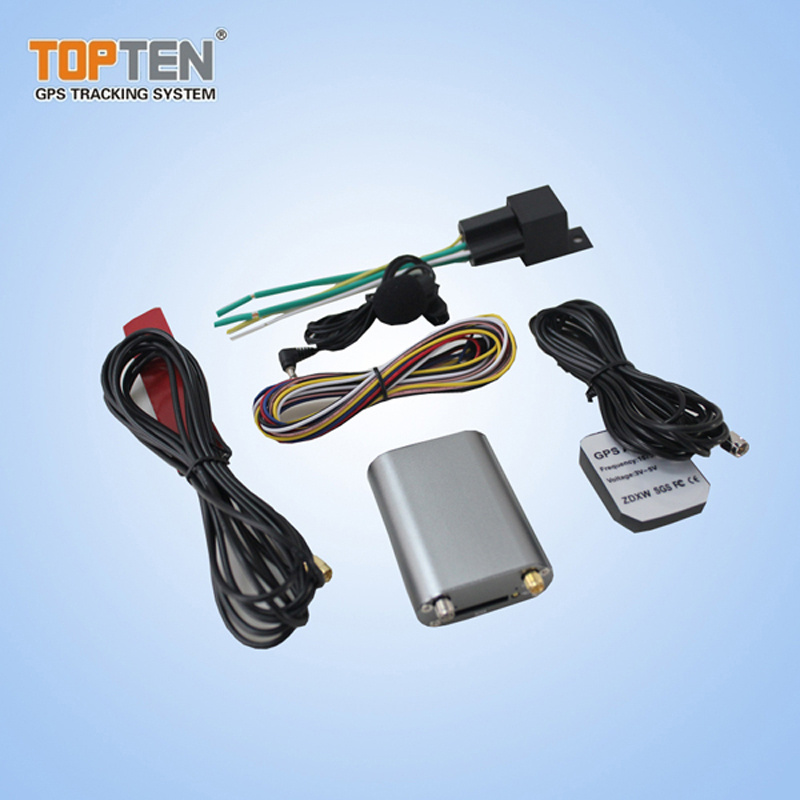

CE Approved GPS Vehicle Tracker with Engine cut, Anti-Theft, Monitor Voice Tk108-ErSelling points: 1. With tracking and car alarm functions
2. Language: English,Spanish,Arabic,Portuguese
3. Monitor/listen voice function
4. Engine cutoff and restore
5. Android/iPhone App
6. CE, FCC certified
* 1 Products Descriptions:
1. Track on command or by time interval or by distance.
2. Arm/disarm by SMS or phone call.
3. Check the car's real physical address (such as city name, street name...(need support of the TS01 or TS03 center);
4. Track by mobile SMS to get the latitude, longitude, speed, direction & odometer etc.
5. Check the location directly by the Google map's URL;
6. Online website tracking by GPRS data network;
7. Odometer function
8. Over-speed alert, Geo-fence alert;
9. Movement alert which can be used as an alarm.
10. Voice monitoring.
11. Cut off engine to stop the car safely by SMS/GPRS;
12. Built-in motion sensor for power saving & triggering alarm
13. Built-in rechargeable backup battery; When the car battery is cut off or low enough, the system will send out power failure alert immediately.
14. Wide working voltage range, from 5V-36VDC, suitable for motorcycle, car or big truck.
15. Support SOS button(optional)
16. Support analog input for fuel monitoring
17. I/O: 3 inputs and 1output
18. It can upgrade the normal car alarm with remote alarm function.
19. Compact size with water-proof design
20. 8Mb offline data logger, it can store 8192 waypointsSpecifications: | SM module | Quad-band: 850MHz/900MHz/1800MHz/1900MHz |
| GPS Chipset | U-blox chipset (or MTK3339) |
| GPS sensitivity | -160dB |
| Working voltage | +6.0 ~+36VDC |
| Channels | 20 channel all-in-view tracking |
| GPS frequency | L1, 1575.42MHz |
| GPS Position Accuracy | 10 meters, 2D 3D |
| GSM Position Accuracy | Later will realize |
| Size of the main unit | 62*50*22 (mm) |
| Weight of the main unit | 0.3kg |
| Hot start | 1sec., average |
| Warm start | 2sec., average |
| Cold start | 40 sec., average |
| Speed accuracy | ≤0.2M/S (wide-open area) |

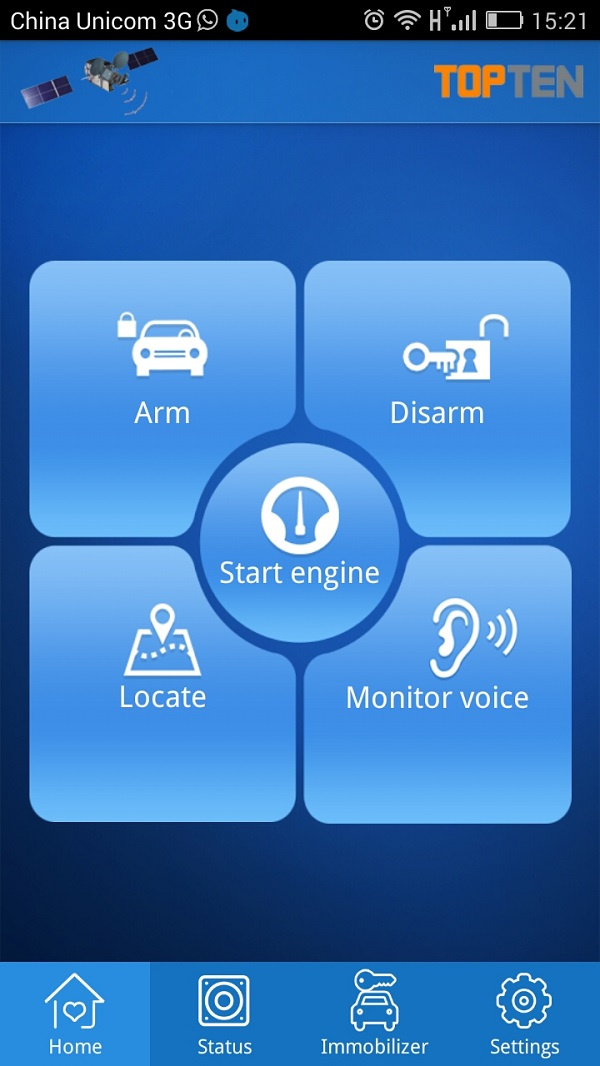

Tracking App:

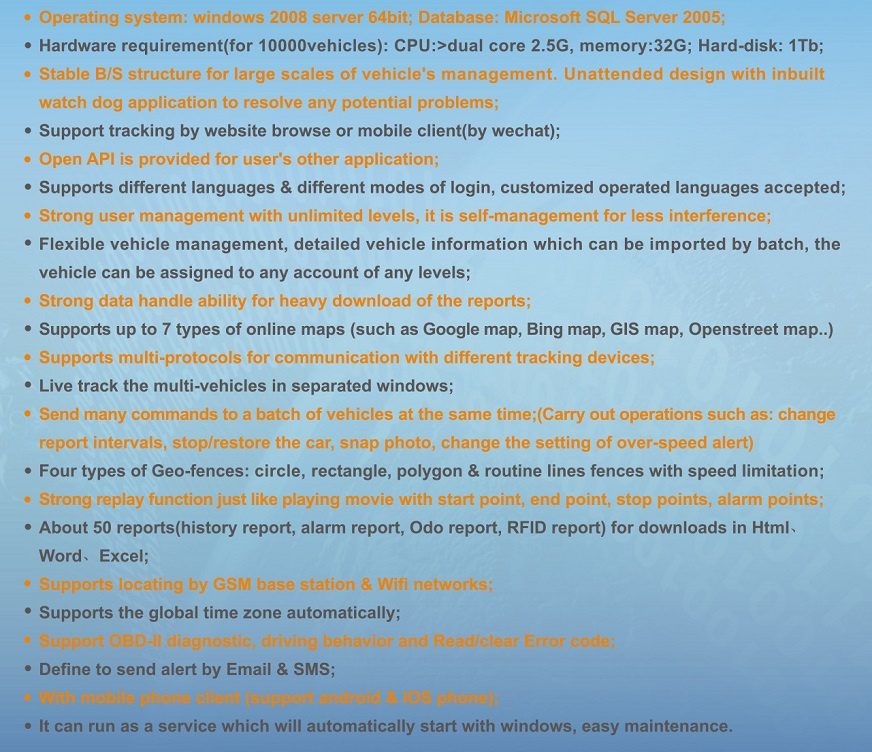

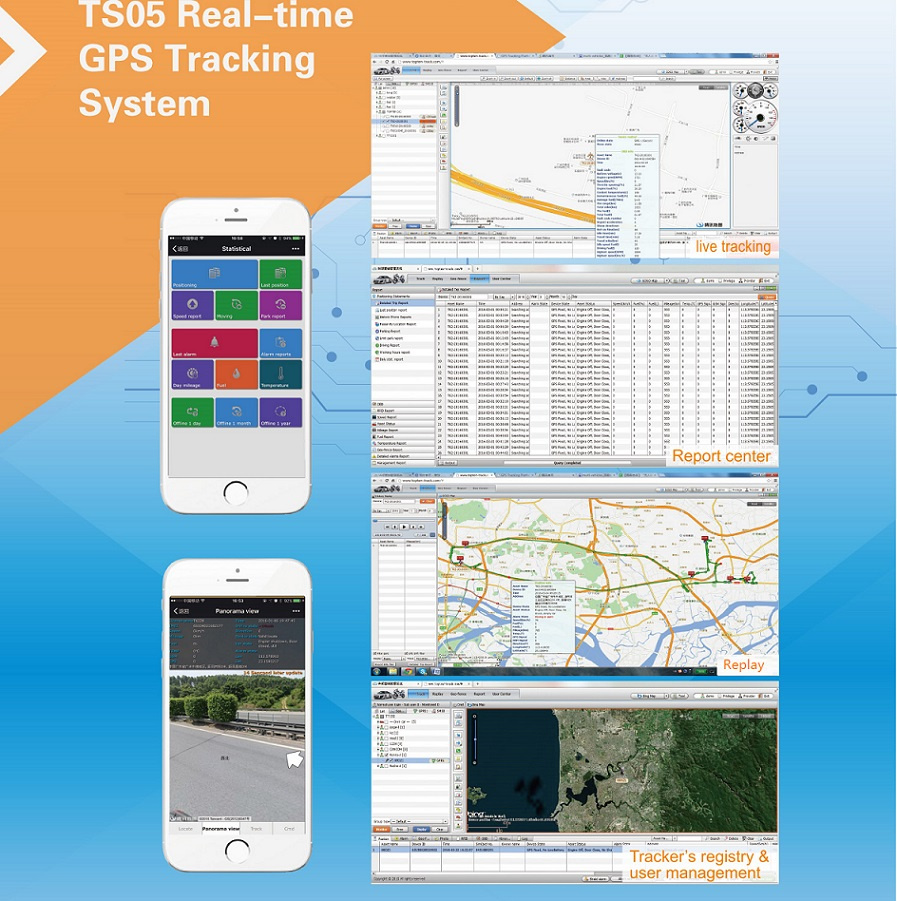

Online Tracking Platform:
More products:
For the MOQ: 1 piece
For the Delivery:
Order <300pcs, delivery is arrange in 3 working days upon receipt of the payment;
Order >300pcs, delivery time is about 3-10 days or according to our production schedule.
Payment:
1. The above price is in US Dollar, it is Fob Guangzhou price, the freight, duty or VAT are not included
2. Payment terms: Bank Transfer, Western Union, MoneyGram, Paypal or L/C
3. For small order quantities(4. For bank transfer, all the bank charges must be borne by the buyer, the amount should be the one which hits our account
6. For Paypal Payment, extra 4% of the total amount is needed as the paypal charge fee. We will be at China Sourcing Fair In HongKong April 2016. Welcome to join us!
Fair: China Sourcing Fair
Date: April 11- 14, 2016
Location: Asia World-Expo, Hong Kong
Booth Number: Hall 1 - 1H09
Tel: (0086 020)3835 1400
Mobile: (0086) 186 7663 2963
Guangzhou Topten Electronics Factory is a leading and professional enterprise which specializes in GSM car alarm system, GPS tracking system and other security products in China.
Topten Electronics Technology Limited is the subsidiary company of Guangzhou Topten Electronics Factory.
Our key products are GPS/GSM car alarm system, GPS/GPRS vehicle tracking system, GSM car alarm system.Parts of our products have gained the CE and FCC approval.It is warmly welcomed by customers from more than 95 countries in Africa, Middle East, Europe and Southeast Asia.
We have much experience in security field, especially in car alarm and GPS vehicle tracking, which makes us experts in providing reliable and cost-effective solutions for monitoring and protecting vehicles.We have strong force in continuous research and development, which enables us to be the leading manufacturer in GPS tracking system and GSM car alarm.
We adopt an advanced management system to ensure a qualified working team and the promptness to act to the market.Strict quality control is executed in each link of the whole production process.Every step from materials to semi-finished items to completed products is operated according to the requirements of ISO9001:2000 quality management system.
With the best service, high quality products, competitive price and attractive functions, we are sure that you will be satisfied with our cooperation.We sincerely hope to establish the friendly and mutual-beneficial partnership with you in the coming future.
