| Prod Model: |
DH-20-C12PE-01-001 & DH-20-J12SX-01-001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| MOQ: |
100sets |
| Certification: |
UL, CE, RoHS, CCC, ISO9001 |
| Cable Specification: |
2.5mm-4mm2/14-12AWG |
| Diameter Range: |
Od8-12mm |
| Rated Current: |
20A |
| Gender: |
Male |
| Application: |
PCB |
Product Description
IP68 waterproof signal connector/12pin connector
Product Description
1.LED screen industry
2.audio-visual equipment
3.medical equipment
4.industrial control test and measurement equipment
5.AV systems,broadcast television and communications industry and other fields.
6. wire connector
LP series electrical connectors IP65/IP68
1.multi-pins(2-12 PINS) for varies industrial demands
2.Zinc alloy material against high frequency noise and electromagnetic interference
3.gold-plated contact, high performance of corrosion resistance and
4.electrical conductivity effectively deal with temperature rise.
5.PBT shell performance stable, compression, anti-explosion and anti-deformation
6.rated current: 20A rms
7.protection level:IP65/IP68

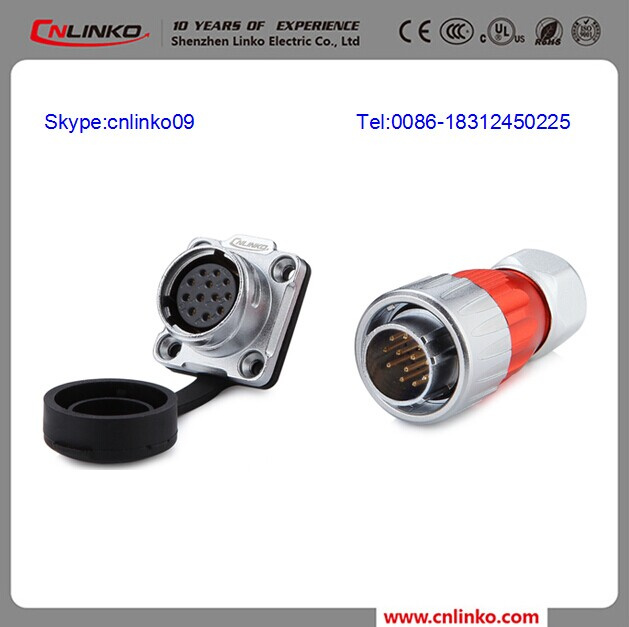

DH20 12pin power connector (male plug and female socket) |
| Specifications: | |
| Connecting mode: | PLUG /UNPLUG |
| Protection level: | IP65/IP67 |
| Cable specification: | 0.15mm2 ~ 0.2 mm2 /26~24 AWG |
| Diameter range: | Φ5.5mm ~Φ7mm |
| Contact diameter×Qty: | Φ1.0×12 |
| Current rating(A): | 12A |
| Operating voltage(AC.V.rms): | 400V |
| Withstand voltage(AC.V)1min: | 2500V |
| Contact resistance: | <2.5mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥500 mating&unmating cycles |
| Temperature rating: | -40°C~80°C |
| Method of connecting cable: | Solder |
| Prevent the combustion level: | UL94-V0 |
| Temperature rise: | 20A per contact at 30°C, 25A per contact at 40°C, 30A per contact at 50°C. |
| | |
| Material: | |
| Shell&insulated parts: | High performance engineering plastics |
| Hardware metal: | Zinc alloy(pearl hard chromium) |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| | |
| Main characteristics: | |
| - Sealed against dust and fluid (IP65/IP68) |
| - Vibration resistance,impact resistance,stretching resistance |
| - 1/4 bayonet connect; socket with cover |
| | |
| Application industries: | |
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |
Packaging & Shipping
Normally, our price is based on our box packing.
Customized packing is welcome , MOQ of printing customized box is 1000 pcs/model
Delivery Detail: 7-10 working days after received deposit .
You may choose our shipping partner or your own partner .
100% T/T in advance is required after confirming the order.
Our Services
CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard.
Supply OEM service .
We have professional quality control system and R&D department to strictly manufacture each product.
100,000 pcs per month .
National level laboratory , and have flexible production line, to make quick action to urgent customized needs.
We will supply the best service to you . Anything ,please feel free to contact us at:
Oversea's department
TEL:0086-0755-86960323 FAX:0086-0755-86960305
+86-18312450225 Eunice Tan
Website:http://www.cnlinko.com ; http://yuzike.en.alibaba.com
Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.
We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.
Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.
Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.
We will always keep skills fresh and up-to data with international.
Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.
Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
