CE Approved Newest LC1-D AC Contactor

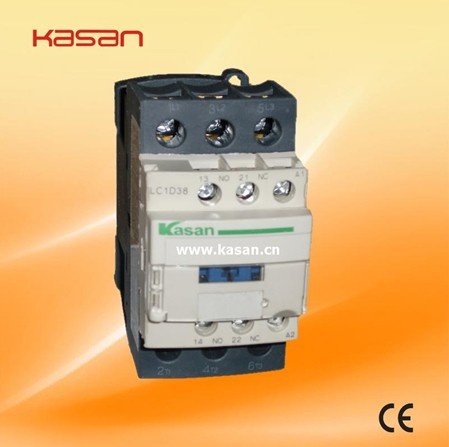

Name: CE Approved Newest LC1-D AC Contactor
Brand: all-electronics-online.com
SKU: 695057372
Availability: InStock
Rating: 4.4 (62 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,others
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LC1-D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Case Pack:	50 PCS a Carton
Pole Number:	3p+No 3p+Nc
Size:	Miniature
Theory:	Electromagnetic Relay
Usage:	Car Relay, Household Appliances Relay, Communication Relay, Lathe Relay

Product Description

Contactor LC1-D NEW series AC contactors are suitable for frequency 50/60Hz, rated insulation voltage up to 1000V, rated operation current 9~330A under AC-3 duty. It is mainly used for making/ breaking electric circuits at a long distance & for frequent starting/ stopping & controlling AC motors. It is used in combination with thermal relay to compose a magnetic motor starter. The products according with the standards such as IEC60947-4-1 & GB14048.4.

Type	Rated insulation voltage(V)	Conventional thermal current(A)	Rated operation current(A)	Control power(kw)					No .of contacts	Installation Method
				220V	380V	415V	440V	660V
LC1-0910	660	20	9	2.2	4	4	4	5.5	3P+1NO	1with two screws 235mm din rail
LC1-0901	660								3P+1NC
LC1-1210	660	20	12	3	5.5	5.5	5.5	7.5	3P+1NO
LC1-1201	660								3P+1NC
LC1-1810	660	32	18	4	7.5	9	9	9	3P+1NO
LC1-1801	660								3P+1NC
LC1-2510	660	40	25	5.5	11	11	11	15	3P+1NO
LC1-2501	660								3P+1NC
LC1-3210	660	50	32	7.5	15	15	15	18.5	3P+1NO
LC1-3201	660								3P+1NC
LC1-4011	660	60	40	11	18.5	22	22	30	3P+NO+NC	1with three screws 275mm 0r 35mm din rail
LC1-5011	660	80	50	15	22	25	30	33
LC1-6511	660	80	65	18.5	30	37	37	37
LC1-8011	660	125	80	22	37	45	45	45
LC1-9511	660	125	95	25	45	45	45	45

Yueqing Kasan Electric Co., Ltd. is a Subordinate of Kasan Electrical Group Co., Limited, Which Is Wholly Invested by Kasan Group, Is One of The Best Manufacturer and Exporter Companies in Liushi, Wenzhou. China, We Have a Specializing in The Export of Various Low Voltage Electrical Products with Over 50 Series and More Than 6000 Specifications. Such as Mini Circuit Breakers, Earth Leakage Circuit Breakers, Mouled Case Circuit Breakers, AC Contactor, Magnatic Starter, Distribution Box, Fuse, Switch, Industrial Plug & Socket and So on. They Are Sold with Fashionable Designed, Favorable Price and Competing Well in The World Market. It Is in Accordance with ISO 9000 Internation Quality System. All Products Have Certificate of Conformity for Electrical Equipment From Government and Have Won The Safety Approvals of CE Standard.

in Near, Our Company Continued Adopts International Advanced Technolog and Updating Our Products, Have Owned Advanced Equipment of Production, Inspection and Experiment, Powerful Technical Force and The Network System of Sales, Services All Over The World. We Adhere to The Guide of Market and The Principle of Living on Quality, Developing on Credit.

We Wish to Make Friends with All Over The World to Expand Our Products Market.
