CE Approved Pure Sine Wave Inverter with Double CPU Control

CE Approved Pure Sine Wave Inverter with Double CPU Control
Price: US $ 1-50/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: Rainbow Star Series 1000Va-5000Va
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Green
Display: LED/LCD Indicators
Technology: CPU Control
Cooling System: Fan

Product Description

CE approved pure sine wave inverter with Double CPU Control

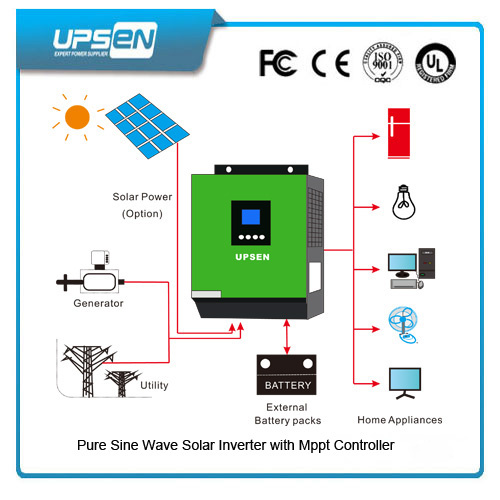

Hybrid Pure Sine Wave Inverter Controller Rainbow Star Series 1000Va-5000Va   (1ph in/1ph out)
Key Features
1:Auto restart while AC is recovering
2:Built-in MPPT solar charge controller
3:High Reliability: Double CPU Digital Control
4:Working noise is low and the efficiency is high
5:Compatible to mains voltage or generator power
6:Programmable supply priority for PV ,batetry or grid
7:Smart battery charger design for optimized battery performance
8:Selectable input voltage range for home appliances and personal computers
9:Pure sine wave output, with strong overload capability and wide application
10:CPU core SPWM pulse width control technology, pure sine wave output, THD≤3%
11:Low working noise,High effiency, benefited from adopting the SMD pastern technology

Applications
Supply the reliable long back up time power for the home appliances and Portable lights,Alarm systems,Power tools,Control Equipments,Security Systems,Medical Equipments etc

Technical Specification
ModelRS1000 RS2000 RS3000 RS4000 RS5000
RATED POWER1000VA/800W2000VA/1600W3000VA/2400W4000VA/3200W5000VA/4000W
INPUT
Voltage208/220/230/240 VAC
Selectable Voltage Range
170-280 VAC (For Personal Computers) ; 90-280 VAC
 (For Home Appliances)

Frequency Range
50 Hz/60 Hz (Auto sensing)
OUTPUT

AC Voltage Regulation
(Batt. Mode)

230 VAC ± 5%
Surge Power2000VA4000VA6000VA8000VA10000VA
Efficiency (Peak)90~93%93%
Transfer Time10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
WaveformPure sine wave
BATTERY & AC Charger
Battery Voltage24VDC48 VDC
Floating Charge Voltage27VDC54 VDC
Overcharge Protection30VDC60 VDC
Maximum AC Charge Current20A25 A
SOLAR CHARGER

Maximum PV Array Open
Circuit Voltage

60VDC/150Vdc (Optional)
110VDC/150Vdc (Optional)

Mppt Range @
Operating Voltage

25-60Vdc/25-150Vdc (Optional)

60-110Vdc/60-150Vdc
(Optional)

Maximum Solae Charge Current
40/60A60A
Max Efficiency  >96%
Standby Power Consumption2W
PHYSICAL
Dimension, D x W x H (mm)350 x 130 x 340380 x 130 x 465
Net Weight (kgs)7.47.6812.513.5
