Ce Approved USB3.0 IP67 Waterproof Cable Connector/USB3.0 Connector

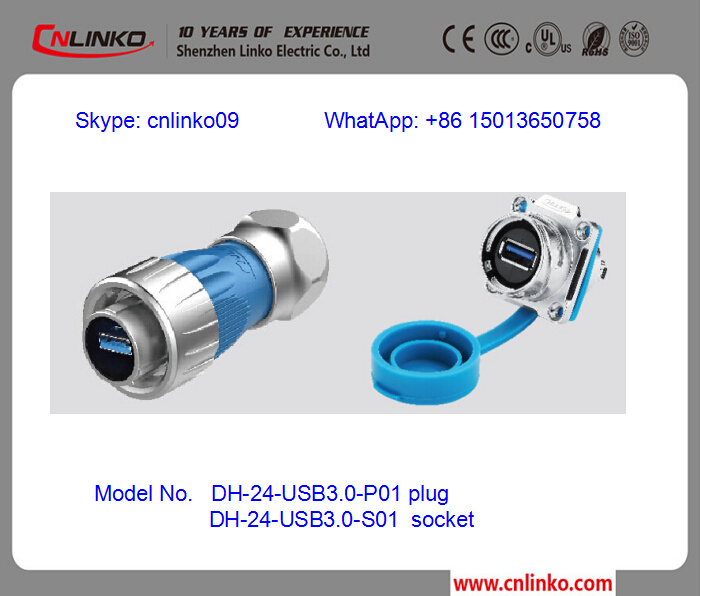

Prod Model:	DH-24-USB3.0-P01 & DH-24-USB3.0-S01
Installation Size:	24mm
Connector Type:	USB3.0
Certification:	Ce, CCC, RoHS, ISO9001
MOQ:	100sets
Waterproof Level:	IP65
Gender:	Male
Application:	FPC

Product Description

CE approved usb3.0 ip67 waterproof cable connector/usb3.0 connector

USB3.0  are widely used in the medical treatment and communication area.

USB3.0 is manufactured with high quality materials to meet different requirements of various environments. Its plastic material used is high performance PA66, male pins used is excellent mechanical properties of phosphor bronze assembly with good electrical conductivity brass. Contact is lathed and milled of two solid brass rods,reeds are stamped of beryllium copper.

Terminals' surface gold-plated with 4u"-20u", its superior mechanical properties ensure long effective application with insert and withdraw lifetime up to 3000 times.

USB connector has a good performance in waterproof industrial. 5 sealing structure making its waterproof rating reached IP68 standards, thus it is ideal for indoor and outdoor harsh working environment.

Specification:

Contact numbers:   9PIN
Rated current:          1.5A
Operating voltage:  1000V
Contact resistance: <30mΩ
Insulation resistance: >500mΩ
Protection level:  IP65/IP67
Durability:           > 500times
Working temperature:-40°C~80°C
Assembly wire:   plug in/out
Materials: high-performance engineering plastics housing and insulating parts
with silica gel waterproof cap
UL94-V0 Flammability rating

Packaging: 10pcs/small box, 240pcs/ctn
