Prod Model: |
MPM489W |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Measurement Range: |
0...1m ~ 200mh2o |
Overpressure: |
2 Times Fs |
Product Type: |
Submersible Pressure Sensor |
Application Temperature: |
-10~80c |
Storage Temperature: |
-40~100c |
Output Signal: |
4-20mA |
Power Supply: |
12~28VDC |
Housing: |
Stainless Steel 1Cr18Ni9Ti |
Rubber Casing: |
NBR |
Cable: |
Diameter 7.5mm Polyethylene |
Accuracy Grade: |
0.5%Fs |
Certification: |
RoHS |
Product Description

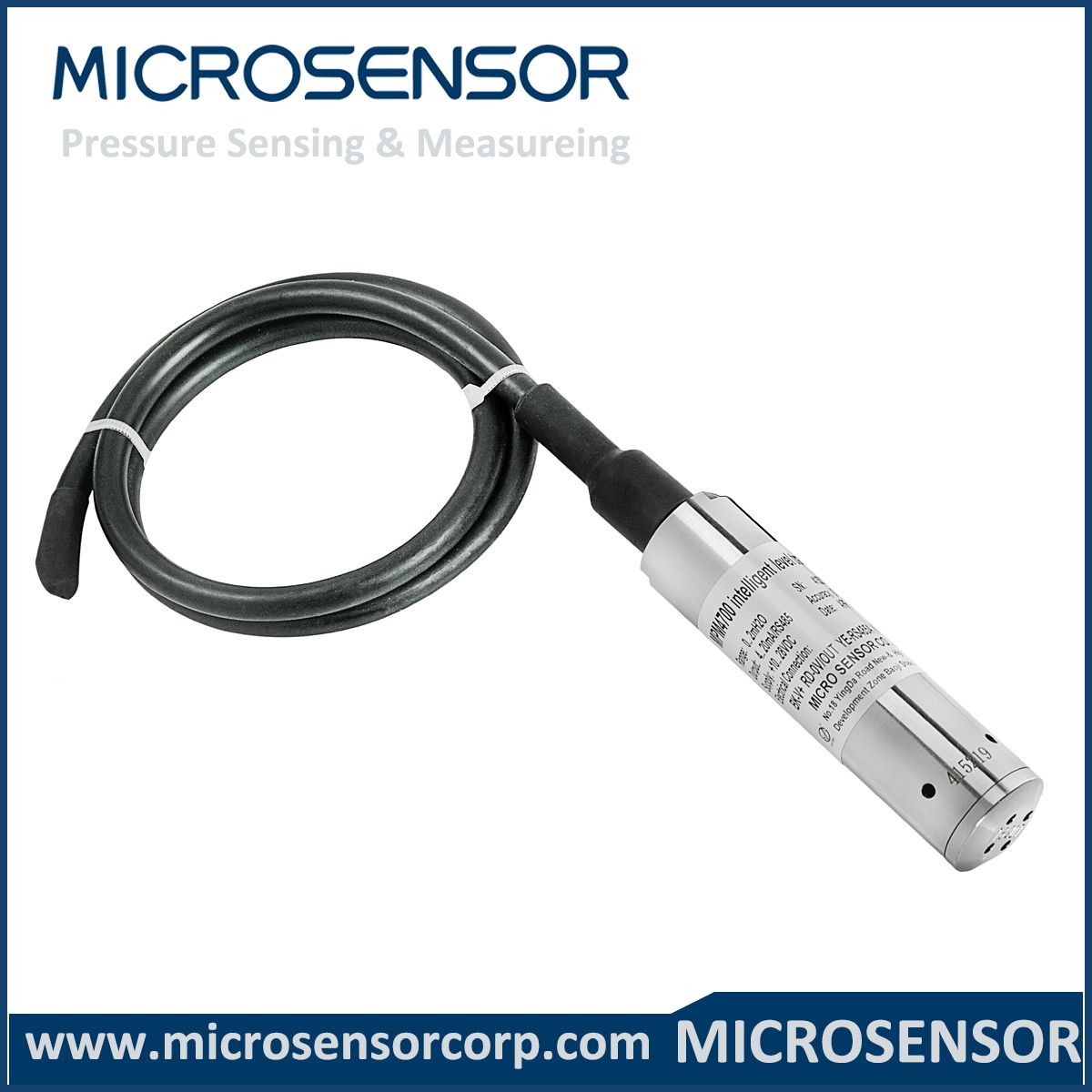

MPM489W Submersible Piezoresistive Level Transmitter
Features
·Integrated construction, unnecessary to do outer adjustment;
·sensor housing protection IP68, connection box protection IP65;
·Cost-efficient, high reliability and stability;
·RoHS approved;
·Explosion-proof product conforms to ExiaIICT6 of Standard;
Introduction
MPM489W is full sealed submersible level transmitter. It is made by building in high stable and reliable OEM piezo-resistive pressure sensor and high accurate circuit board into the stainless steel housing. Integrated construction and standard signal provide the user easy and convenient application in the local working place. The special cable connects with housing, can be immerged into the media for a long time.
Specification Range (FS) | 1 2 5 10 20 50 100 200mH2O |
Overpressure | 2 times FS |
Accuracy | 0.5%FS |
Stability | range>20mH2O, ±0.2%FS/year |
range≤20mH2O, 20mmH2O |
Thermal drift | Range | Zero | Span |
range>10mH2O | 0.02%FS/ºC | 0.05%FS/ºC |
range≤10mH2O | 0.05%FS/ºC | 0.05%FS/ºC |
Application temp. range | -10~80ºC |
Storage temp. range | -40~100ºC |
Power supply | 12~28VDC |
Output signal | 4~20mADC(2-wire) |
Load (Ω) | <(Uv-12)/0.02 |

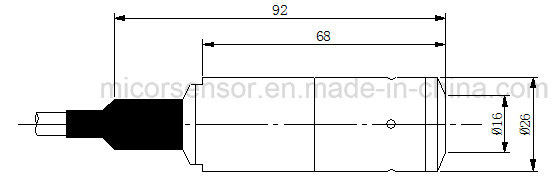

Outline Dimension
Order Information MPM489W | Level Transmitter |
| | Range | Pressure range: 0~1…200mH2O |
[0~XmH2O] L | X:actual measurement range L: cable length suggested L-X=(1~2)m |
| | Code | Output signal |
E | 4~20mADC |
| | Code | Construction material |
Diaphragm | Port | Housing |
22 | SS 316L | SS | SS |
24 | SS 316L | SS 316L | SS 316L |
25 | Tantalum | SS | SS |
| | Code | Others |
M1 | 0~100% indicator |
Ya | Aluminum connection box with display |
Yb | Aluminum connection box without display |
Yc | MS200 water-proof connection box (default) |
Yd | PD140 lightening-proof protection device |
i | Intrinsic safe version ExiaIICT6 |
C1 | M20×1.5 male |
C3 | G1/2 male |
F1 | Fixed flange |
| | | | |
MPM489W [0~2mH2O]5 E 22 Yc the whole spec |
