CE Approved Waterproof 3 Pin Powercon Connectors for LED Display

Name: CE Approved Waterproof 3 Pin Powercon Connectors for LED Display
Brand: all-electronics-online.com
SKU: 780968165
Availability: InStock
Rating: 4.3 (67 reviews)

Price:	US $ 2.81/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YF-24-C03PE-13-002
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Waterproof Level:	IP65
Connector Pin:	3pin
Rated Current:	20A
Operating Voltage:	500V
Withstanding Voltage:	2500V
Gender:	Male
Application:	Microwave

Product Description

CE approved waterproof 3 pin powercon connectors for led display

YF Series connectors because of its unique locking bolt,which is easy to operate and has a unique blue-gray separable power input and output,so effectively distinguish device input and output ports and a power coupling,both portable terminals transform at same time and make it more flexibility .Widely used in Audio ,video and power equipment.

1.locking 3-pin connector of the device ,with contacts for the middle, straight, pre-adaptation safety ground high current capacity 20A/250VA

2.use blue (input) and grey(output) to distinguish right plug and socket

3.fast and easy locking system

4.beryllium copper imported from the U.S silver-plated make quality assurance, increasing the stability and effective temperature control

5.IP44 and IP65 for choice.

6.20A rms current rating

7. 3Pin Outdoor Powercon Plug and Socket Connector for LED Screen

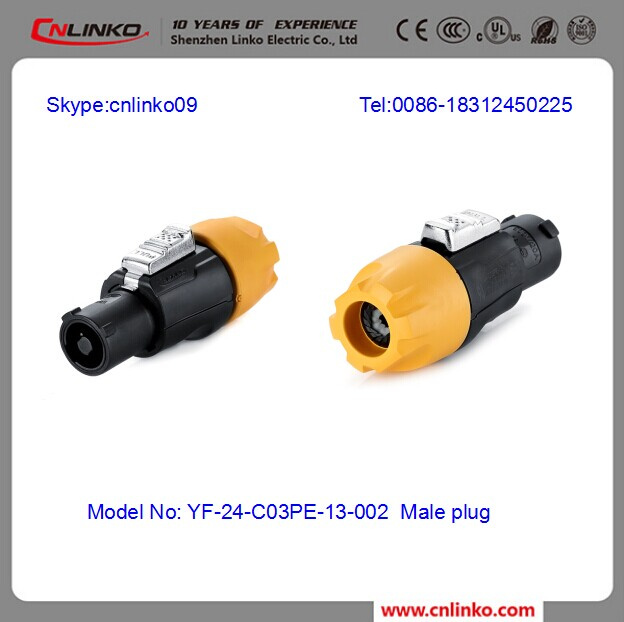

YF-24-C03PE-13-002 male plug

Connecting mode:	plug/unplug
Protection level:	IP65/IP68
Cable specification:	2.5 mm2 ~ 4 mm2 /14~12 AWG
Diameter range:	Φ8mm ~Φ12mm
Contact diameter×Qty:	Φ2.0×3
Current rating(A):	20A
Operating voltage(AC.V.rms):	500V
Withstand voltage(AC.V)1min:	2500V
Contact resistance:	<1mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	solder
Prevent the combustion level:	UL94-V0
Temperature rise:	20A per contact at 30°C, 25A per contact at 40°C, 30A per contact at 50°C.
Produce type:	splice connectors
Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel

Main characteristics:
- Sealed against dust and fluid (IP65/IP68)
- Vibration resistance,impact resistance,stretching resistance
- With one hand, can quickly insert or pull out

Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery
