Prod Model:	YF-24-C03PE-14-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	UL, CE, RoHS, CCC, ISO9001
Cable Specification:	2.5mm-4mm2/14-12AWG
Diameter Range:	Od8-12mm
Conductor:	Gold Plated
Operating Voltage:	500V
Waterproof Level:	IP65
MOQ:	100PCS
Gender:	Male
Application:	Microwave

Product Description

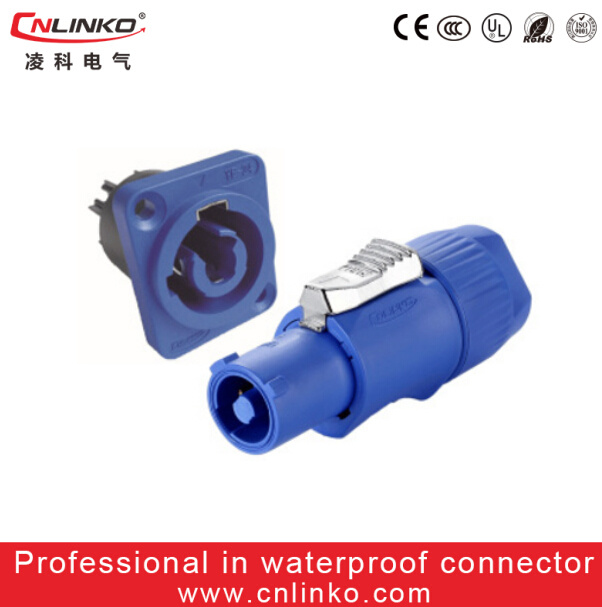

CE approved waterproof ip65 powercon/3pin power connector for led display

 Features:

Power-in and power-out versions with different keying to avoid the possibility of intermating
Fast and easy twist lock latching system
Extremely robust and reliable
Ergonomic design
Unique fashion design
Improved kink protection by two-component bushing
New bushing design avoids unintended opening
UL, CUL,CCC,ROHS,ISO9001

Product Description:

YF-24 series electrical connectors:
1. locking 3-pin connector of the device (middle, straight &pre-adaptation) - flexible;
2. Zinc alloy material against high frequency noise and electromagnetic interference
3. gold-plated contacts, high-strength corrosion resistance
4. electrical conductivity effectively deal with temperature rise.
5. silver-plated contact;
6. rated current: 20A;
7. 3 PIN Plug and Socket Speaker Connector, Adapter Connector for Audio and DJ Equipments.



Product Datasheet:

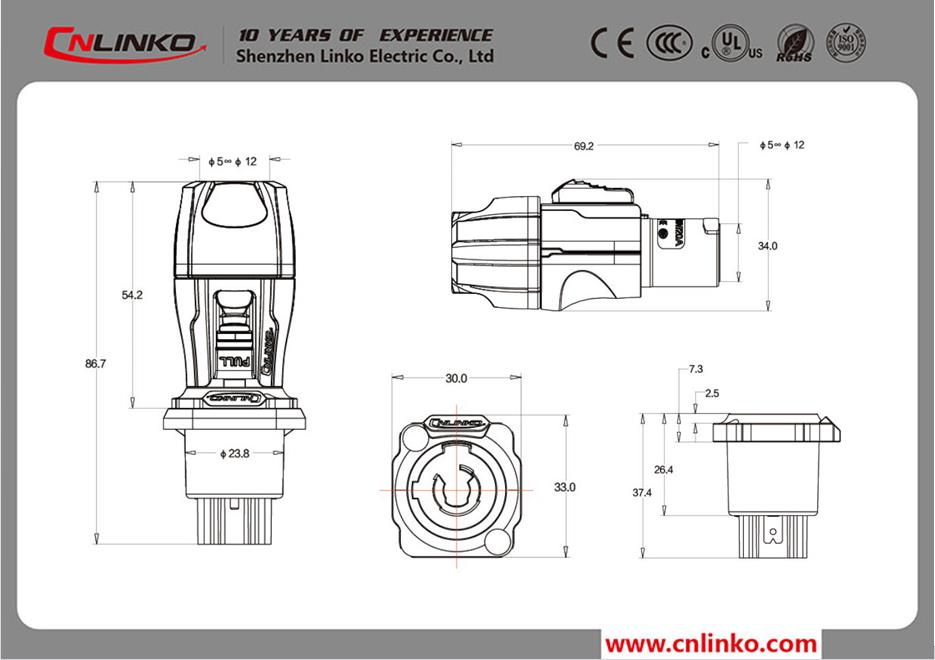

YF 24 power connector

Connecting mode:	latching lock
Protection level:	IP44/IP65
Cable specification:	2.5 mm2 ~ 4 mm2 /14~12 AWG
Diameter range:	Φ8mm ~Φ12mm
Contact diameter×Qty:	Φ3.0×3
Current rating(A):	20A
Operating voltage(AC.V.rms):	500V
Withstand voltage(AC.V)1min:	2500V
Contact resistance:	<3mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	solder
Prevent the combustion level:	UL94-V0
Temperature rise:	12A per contact at 30°C, 15A per contact at 40°C, 20A per contact at 50°C.
Produce type:	splice connectors
Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel

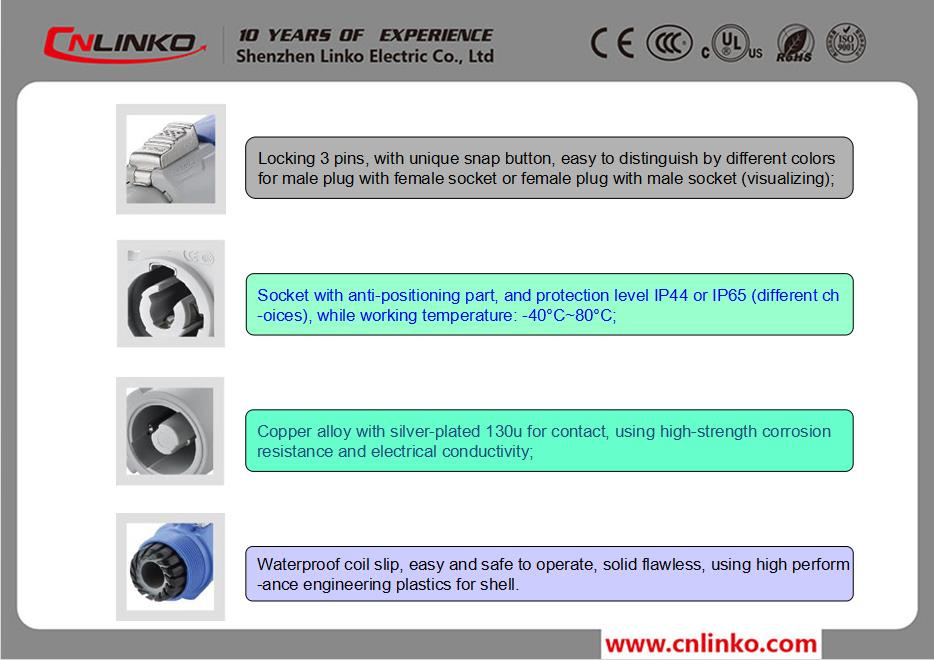

Main characteristics:
- Sealed against dust and fluid (IP44/IP65)
- Vibration resistance,impact resistance,stretching resistance
- With one hand, can quickly insert or pull out
Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery





Packaging: 10pcs/small box, 100pcs/ middle box, 240pcs/ master box
Shipping: by express, by air or by sea
Contact Person: Eunice Tan (sales manager)
H.P: +86-18312450225/15013650758

www.cnlinko.com/ www.cnlinko.en.alibaba.com

FAQ
Q1: What are connectors?
A1: Connectors are connected to the electrical and mechanical components of electrical circuits. See below assembly photos:

(all in all: cable to cable; cable to machines)

Q2: What classes do connectors have?

Shape	Frequency	Function
circular	high-frequency	for printed board; cabinets;
rectangular	low frequency	socket connectors; for audio equipment, power, signal, etc.

Q3: Why to choose CNLINKO? Any advantages?
A3: The answer is Yes. There are 5 major advantages (reasons).
1) Mutual Benefits: Our connectors are with high quality and competitive in price.
2) Customize: We can make the product as per your special request, Shape and Quality can meet your request.
3) OEM: Design your packing box(≥1000PCS per model).
4) Mix Order: We accept mix order, different model and small quantity order.
5) high quality: Our products have passed UL,CUL,CCC,CE and ROHS certification.
Using PBT material that import from abroad, carrying stable,compression, anti-explosion and anti-deformation quality; Using Zinc alloy material against high frequency noise and electromagnetic interference Use gold-plated contact with high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.

Q4: Can I order one piece for sample testing usage?
A4: Yes, we recommend you to check the sample before order. Please order the sample from us directly.

Q5: May I have your catalogue and price list for trial order in MOQ quantity?
A5: All our products were shown on alibaba, please have a detailed looking and choose the interested models from our site, sending us inquiry directly, we'll quote you accordingly right away.

Q6: Is there cheap shipping cost to import to our country?
A6: For small order, express will be best. As for bulk order,sea ship way is best but takes much time.
For urgent orders, we suggest via air to airport plus our ship partner send to your door.

Q7:Can we get support if we have our own market position?
A7: Pls inform us your detailed mind on your market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.
