| Prod Model: |
VS1 |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
SF6 |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Poles Number: |
3 |
| Certification: |
CCC |
Product Description

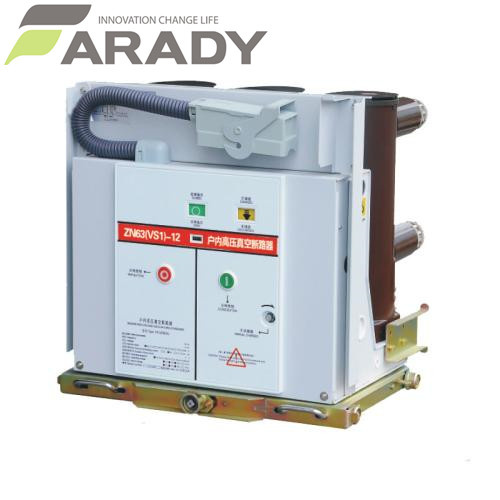

VS1 indoor high voltage vcb handcart assembly vacuum circuit breaker
Product Overview:
Model VS1 series of circuit breakers assembly are mainly used in the rated voltage12-24kv, the rated short circuit breaking current 20 and 50KA, and the rated current 630-5000A for the power distribution users.The mechanical endurance is 20000 operating and 50 operating full capacity breaking ability at small current. It is suitable for the application with frequent operation and it features free of maintenance and few service.It could be used with Model KYN28A(GZS1) metal-enclosed switchgear and other fixed cabinet or handcart cabinet.
Technical parameters :
| Parameters | Units | Technical parameters |
| Control circuit operating voltage | V | AC,DC220/110 |
| Closing and opening electrical magnet power | W | 370 |
| Charged motor power | W | 70(40kA is100) |
| Closing and opening electrical magnet current | A | 1.1(220v)/3.3(110v) |
| Over current release working current | A | 2.5,3.5,5( ± 10%) |
| Charged time | s | ≤ 15 |
| Closing time | ms | 35-70 |
| Opening time | ms | 20-50 |
| Auxiliary switch contact logarithm | | 8K8B(maximum 12K12B) |
| Mechanism travel | mm | 12KV-15/24KV-16.5 |

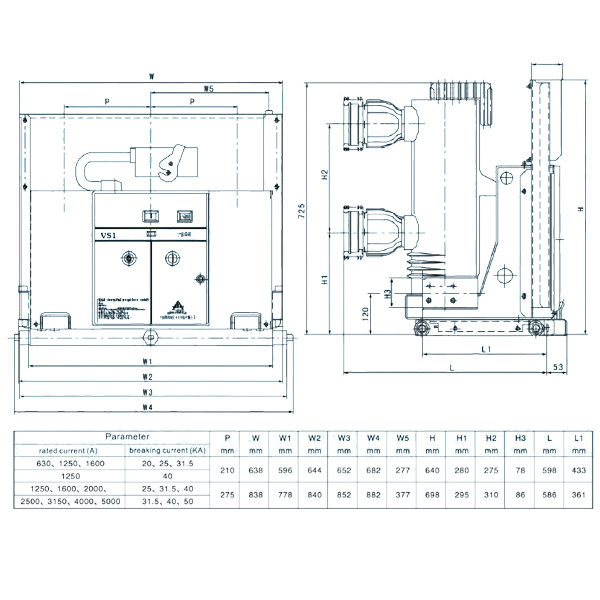

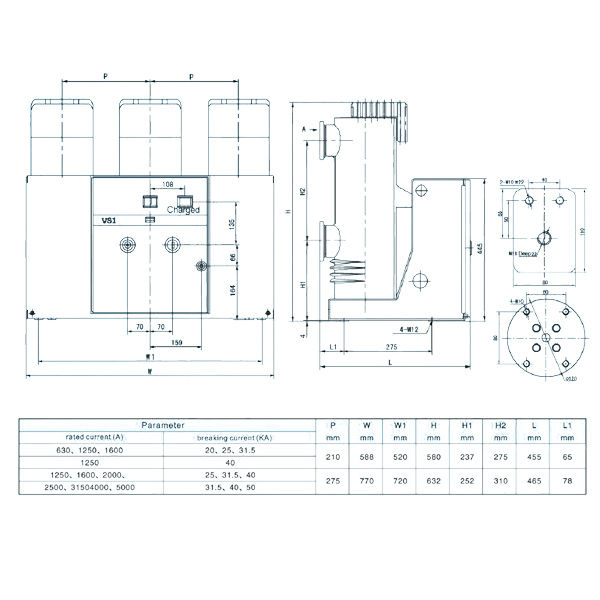

Outline and installation dimension drawing:
Operating mechanism location diagram:
Technical features :
1.The first generation of the builtin type handcart in China with independent intellectual rights .It features a matured technology and high price/performance ratio .
2.The key parts adopt nickel-phosphorous alloy plating with perfect wear resistance and corrosion resistance .
3.The key parts are made by ourselves to ensure the products to meet the designing requirement of design
4.The cylindrical composite insulation main circuit features small volume,free of maintenance and few service.
