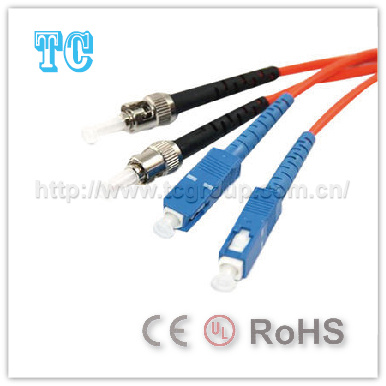

Ce Certificate Sc to St Multi-Mode Optical Fiber Jumper

Name: Ce Certificate Sc to St Multi-Mode Optical Fiber Jumper
Brand: all-electronics-online.com
SKU: 791710605
Availability: InStock
Rating: 5 (143 reviews)

Price:	US $ 1.4-1.5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	OPC-8930
Color:	Orange
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	SC-ST
Certification:	CCC

Product Description

Application range:
It can be used for jumper connection between the hardware equipment and the equipment, or from the equipment to the optical fiber wiring link in the fiber wiring system
The optical fiber jumper is mainly divided into single-mode fiber jumper, multi-mode fiber jumper and 10G multi-mode fiber jumper
Adopting single-mode in common condition
The jumper cable is yellow, and joint and protective jacket are blue, the multi-mode fiber jumper is orange, and its joint and protective jacket are cream-colored or black
Executive standards: YD/T 926.3, IEC 60332-3C, IEC 60754-2, IEC 61034-2
Product description:
The products shall be terminated and tested in advance by the plant to ensure its transmission performance
Insertion loss of less than 0.3dB
It supports quick configuration and networking, to reduce site installation time
Fireproof and flame retardance meet IEC 60332-3C standard
Return loss is higher than 50dB
The non-corrosive gas emission meets IEC 60754-2 standard
LSOH emission meets IEC 61034-2 standard
Adopting standard LC, SC, ST, FC connector
1-core, 2-core or customizing products as per customer's requirements
The length, fiber core number, physical structure can be customized

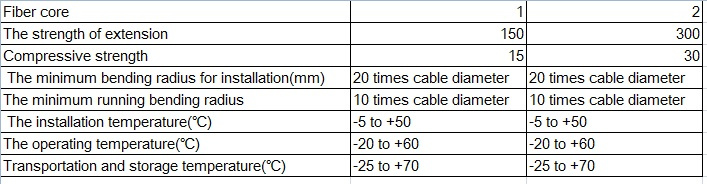

Mechanical capacity:

Trust our over 26 years' experience

ISO-compliant UL, RoHS and REACH marks OEM/ODM services

Operating since 2002

Shanghai Tiancheng Communication Technology Co. Ltd was established in 2002. We belong to TC Smart System Group, which is committed to intelligent building of wiring products, IP network audio and video broadcast products, wiring harness products, light device product R&D, designing and manufacturing.

Specialized in Network Cabling Broadband Products

We are located in Songjiang Industrial Park. At present, we are not only a one of the leading industries in R&D, production and testing equipment, but also we are built with high-end equipment research and development laboratory. At the same time, we have years of experience in network cable broadband products development, production and management of professional personnel.

Holding More than 10 Years of Experience

With 10 years of trials and hardships, we, through the unremitting efforts and pursuit of all employees, achieved many honors, and have become one of the industry leaders. In various fields, we created numerous works of classic models, high-grade projects and higher shares, such as the Beijing 2008 Olympic Games main venue - the National Stadium, or the bird's nest, the Olympic Village, "TC Smart System Group", and have become the mainstream brands of weak electricity cabling in local areas.

Contact us today to know more.
