CE Certificate Supplier Multi Core Pure Copper Flexible Electrical Wire

Name: CE Certificate Supplier Multi Core Pure Copper Flexible Electrical Wire
Brand: all-electronics-online.com
SKU: 707537762
Availability: InStock
Rating: 4.6 (59 reviews)

Price:	US $ 0.051-0.864/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	RV or RVV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
None:	None
Type:	Insulated
Application:	Underground
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	RoHS
Conductor Type:	Solid or Stranded
Range Of Application:	household
Brand:	Jytop

Product Description

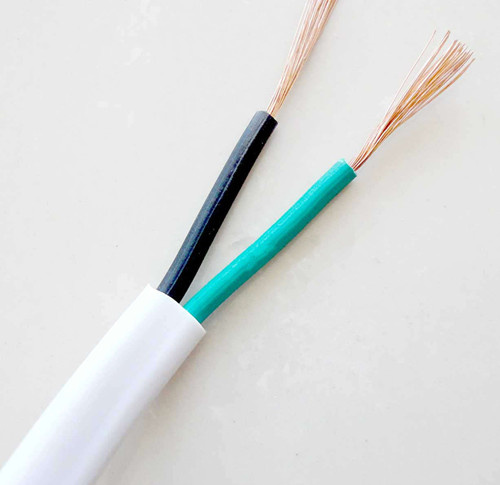

CE certificate supplier multi core pure copper wire flexible electrical cable wire:

Application field:
1.To supply the power for lights,air conditioners,refrigerators.
2.Decoration lights.
3.Short span electricity transmission
4.For electrical appliance,instrument and telecom devices.
Conductor:Pure Copper(Aluminum,Copper clad aluminum also supply)
Insulation:PVC/PE/HDPE/XLPE
Apply voltage:300/300V 300/500V 450/750V
Working Conditions
Working temperature:Not more than 105 C for RV-105 model.The other no more than 70 C.
Model and Name

Model	Name
RV	Copper Core PVC Insulation Flexible Wire
RVB	Copper Core PVC Insulation Flat Flexible Wire
RVS	Copper Core PVC Insulation Twisted Flexible Wire
RVV	Copper Core PVC Insulation Sheath Round Flexible Wire
RVVB	Copper Core PVC Insulation Sheath Flat Flexible Wire
RV-90	Copper Core Heat-resistak Losc PVC Flexible Wire

Specification Size and Technical Data

Nominal Section (mm2)	Core Structure No./Dia.(mm)	Max Dia.(mm)	Reference Weight(kg/km)
0.3	16/0.15	2.3	6.4
0.4	23/0.15	2.5	8.1
0.5	16/0.2	2.6	9.1
0.75	24/0.2	2.8	12.2
1.0	32/0.2	3.0	15.1

RV 450/750V

Nominal Section (mm2)	Core Structure No./Dia.(mm)	Max Dia.(mm)	Reference Weight(kg/km)
1.5	30/0.25	3.5	21.4
2.5	49/0.25	4.2	24.5
4	56/0.20	4.8	51.8
6	84/0.30	6.4	74.1
10	84/0.30	8.0	12.4

Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,

PRODUCTS & STANDARDS & International Market:

1). Bare Conductor:

All Aluminum Conductor (AAC),

All Aluminum Alloy Conductor (AAAC),

Aluminum Conductor Steel Reinforced (ACSR),

Aluminum Alloy Conductor Steel Reinforced (AACSR),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),

Aluminum Conductor Aluminum Alloy Reinforced (ACAR),

Aluminum Conductor Steel Supported (ACSS),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)

All Copper Conductors(ACC),

Aluminum Coated Steel Wire(ACS),

Copper Coated Steel Wire(CCS),

Copper Coated Aluminum(CCA),

Galvanized Steel Wire(GSW),

Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire

2). Overhead Cable:

Aerial Bundled Cable (ABC).

XLPE Cable,

Flexible Cable,

Single Core Cable,

2 Core Cable,

3 Core Cable,

4 Core Cable.

3). Building wire and cable:

THHN /THWN Cable

TW/THW Cable

PVC Insulated Wire,

XLPE Insulated cable.

4. Power Cable:

Armored /Non-armored Power cable

AWA Cable

SWA Cable

Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.

We can meet customers' special requirements, and provided OEM service.

Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.

We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.

Company website: www.jytopcable.com
