Shanghai Tiancheng Communication Technology Co., Ltd. >> Ce Certificate Unshielded CAT6A Keystone

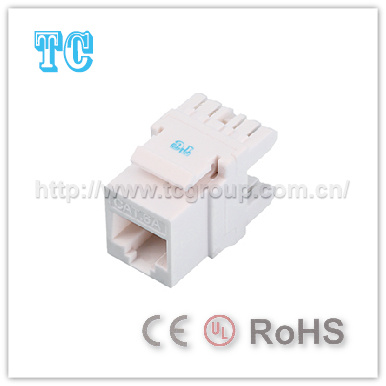

Ce Certificate Unshielded CAT6A Keystone

Ce Certificate Unshielded CAT6A Keystone
Price: US $ 0.55-0.56/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: KS-1265
Color: White, Blue, Orange, Green, Red, Yellow
Usage: Server
Type: Wired
Support Network: Ethernet
Certification: GS
Condition: New
Information Content: Data, Voice,Video

Product Description

Executive standards:
YD/T926.3, ISO/IEC 11801, TIA/EIA568-C
Product characteristics:
    Unshielded cat6e standard RJ45 information module
    180° IDC routing mode
    Adopting high-strength PC material which meets UL94V-0
    Supporting T568A and T568B wiring modes
    50 micro-inch gold plating needle
    Plug times>2000 times
    Termination times>750 times
    Accepting 22-26 wire-gauge cables

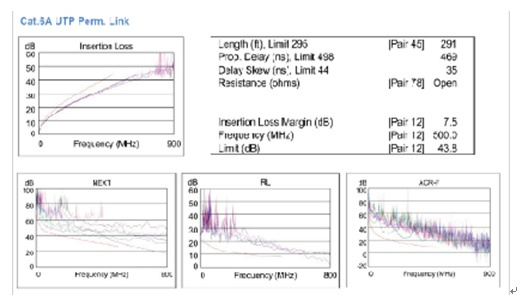

    Supporting 500MHz bandwidth
Trust our over 26 years' experience

ISO-compliant UL, RoHS and REACH marks OEM/ODM services

Operating since 2002

Shanghai Tiancheng Communication Technology Co. Ltd was established in 2002. We belong to TC Smart System Group, which is committed to intelligent building of wiring products, IP network audio and video broadcast products, wiring harness products, light device product R&D, designing and manufacturing.

Specialized in Network Cabling Broadband Products

We are located in Songjiang Industrial Park. At present, we are not only a one of the leading industries in R&D, production and testing equipment, but also we are built with high-end equipment research and development laboratory. At the same time, we have years of experience in network cable broadband products development, production and management of professional personnel.

Holding More than 10 Years of Experience

With 10 years of trials and hardships, we, through the unremitting efforts and pursuit of all employees, achieved many honors, and have become one of the industry leaders. In various fields, we created numerous works of classic models, high-grade projects and higher shares, such as the Beijing 2008 Olympic Games main venue - the National Stadium, or the bird's nest, the Olympic Village, "TC Smart System Group", and have become the mainstream brands of weak electricity cabling in local areas.

Contact us today to know more.
