| Prod Model: |
6-CNJ-200 |
| Battery Size: |
522*240*219*244mm |
| Battery Weight: |
57.4kgs |
| Warranty: |
3 Years |
| Design Life: |
8 Years |
| Terminal: |
Copper Terminal M8 or Cable |
| Maintenance Free: |
Yes |
| Type: |
Lead-Acid Batteries |
| Usage: |
Lighting |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

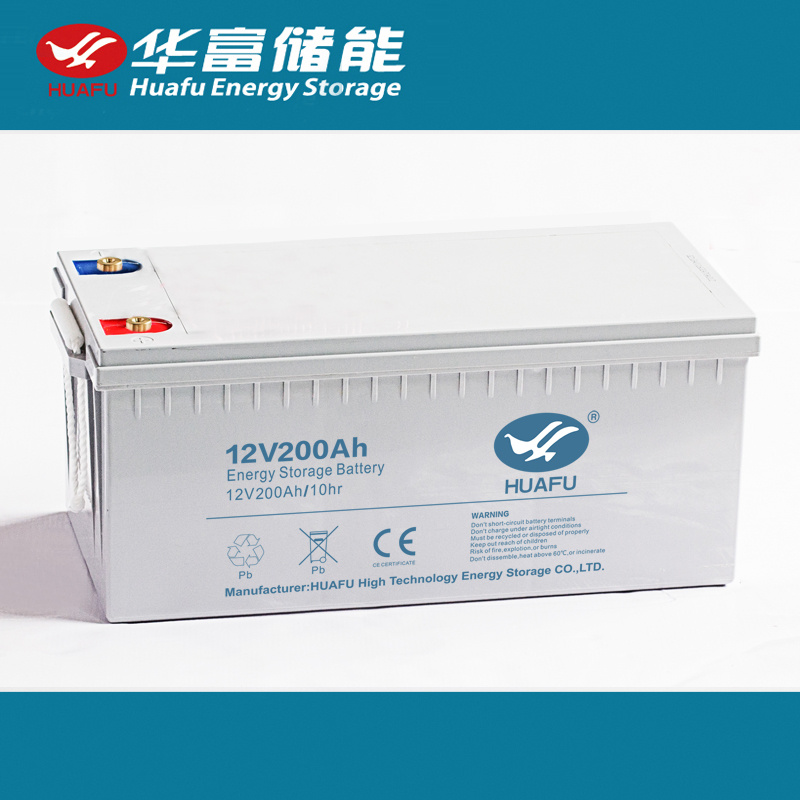

CE Certificated Rechargeable 12V 200ah Deep Cycle Solar Battery
Product Description
HUAFU 12V200ah Battery: 1). Gel Battery/Deep Cycle Battery/ Sealed Battery / Maintenance Free Battery / Rechargeable Battery / Lead Battery 2). Warranty:
3 Year. 3). OEM / ODM 4). CE UL RoHS approval 5). Used for: Solar Energy Storage
Battery Construction
| Element | Electrolyte | Positive Plate | Negative Plate | Container |
| Material | GEL | Lead dioxide | lead | ABS |
| |
| Element | Cover | Safety valve | Terminal/Wire | Separator |
| Material | ABS | Rubber | Copper | Fiberglass |
12V200Ah Solar Battery Specification
| Rated Voltage | 12V |
| Rated capacity (10-hour rate) | 200Ah |
| Dimension | Length | 522mm (20.57inches) |
| Width | 240mm (9.46inches) |
| Height | 219mm (8.63inches) |
| Total Height (with terminal) | 244mm (9.61inches) |
| Weight Approx. | 57.7Kgs (126.94Ibs) |
| Terminal (two kinds) | Cable(6.0 mm²×2 m) | M8-20 copper terminal |
Maintenance Free VRLA Battery Feature
1). AGM (Absorbing Glass Mat) technology of which the electrolyte is absorbed.
2). Maintenance-free operation - no addition of water to the electrolyte is required.
3). Sealed Battery with Valve Regulated Construction.Can be mounted in any orientation.
4). Wide range of operating temperatures with temperature compensated charging.
5). Computer designed lead, calcium tin alloy grid for high power density.
6). Extended service life due to low self-discharge levels.
8). Available in flame retardant ABS material for the battery case
12V200AH GEL Battery Packing Info.
| In carton | packing in wooden Box |
| Pcs/Ctn | Ctn Size | Ctns/Box | Box Size |
| 1 | 535*253*283mm | 24 | 1120*1070*1020mm |
| |
Huafu Company Info.
HUAFU Group is a high-tech enterprise focus on off-grid solar power system solutions and a leading manufacturer
of energy storage battery since the establishment of the 1990s. We have passed certifications: CE, RoHS, ISO9001, UL etc.
In battery manufacturing industry, HUAFU Group ranks NO.1 in the sales of gel battery in China and has more than
20 years of experience in producing VRLA AGM/Gel solar battery, VRLA AGM/Gel Backup battery series (UPS), EV
battery, OPzS, OPzV, Lithium -Iron and lead-carbon battery, etc. totally more than 400 models, and all of them have
been intensively sold to Southeast Asia, Central and South America, Africa, Middle East, Oceania, etc., and gain high
praise from all the distributors and end users.
In system solution field, HUAFU Group has developed and produced many series of products including integrated
System of street lighting (ISSL), All- in- one integrated solar home system, Off-grid Solar UPS Hybrid System etc.
totally more than 80 models.
Huafu High Technology Energy Storage Co., Ltd is a leader in battery industry for energy storage in China, manufacturer ranks NO. 1 in sales of GEL battery in Chinses market, with more than 20 years experience in producing and exporting environmental friendly Rechargeable Valve Regulated Lead Acid (VRLA) Battery, AGM Sealed Lead Acid (SLA) Batteries, Deep cycle Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, Specialty batteries for plateaus, OPzV Battery, OPzS Batteries, Telecom Batteries, Lead Carbon, Lithium batteries.
Established in 1990, located in Gaoyou Industrical Park of 180000 square meters in Jiangsu, China. Today, Huafu has nearly 200 full-time R&D personnel, nearly 100 part-time R&D personnel, has built a national post-doctoral workstaions, technology research institution for energy storage materials. With International advanced automatic equipment and excellent producing process, Huafu produces an annual capacity of approximately 4, 000, 000kVAh.
Lead battery & Lithium Battery are our major prodcuts: Classify our lead battery into Energy Storage Battery Series, Back-Up Battery, EV Battery. The Energy Storage Battery Series includes 2V and 12V AMG lead acid battery, AGM GEL Battery, Pure Gel Battery, Solar Deep Cycle battery, Lead-Carbon battery, Heat-tolerant battery, Tubular OPZV battery, Tubular OPZS battery. The Back-up battery series includes 2V and 12V VRLA Battery, Telecom Front terminal battery. Our EV battery includes 6V, 8V, 12V battery for electric vehicle, electric forklift, etc. Lithium battery includes LiFePO4, Ternary lithium power battery.
In the passed 20 years, HUAFU staffs has been insisted on gaining the believe of customers by our quality. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognition, like UK's IEC60896.21/22. IEC61427, CE authentication of the European Union, UL recognition of the USA, Soncap certification for Nigeria and Golden Sunflower. RoHS, SGS, etc.
HUAFU ranks NO. 1 in sales of GEL battery in Chinese market. We has been cooperating with China Mobile Limited & Unicom Limited, ZTE Corporation, China Tower, Huawei Technologies, Emerson. Export from 10 years ago, near to Shanghai Port, Our long-term business ship has been built with Philips. Our products has also sold to USA, Brazil, Russia, Iran, Korea, Thailand, South Africa, Nigeria, Italy, Greece, Germany, Spain, etc.
Best Quality, Good Service, In time Support, Competitive Price. Choose Us!
