Ce Fan Coil Thermostat with Linkage (S602H1)
| Price: |
US $ 17.066-18.133/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
350/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
S602H1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Voltage: |
230VAC± 10%, 50Hz/60Hz |
| Current Load: |
<3A (Resistive Load) |
| Temperature Controlling Range: |
5~35ºC |
| Temperature Controlling Precision: |
± 1ºC |
Product Description

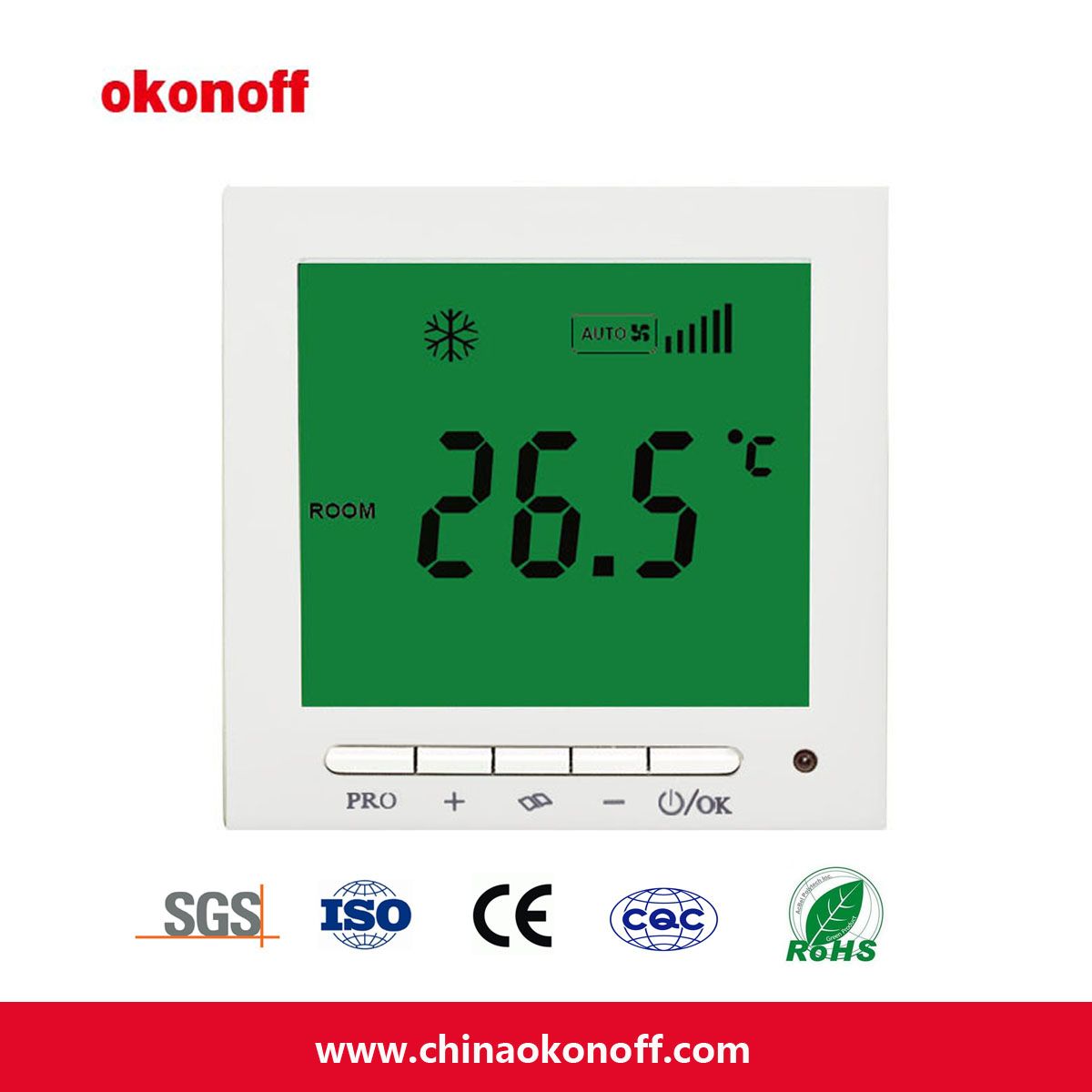

CE Fan Coil Thermostat (S602H1)
1. Product Summary:
S600 series of digital thermostats are always applied to control the fan coil of air-conditioning, motorized valve and wind valve in the HVAC system in the business, industrial and civil constructions. We suggest you use this product together with our motorized valves, such as DQ200 series, CKF7320T series or CHV300 series of valves and so on.
2. Technical Parameter:
Working Voltage: 230VAC± 10%, 50Hz/60Hz
Current Load: <3A (Resistive Load)
Temperature Controlling Range: 5~35º C
Sensing Element: NTC Resistance
Temperature Controlling Precision: ± 1º C
Surface Material: PC engineer plastic
External Dimension: 86* 86* 40.5mm(W*H*L)
Installation: Standard 86 Junction Box
Working Environment: Temperature: -5~55º C;
Relative Humidity: RH<92%
3. Characteristic:
3 speed fan controlPower On/off switch, with an options to install a remote port. Mode: Heat/cool can change overFan speed: High-Medium-Low-AutoThe surface color: There are 5 different colors of each model: Elegant Gold; Elegant Silver; Milk white; Matte grey; Dark grey. Please choose the color you would like before your order.
| Model | Fan Coil | Backlight | Timing | Mainframe Linked Function | Remote Control | Card-Inserted
(For Hotel) |
| S600 | 2-Pipe | | √ | | | |
| S602E | 2-Pipe | √ | √ | | | |
| S602R | 2-Pipe | √ | √ | | √ | |
| S602BF | 4-Pipe | √ | √ | | | |
| S602H | 2-Pipe | √ | √ | √ | | √ |
| S602H1 | 2-Pipe | √ | √ | √ | | |
| S602H2 | 2-Pipe | √ | √ | | | √ |
