| Prod Model: |
LY-8040C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Approved: |
Ce RoHS |
| Body Color: |
Black and White Available |
| Warranty: |
1 Year |
| Application: |
TV |
| Signal Transmission: |
IR Remote Control |
| Type: |
Button |
| Universal: |
Universal |
| Transmission Distance: |
<50m |
| Voltage: |
12V |
| Material: |
Metal |
| Battery Type: |
Button Battery |
Product Description

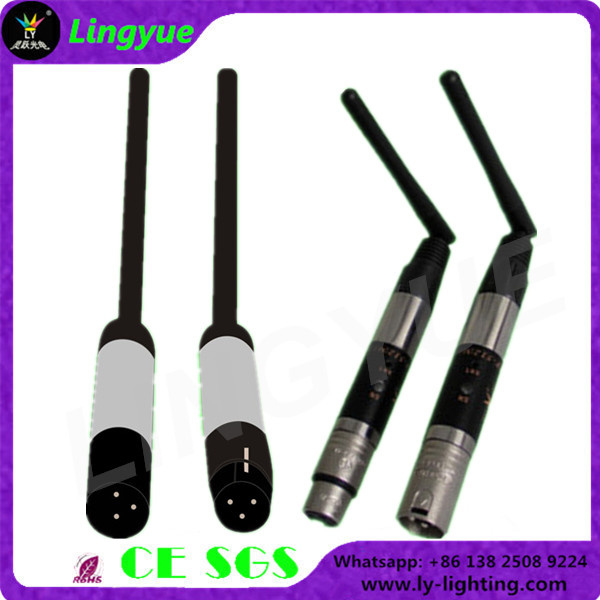

2.4G 3-pin XLR Wireless DMX512 stage light controller
Specifications:
Features:
DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data (generated by console) by wireless way. No time delay when signal data is transmitting, signal data is real time and reliably. This product adopts a 2.4G ISM frequency section. High effective GFSK modulate, communication design; 126 channels jumping frequency automatically, high anti-jamming ability.
Specification:
1. 2.4G wireless DMX512 R/T
2.126 channels jumping frequency automatically, high anti-jamming ability. To ensure works reliability
3.7 groups ID code settable, User can use 7 groups individual wireless net without any interfere.
4. Each other in the same place...(Tricolor LED displaying Indicators)
5. Input voltage: 5VDC 500mA MIN
6. Communication distance: 400M (visible distance)
7. Work frequency section: 2.4G ISM, 126 channels. Frequency section
8. Max transmitting power rate: 20dBm
Operating manual:
ID code and LED color corresponding relationship:
1: RED
2: GREEN
3: RED+GREEN
4: BLUE
5: RED+BLUE
6: GREEN+BLUE
7: RED+GREEN+BLUE
1. Press momentary switch above the side led indicator to indicate ID setting
2. Press again to set IC, to the color ID desired, adding 1 each time you press the switch will advance the color ID code.
3. Working condition:
LED constant lit up: No DMX or wireless signal.
Red LED flash: Transmitting.
Green LED flash: Receiving
4. RF frequency 2.400 - 2.525G, total 126 channels, it's searching automatically,
5. ID Code "1-7" groups ID code, press 'KEY' for setting, it only can work under same ID code of transmitter and receiver. (Same LED Color)
Establishing Communication:
1. Power on DMX512 wireless received board first and then following to power up the transmitted boards.
2. Press "Key" button to set same ID value of transmitted board and received board. Please use different ID value if you need use more than 1 group wireless universals at same time in same place.
3. The red LED flashes when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section. Green LED flash till received corrected same ID value, LED flash more fast once DMX data more fast.
4. Communication was established correctly.
Please note some DMX fixtures need to be placed into slave mode for proper DMX control. If in the master mode they will send a DMX signal out the xlr jacks causing the auto scan transmitter/receivers to go into a transmitter mode due to the dmx signal being present.
This unit is for Indoor use only.
| Price term | EXW price |
| Payment terms | TT/Paypal/Western union |
| Shipping Way | 1. by Express ( DHL, Fedex, Ups, EMS)
2. by Air
3. by Sea |
| Sample time | 1-3 business days |
Production
time | 5-20 days, but ultimately subject to order quantity |
| Packing | 1. Using EPE packing the goods in case damage
2. Then put it into the Standard carton
3. Flightcase optional |
| Warranty | 1 year |
After-sell
Service | 1.If there is a problem with the product, please describe it and sent the necessary picture or video to us for analyzing.
2. Then we will guide you how to fix it and provide free accessories if needed.
3. For big problem,you can send the products to our factory,then we will send a new one to you! |
