Ce RoHS Approval Energy Saving Semiconductor Heater Hg140 15W to 150W

Name: Ce RoHS Approval Energy Saving Semiconductor Heater Hg140 15W to 150W
Brand: all-electronics-online.com
SKU: 818173815
Availability: InStock
Rating: 4.7 (83 reviews)

Price:	US $ 4.25-8.7/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HG140
Operating Voltage:	120-240V AC/DC* (Min. 110V, Max.265V)
Power(W):	15W to 150W
Heating Element:	PTC Resistor - Temperature Limiting
Mounting:	Clip for 35mm DIN Rail
OEM:	Yes

Product Description

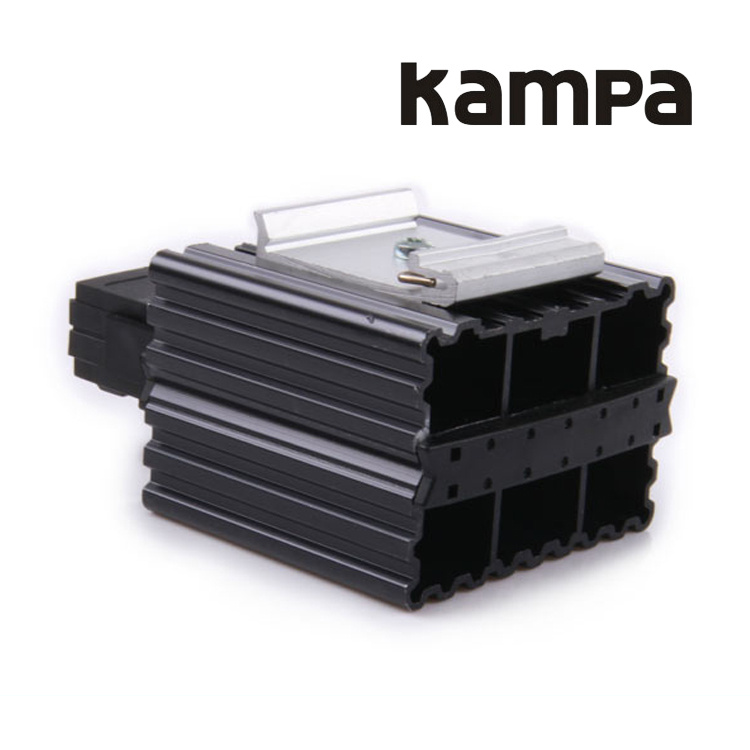

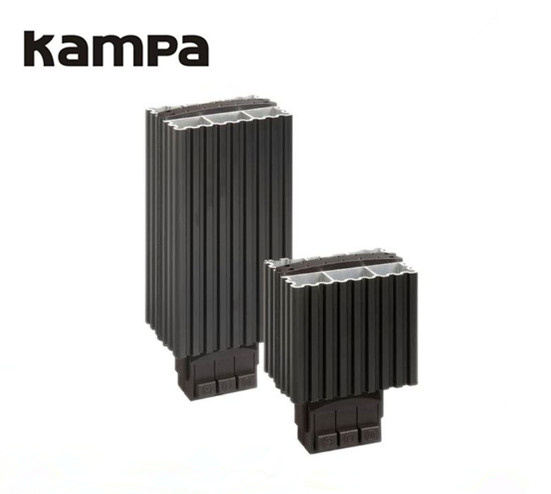

CE ROHS Approval Energy Saving Semiconductor Heater HG140 15W to 150W

Features
Semiconductor Heater HG 140 Series
Pressure clamp connectors
Dynamic heating up
Wide voltage range
Energy saving
Clip fixing
Quick installation
Description
These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes the heat evenly. The heaters are designed for permanent operation. Pressure clamb connectors save time and simplify installation.
Technical Data

Operating voltage	120-240V AC/DC* (min. 110V, max. 265V)
Heating element	PTC resistor - temperature limiting
Heater body	extruded aluminium profile, anodised
Connection	3 pressure clamps for stranded wire 0.5-1.5mm² (with wire end ferrule) and rigid wire 0.5- 2.5mm²
Connection
Connection casing	plastic according to UL94 V-0, black
Mounting	clip for 35mm DIN rail, EN 60715
Fitting position	vertical airflow (air outlet up, connection on bottom)
Operating/Storage temperature	-45 to +70°C (-49 to +158°F)
Operating/Storage humidity	max. 90% RH (non-condensing)
Protection type/Protection class	IP20 / I (earthed)
Note	other voltages on request

Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.
