| Prod Model: |
SCTK691C |
| Rated Input: |
0.5A-1000A |
| Rated Output: |
0.333V(AV) or 0-5A |
| Frequency: |
50-2.5kHz |
| Measuring Range: |
10%in-130%in |
| Bobbin: |
PBT |
| Case: |
PC/UL94-V0 |
| Internal Structure: |
Epoxy |
| Core: |
Permalloy |
| Application: |
Instrument |
| Type: |
Current Transformer |
| Phase: |
Single |
| Winding Form: |
Tie |
Product Description

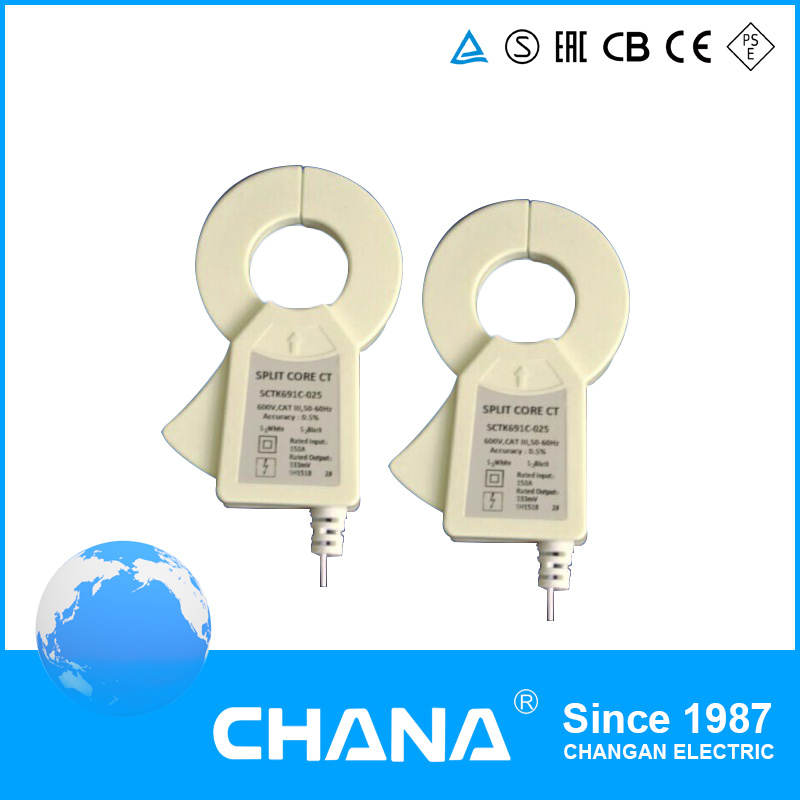

SCTK691C Series Split Core Current Transformers
1. Application
SCTK691C series retro-fit (split-core) current transformer has been specially designed to facilitate their installation in new or already existing net works.They may be installed without opening any cable or bus-bar circuit. An internal precision resistor across the secondary winding of the CT provides a low safe voltage output. It can save time and the installation costs.
Current measurement, monitoring and protection for electrical wiring and equipment.Current and power measurement for electric motors, lighting, air compressor,heating and ventilation system, air - condition equipment and automation control system.Current , power and energy monitoring device.
Relay protection device.
2. Feature
The structure of the self-locking, safe, easy to install, portable
Wide inner window, allowing clamping of big cables or bus-bars
Wide range of sizes to accommodate all the existing installations
3. Technique Index
| Frequency | 50-2.5khz |
| Rated Input | 0.5a-1000a |
| Measuring range | 10%in-130%in |
| Rated Output | 0.333V(AC)or0-5A |
| Ratio | ≤±0.2% |
| Phase angle | ≤±10min |
| Dielectric strength | 5.0kv/1mA/1min |
| Insulation Resistance | DC500V/100MΩ/min |
| Case | PC/UL94-V0 |
| Bobbin | PBT |
| Core | Permalloy |
| Internal sturcture | Epoxy |
| Construction | Tie |
| Operation Temp | -25ºC~+75ºC |
| Operation Humidity | ≤85% |
| Output Connection | Terminal or UL1015 20AWG Wire 1.5m |

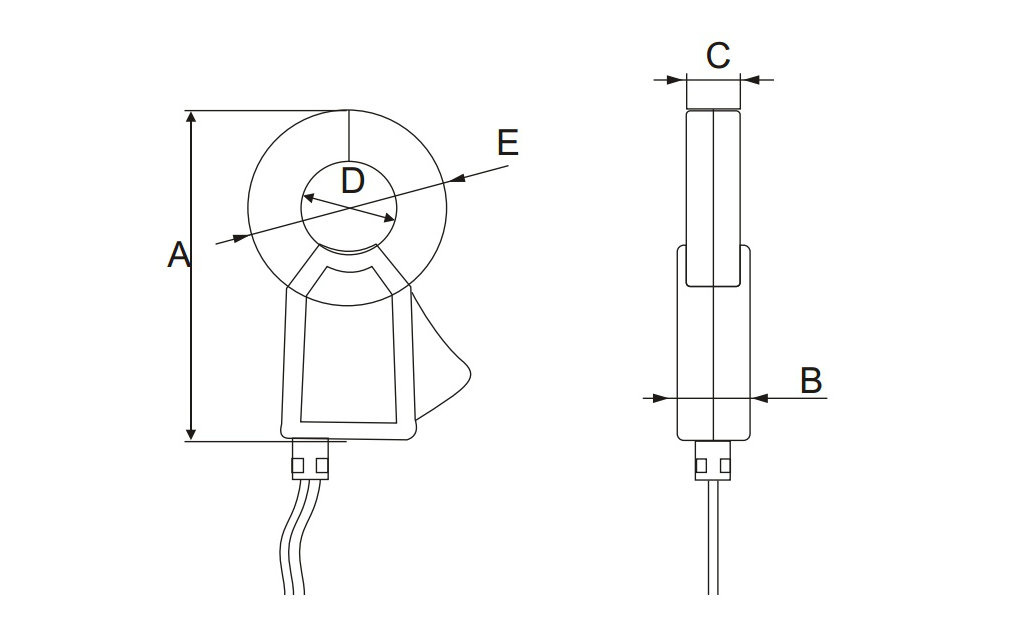

4. Diagram
5. Type Selecion
| Mfg P/N | Rated Input (A) | Output (mA/V) | Accuracy | Dimension (mm) |
| A | B | C | D | E |
| SCTK691C-010 | 0.5-100A | 0.333V/0-50mA | 0.2,0.5,1.0 | 63.0 | 25.0 | 20.0 | 10.0 | 37.0 |
| SCTK691C-016 | 1-250A | 0.333V/0-100mA | 71.0 | 20.0 | 15.0 | 16.0 | 43.0 |
| SCTK691C-025 | 5-400A | 0.333V/0-200mA | 87.0 | 20.0 | 15.0 | 25.0 | 52.0 |
| SCTK691C-036 | 5-630A | 0.333V/0-200mA/1A | 117.0 | 27.0 | 22.0 | 35.0 | 71.0 |
| SCTK691C-050 | 5-1000A | 0.333V/0-500mA/1A/5A | 137.0 | 27.0 | 22.0 | 50.0 | 100.0 |
6. Our Services
A. Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B. After-service:
We pay high attention to your feed back after receive the goods.
We provide 18 months warranty after goods arrive.
We positively revert your complain within 48hours.
C. Professional Sales:
We value every inquiry sent to us, ensure quick competitive offer.
We cooperate with customer to bid tenders. Provide all necessary documents.
We are a sales team, with all technical support from engineer team.
Warranty:
1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Welcome to inquire, negotiate, we will be happy to provide you with the best quality products and personalized service!

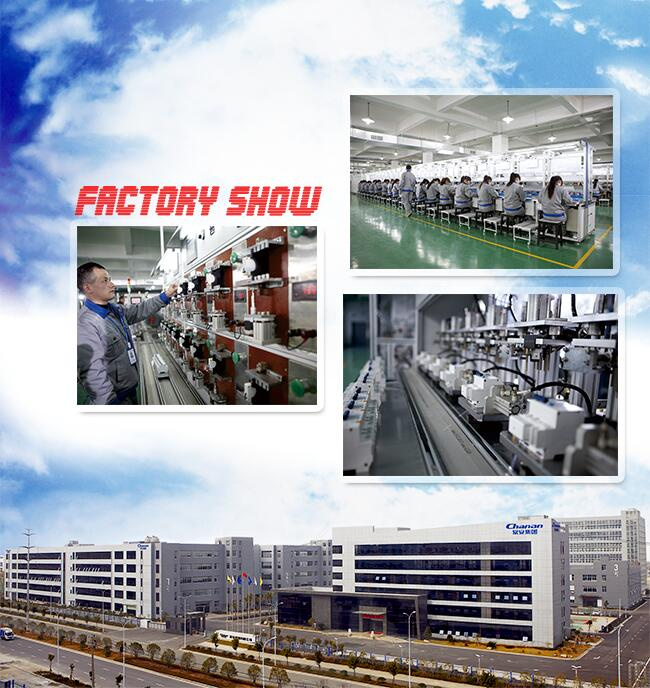

7. Company Profile
