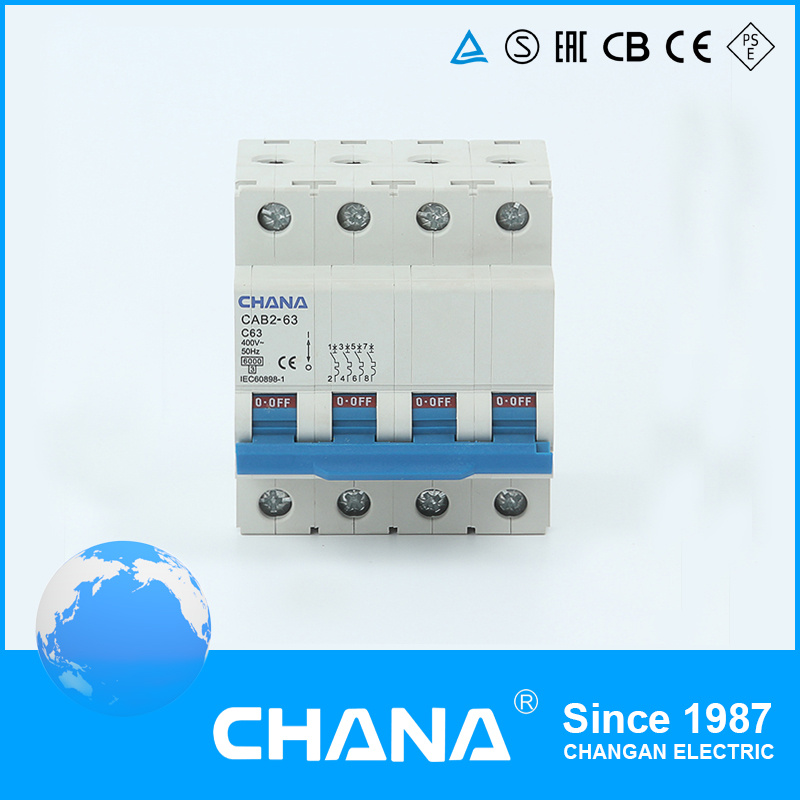

Ce, RoHS Certificated Mini Circuit Breaker Cab2-63
| Price: |
US $ 0.95/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
CAB2-63 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Manufacturer: |
Original Factory |
| Real Reach Breaking Capacity: |
6ka/10ka |
| Production: |
Original Mufacturer |
| Company Credit Rate: |
AAA |
| Customized: |
Acceptable |
| Export Market: |
World |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Structure: |
MCB |
| Certification: |
CCC |
| Installation: |
DIN Rail |
| Poles Number: |
1p, 2p, 3p, 4p |
Product Description
Description For CAB2-63 Mini Circuit Breaker (MCB)ApplicationCAB2-63 Series Miniature Circuit Breaker, apply to rating current 63A or less. It is mainly used for the overloading and short circuit protection in distribution system equipment, solar/photovoltaic power system and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields. In present China, our products in the case grade rating voltage is highest compared to the same products.Specification| Standard | IEC60898-1 |
| Electrical Feature |
| Rated current In | 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63A |
| Poles | 1P, 1P+N, 2P, 3P, 3P+N, 4P |
| Rated voltage Ue | 240/415V |
| Insulation voltage Ui | 500V |
| Rated frequency | 50/60Hz |
| Rated breaking capacity | 6000A |
| Energy limiting class | 3 |
| Rated impulse withstand voltage(1.2/50) Uimp | 4000V |
| Dielectric test voltage at ind. Freq. For 1 min | 2kV |
| Pollution degree | 2 |
| Thermo-magnetic release characteristic | B, C, D |
| Mechanical Feature |
| Electrical life | 4000 |
| Mechanical life | 10000 |
| Protection degree | IP20 |
| Reference temperature for setting of thermal element | 30 º C |
| Ambient temperature (with daily average≤ 35º C) | -5 º C...+40 º C |
| Storage temperature | -25 º C...+70 º C |
| Installation |
| Terminal connection type | Cable/ Pin-type bus bar |
| Terminal size top/bottom for cable | 25 |
| Terminal size top/bottom for bus bar | 25 |
| Tightening torque | 2.0 N*m |
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device |
| Connection | From top and bottom |
| Combination with Accessory |
| Combination with accessories | Auxiliary contact, Shunt release, Under voltage release, Alarm contact |
Our ServicesA. Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B. After-service:
We pay high attention to your feed back after receive the goods.
We provide 18 months warranty after goods arrive.
We positively revert your complain within 48hours.
C. Professional Sales:
We value every inquiry sent to us, ensure quick competitive offer.
We cooperate with customer to bid tenders. Provide all necessary documents.
We are a sales team, with all technical support from engineer team.Shipping:
1. Normally by SEA From NINGBO TO ...
2. Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount is Small.
3. We Provide Drop shipping Service.
4. In order to ensure you receive your order tax free upon import, we can declare lower value according to your demand.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.Payment:1. We usually useT/T (30% deposit before production and 70% to be paid against the copy of B/L).
2.If the Amount is small, you can pay to us by western union/Paypal/Money Gram.
3. L/C also acceptableWarranty:1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goodsOur Services
A. Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B. After-service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 18 months warranty after goods arrive.
We Positively Revert Your Complain Within 48hours.
C. Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With All Technical Support From Engineer Team.FAQQ 1. What's the payment term?
A. We accept tt,30% deposit and 70% balance against the copy of b/l.
Q 2. How's the delivery time?
A. Usually it will take about 25 days for production.
Q 3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q 4. Could you offer form a? or c/o?
A. It's totally not a? problem. We can prepare relative documents to foreign affairs office or other office??to apply for this certificate.
Q 5. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do oem.
Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.
Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.
All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".
We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
