Ce RoHS Certificated Silicon Steel Current Transformer

Name: Ce RoHS Certificated Silicon Steel Current Transformer
Brand: all-electronics-online.com
SKU: 775119575
Availability: InStock
Rating: 4.3 (38 reviews)

Price:	US $ 4.51-5.21/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CTBH31
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Input:	5-5000A
Frequency:	50-400Hz
Rated Output:	0-5A
Bobbin:	PBT
Application:	Power
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Auto-transformer
Certification:	CE RoHS
Brand:	Chana

Product Description

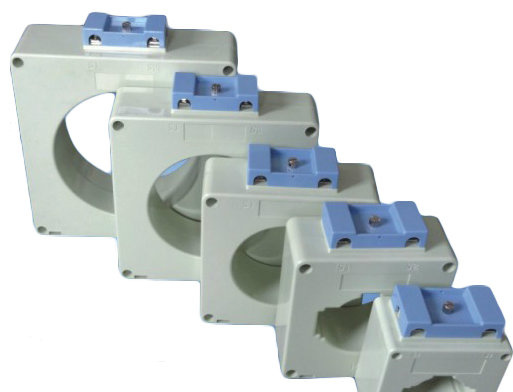

Input 5-5000A Output 0-5A Low Voltage Mini Current Transformers

1. Application

AMC series current transformer is compact .smaller than other models with the current ratio of the transformer is small,clamshell-style terminal cover is well protected by the second terminal.With related accessories you can use Din rail mounting,a current from 5A to 2500A

Current measurement, monitoring and protection for electrical wiring and equipment.Current and power measurement for electric motors,lighting, air compressor,heating and ventilation system, air - condition equipment and automation control system.Current , power and energy monitoring device.
Relay protection device.

2. Feature

Safe, easy to install, portable
Wide inner window, allowing clamping of big cables or bus-bars
Wide range of sizes to accommodate all the existing installations

3. Technique Index

Frequency	50-400hz
Rated Input	5a-5000a
Measuring range	5%in-130%in
Rated Output	0-5A
Ratio	≤±0.1%
Phase angle	≤±5min
Dielectric strength	2.5kv/1mA/1min
Insulation Resistance	DC500V/100MΩ/min

Case	PC/UL94-V0
Bobbin	PBT
Core	Silicon steel
Internal structure	Epoxy
Construction	Screw
Operating Temp	-25ºC~+75ºC
Operating Humidity	<=85%
Output Connection	Terminal

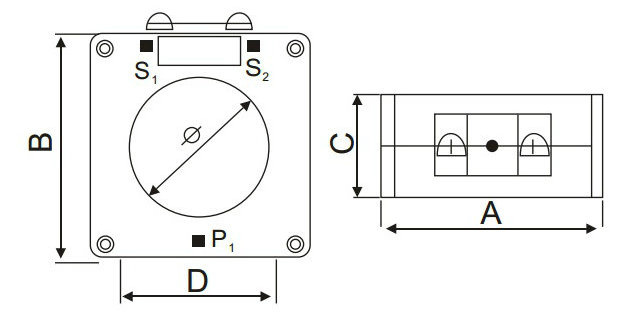

4. Dimension(mm)

5. Type Selection

Mfg P/N	Rated Input	Out Put	Accuracy	Dimension(mm)
Mfg P/N	Rated Input	Out Put	Accuracy	ø	A	B	C	D
CTBH31-020	5-200A	1A/5A	0.1 0.2 0.5 1.0	25	60	67	35	32
CTBH31-030	5-600A			32	75	82	45	45
CTBH31-050	5-1000A			51	102	110	45	66
CTBH31-070	5-1500A			73	118	120	45	82
CTBH31-090	5-2000A			93	145	148	45	109
CTBH31-110	5-3000A			114	165	167	55	129
CTBH31-130	5-4000A			132	200	201	55	162
