| Prod Model: |
SCTK661 |
| Rated Input: |
0.5A-630A |
| Measuring Range: |
10%in-130%in |
| Frequency: |
50-2.5kHz |
| Rated Output: |
0.333V(AC)or 0-500mA |
| Case: |
PC/UL94-V0 |
| Bobbin: |
PC |
| Construction: |
Tie |
| Core: |
Permalloy |
| Internal Structure: |
Epoxy |
| Application: |
Instrument |
| Type: |
Current Transformer |
| Phase: |
Single |
| Operation Condition: |
Power |
| Usage: |
Single-Phase Transformer |
| Winding Form: |
Tie |
Product Description

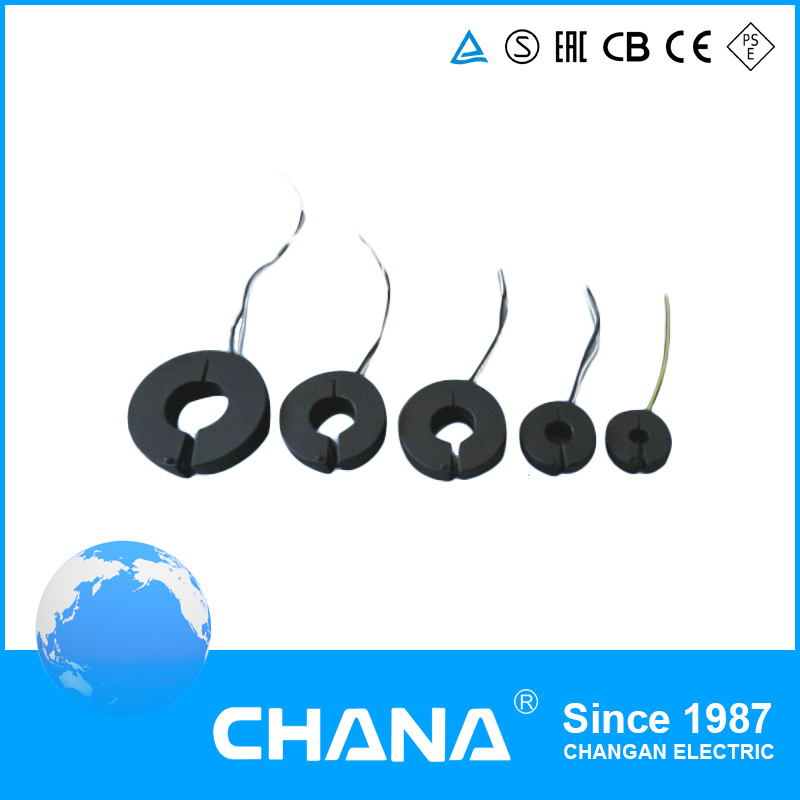

Electric 0.5-630A 0-500mA Split Core Power Current Transformer
1. Application
SCTK661 series retro-fit (split-core) current transformer has been specially designed to facilitate their installation in new or already existing net works.They may be installed without opening any cable or bus-bar circuit. An internal precision resistor across the secondary winding of the CT provides a low safe voltage output. It can save time and the installation costs.
Current measurement, monitoring and protection for electrical wiring and equipment.Current and power measurement for electric motors,lighting, air compressor,heating and ventilation system, air - condition equipment and automation control system.Current , power and energy monitoring device.Relay protection device.
2. FeatureThe structure of the self-locking , safe, easy to install, portable Wide inner window, allowing clamping of big cables or bus-bars Wide range of sizes to accommodate all the existing installations.
3. Technique Index | Frequency | 50-2.5khz |
| Rated Input | 0.5a-630a |
| Measuring range | 10%in-130%in |
| Rated Output | 0.333v(AC) or 0-500mA |
| Ratio | ≤±0.1% |
| Phase angle | ≤±10min |
| Dielectric strength | 2.5kv/1mA/1min |
| Insulation Resistance | DC500V/100MΩ/min |
| Case | PC/UL94-V0 |
| Bobbin | PC |
| Core | Permalloy |
| Internal sturcture | Epoxy |
| Construction | Tie |
| Operating Temp | -25ºC~+75ºC |
| Operating Humidity | ≤85% |
| Output Connection | UL1015 22AWG Wire (twinsted wire) 2.5m |

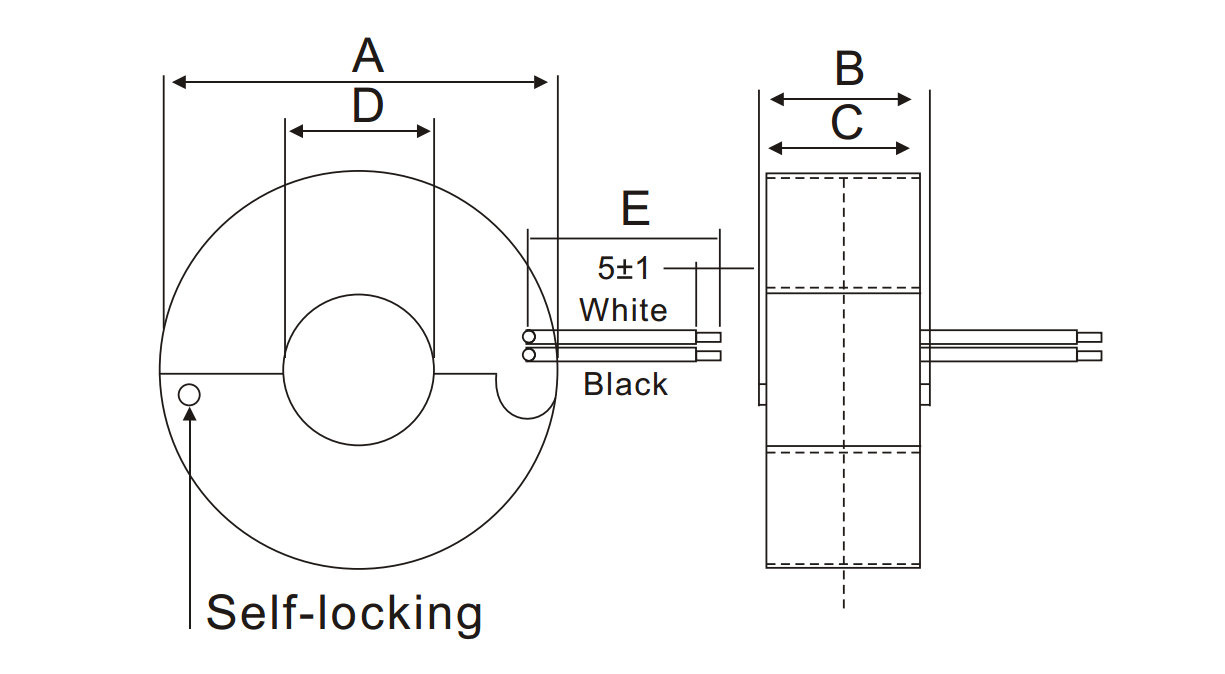

4. Diagram
5. Type Selecion | Mfg P/N | Rated Input (A) | Output (mA/V) | Accuracy | Dimension (mm) |
| A | B | C | D | E |
| SCTK661A-008 | 0.5-100A
(1, 5, 10, 30, 50) | 0.333V/0-50mA | 0.2,0.5,1.0 | 36.0 | 22.0 | 20.0 | 8.0 | 2500 |
| SCTK661B-013 | 1-100A
(5, 10, 50, 75, 100) | 0.333V/0-100mA | 45.0 | 22.0 | 20.0 | 13.0 | 2500 |
| SCTK661C-019 | 5-250A
(10,100,200,250,400) | 0.333V/0-200mA | 60.0 | 22.0 | 20.0 | 19.0 | 2500 |
| SCTK66D-023 | 5-400A
(10,100,200,250,400) | 0.333V/0-200mA | 60.0 | 22.0 | 20.0 | 23.0 | 2500 |
| SCTK661E-032 | 10-630A
(20,100,250,400,600) | 0.333V/0-500mA | 76.0 | 22.0 | 20.0 | 32.0 | 2500 |
6. Our ServicesA. Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B. After-service:
We pay high attention to your feed back after receive the goods.
We provide 18 months warranty after goods arrive.
We positively revert your complain within 48hours.
C. Professional Sales:
We value every inquiry sent to us, ensure quick competitive offer.
We cooperate with customer to bid tenders. Provide all necessary documents.
We are a sales team, with all technical support from engineer team.
Warranty:
1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Welcome to inquire, negotiate, we will be happy to provide you with the best quality products and personalized service!
