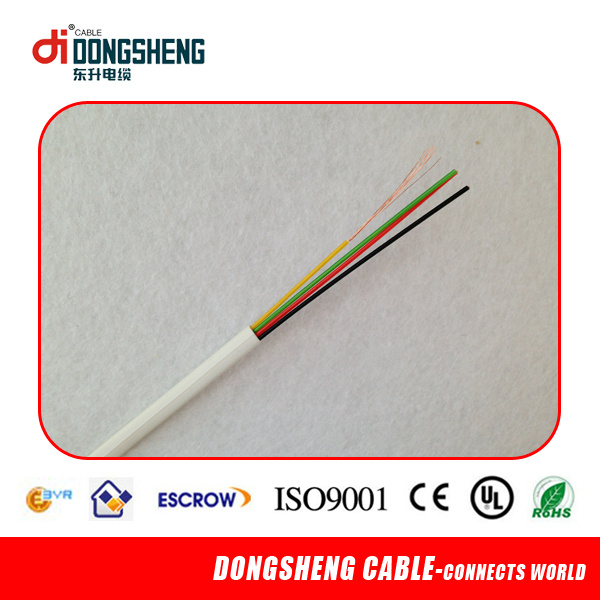

CE, RoHS, ISO 4c Flat Telephone Cable

Prod Model:	DSC-4C Flat Telephone Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
CE,RoHS,ISO Telephone Cable:	2 Pairs Indoor Telephone Cable
Telephone Cable:	2 Pairs Outdoor Telephone Cable
Telephone Wire:	4c Flat Telephone Cable
Drop Cable:	2 Wire Telephone Drop Cable
Telephone Wires:	8c Telephone Cable
Approval:	CE, RoHS, ISO
Application:	Submarine Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	RoHS
Type:	CE, RoHS, ISO Telephone Cable
Model:	CE, RoHS, ISO 4c Flat Telephone Cable

Product Description

CE,ROHS,ISO 4C Flat Telephone Cable

4C Flat Telephone Cable

Specifications:

1)  2 Pair Cat3 Telephone Drop Cable
2Px24AWG BC/CCA Conductor+0.90mm PE Insulation+4.2PVC jacket

2) 4 Pair  Telephone Drop Cable
4Px24AWG BC/CCA Conductor+0.90mm PE Insulation+5.2PVC jacket

3) 4 Core Telephone Drop Cable
4C*24AWG BC/CCA+0.90mmPE+Ripcord+5.0mmPVC Jacket

4) Customers' specifications are welcomed.

5) Telephone Drop Cable

1)figure 8 and figure B or Figure D, 1.02mm copper or CCS, PE or 2)PE or PVC jacket
drop wire telephone cable
1.Conductor: 1.02mm or 0.64mm CCS or Bare copper. conductor diameter can be produced as per customer request.
2. PVC or PE jacket.
3. 305meters,500meters or 1000meters per roll.

1.PHYSICAL DIMENSIONS
Diameter of Conductor,mm		1.02mm +/-0.01
Min. insulation Thickness.mm		1.00mm
OVERALL DIAMETER	Major .MM	6.85-7.50
	Minor.MM	3.85-4.5
H.PHYSICAL TESTS
A.Conductor
Elongation, %		1.5
Tensile strength,kg/mm2		128
B.Insulation
Elongation, %		7.5
Tensile strength,kg/mm2		0.0186
ELECTRICAL TESTS
Conductor Resistance,ohm/KM		80.4

Telephone Cable Picture :



CE,ROHS,ISO Telephone Cable Application:
10 Base-T
100 Base-TX
100VG-AnyLan
1000 Base-T(Gigabit Ethernet)
155 Mbps ATM
622 Mbps ATM

CE,ROHS,ISO Telephone Cable Data Sheet:

Frequency (Mhz)	RL (dB)	ATT (dB/100)	NEXT (dB)	PS. NEXT (dB)
1	20	2	65.3	62.3
4	23	4.1	56.3	53.3
8	24.5	5.8	51.3	48.8
10	25	6.5	50.3	47.3
16	25	8.2	47.3	44.3
20	25	9.3	45.8	42.8
25	24.3	10.4	44.3	41.3
31.25	23.3	11.7	42.9	39.9
62.3	20.7	17	38.4	35.4
100	19	22	35.3	32.3

Telephone Cable Certificate :

Telephone Cable Packing Picture



Telephone Cable Packing:

1) With plastic/paper spool:100m,200m,300m per reel
2) With PE film:100m,200m,300m per reel
3)  Out packing:Carton
Customer's requirement also be welcome


Other Cables:
1) Lan  Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3
2)  Coaxial Cable RG6 RG59 RG59-2C RG11 QR500
3) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable
4) Security Alarm Cable / Fire Alarm Cable
5) Optical Fiber Cable
6) Speaker Cable / Power Cable / Electrical Cable / Multi-Core Cable
7) Trunk Cable QR750 QR540 QR500 QR412
8) KoaxialKable CT100,CT165, KX6, KX8,17VATC,19VATC,SAT703,SAT602
9) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223
10) 50ohm Cable LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600
11) 75 ohm Coaxial Cable 3C-2V, 5C-2V, 4C-FB, 5C-FB
12) 50 ohm Coax Cable 3D-FB,4D-FB,5D-FB,7D-FB,8D-FB,10D-FB
13) Mini Coax Cable: RG591885A,8218 Cable,1.37mm,0.81mm ect
14) Cabo Coaxial RG6 RG59 RG11 QR500 RF4mm
15) Telecom Cable BT3002, PCM Cable, Multi-Core Coax Cable
16) Coaxial Cable Connector(BNC,RCA,Female, Male)
17) Indoor TV Antenna, Outdoor TV Antenna,Satellite Antenna
18) CATV Transimitter, CATV Amplifier,CATV Receiver
