CE RoHS Shunt Release MCB Auxiliary

Name: CE RoHS Shunt Release MCB Auxiliary
Brand: all-electronics-online.com
SKU: 743046505
Availability: InStock
Rating: 5 (51 reviews)

Price:	US $ 2.9-3.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	EKM1-MX
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	PA
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	1
Certification:	RoHS

Product Description

EKM1-MX Shunt Release

Specification

Standard	IEC60947-5
Electrical Feature
Rated voltage US	AC 230/400V 50/60Hz DC24 DC48
Rated voltage US	AC 24V 50/60Hz
Rated short circuit making capacity	20le, t=0.1s
Rated impulse withstand voltage (1.2/50) Uimp	4000V
Dielectric test voltage at ind. Freq. For 1 min	2000V
Pollution degree	2
Insulation voltage Ui	500V
Mechanical Feature
Electrical life	4000
Mechanical life	4000
Protection degree	IP20
Ambient temperature (with daily average≤ 35º C)	-5 º C...+40 º C
Storage temperature	-25 º C...+70 º C
Installation
Terminal connection type	Cable
Terminal size top/bottom for cable	2.5 18-13AWG
Tightening torque	0.8 N*m 7In-Ibs

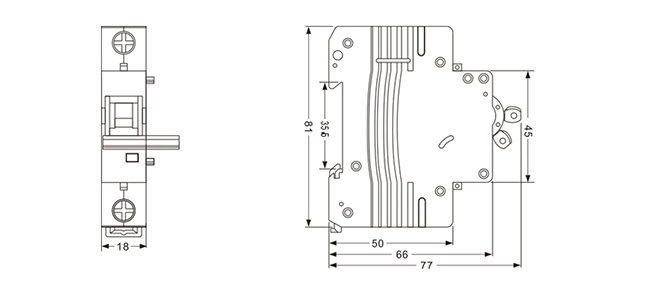

Overall and Installation Dimension(mm)
