Ce Standard 300/500V PVC 10.0mm 3 Core H05VV F Power Cable
| Price: |
US $ 0.1-2/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,Money Gram |
| Prod Model: |
h05vv f |
| Conductor: |
Stranded Core Copper |
| Insulation: |
PVC/Ti2 |
| Jacket: |
PVC/TM2 |
| Color: |
Any |
| Voltage Rating: |
300/300V |
| Test Voltage: |
2000V |
| Temperature Range: |
Fixed -20 to 70degree, Movable -5 to 70degree |
| Name: |
PVC 10.0mm 3 Core H05VV F Power Cable |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Brand: |
Jiukai or OEM |
Product Description
CE standard 300/500V pvc 10.0mm 3 Core H05VV F power cable
Product Description & ParametersAvailable for external & internal wiring of electrical instrument, power device & automatic device without forcible traction. Without direction, at times for movable wiring.
Stranded bare copper or tinned copper according to VDE0281 Class5, HD21.5S3 IEC227-5
PVC/TI1 insulation in accordance with DIN VDE0281
PVC/TM2 Jcaket material.
Application Standard:
HD21.5, VDE0281, CEI20-20/5, CEI20-35(EN60332-1), CEI20-52, CEI(Low voltage)73/23/EEC and 93/68/EEC
Conformity Approval: RoHS CE
Features & Conformity: Super fine conductor, flexible for small bending angle, durable for certain external mechanical forces, in accordance with EU Harmonized Standards. | Model | Conductor | insulation Thickness | jacket Thickness | Average overall diameter | Max. conductor Resistance | Min. Insulation Resistance |
| (at 20) | (at 70) |
| Nominal area | construction | Lower limit | Upper limit | copper | |
| mm2 | No./ mm | mm | mm | mm | mm | Ω/km | kΩ km |
| H05VV-F | 2*0.75 | 24/0.20 | 0.6 | 0.8 | 5.7 | 7.2 | 26 | 0.011 |
| H05VVH2-F | 2*0.75 | 24/0.20 | 0.6 | 0.8 | 3.7*6.0 | 4.5*7.2 | 26 | 0.011 |
| H05VV-F | 2*1 | 32/0.20 | 0.6 | 0.8 | 5.9 | 7.5 | 19.5 | 0.01 |
| H05VVH2-F | 2*1 | 30/0.25 | 0.6 | 0.8 | 3.9*6.2 | 4.7*7.5 | 19.5 | 0.01 |
| H05VV | 2*1.5 | 49/0.25 | 0.7 | 0.8 | 6.8 | 8.6 | 13.3 | 0.01 |
| H05VV | 2*2.5 | 56/0.30 | 0.8 | 1 | 8.4 | 10.6 | 7.98 | 0.009 |
| H05VV | 2*4 | 24/0.20 | 0.8 | 1.1 | 9.7 | 12.1 | 4.95 | 0.007 |
| H05VV | 3G0.75 | 24/0.20 | 0.6 | 0.8 | 6 | 7.6 | 26 | 0.011 |
| H05VV | 3G1 | 32/0.20 | 0.6 | 0.8 | 6.3 | 8 | 19.5 | 0.01 |
| H05VV | 3G1.5 | 30/0.25 | 0.7 | 0.9 | 7.4 | 9.4 | 13.3 | 0.01 |
| H05VV | 3G2.5 | 49/0.25 | 0.8 | 1.1 | 9.2 | 11.4 | 7.98 | 0.009 |
Packaging & Shipping
Package:
1. Plastic/Wooden Drum: 100M/Roll,500M/Roll,1000M/Roll.
2. According to customer requiremet. |
Delivery:
7-15 days |

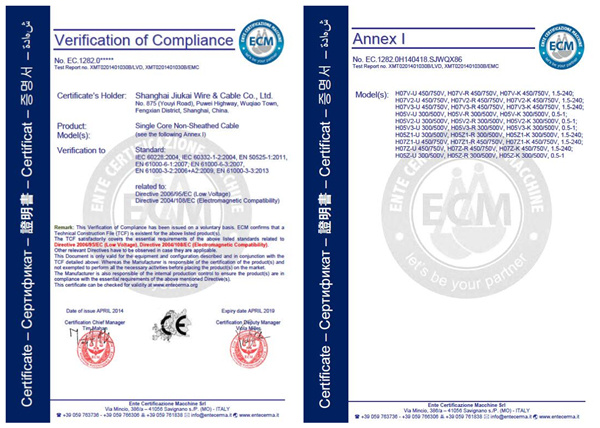

Certification
We passed UL, CCC, CE, VED etc. CE NO.2010-C181-LVD
I will give you copy of certification if you need more information.
