| Prod Model: |
HBS1-AF-11D |
| Item No.: |
Hbs1-Ay-11d |
| Mounting Hole Size: |
16mm |
| Contact Configuration: |
1no 1nc/2n02nc |
| Protection Degree: |
IP40 |
| Operation Type: |
Momentary/Latching |
| Illuninated Type: |
Head Illumination |
| Crust Material: |
Plastic |
| Switch Rating: |
5A/250V |
| LED Color: |
R/G/Y/O/W/B |
| Terminal Type: |
Pin Terminal |
| Type: |
Composite |
| Usage: |
Check Button |
| Kind: |
Double-pole on-off Switch |
| Brand: |
Hban |
Product Description
CE TUV IP40 protection level push button reset switch on off switch 16mm
Item No
HBS1-AF-11D(1NO1NC,momentary,head illumination,square head)
HBS1-AF-11DZ (1no nc,latching,head illumination,square head)
HBS1-AF-22D (2no2nc,momentary,head illumination,square head)
HBS1-AF-22DZ (2no2nc,latching,head illumination,square head)
specification
| Item No | HBS1-AF-11D | HBS1-AF-11DZ | HBS1-AF-22D | HBS1-AF-22DZ |
| Switch rating | 5A/250V |
| Mounting hole size | 16mm |
| front shape | aquare head |
| Contact configuration | 1no1nc | 1no1nc | 2no2nc | 2no2nc |
| operation type | momentary | latching | momentary | latching |
| terminal type | pin terminal |
| switch type | single breakpoint snap action changeover contacts |
| contact resistance | ≤50mΩ |
| insulation resistance | ≥1000MΩ |
| dielectric strength | 2000VAC |
| Operating temperature | -20ºC~50ºC |
| mechanical life | >1000,000 times |
| electrical strength | >50,000 times |
| panel thickness | 1~10mm |
| torque | 5~14mA |
| protection degree | IP40 ,IP65 can be made to order |
| contact material | silver alloy |
| crust material | PBT |
| Lamp type | (led)head illumination |
| rated voltage | 6v/12v/24v/110v/220v |
| led color | R/G/Y/W/B/O |
| LED life | 50,000hours |

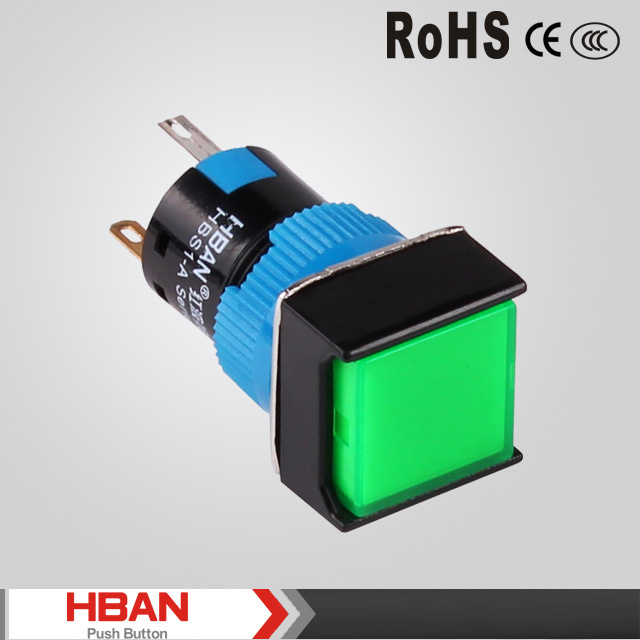

product picture
Packing details
We pack 40 pieces diameter 16mm metal push button switches into 1 foam box to protect them. We supply 40 pieces rubber rings and 1 piece guarantee card with these switches. Then we packed this foam box into a plastic bag, it will packed into a small box with 3 layers corrugated. Finally, we packed 10boxes / 20 boxes into A 5 layers corrugated export carton.
