Ce/UL Certification Standard Copper Conductor Control Cable

Name: Ce/UL Certification Standard Copper Conductor Control Cable
Brand: all-electronics-online.com
SKU: 813976485
Availability: InStock
Rating: 4.4 (114 reviews)

Price:	US $ 5-7/Roll
Min Order:	100/Roll
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	gemt070
Color:	Black,White,Red,Blue,Yellow etc
Sizes:	Customized
Type:	Insulated
Conductor Type:	Stranded
Application:	Heating
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	RoHS
Brand:	Gemt

Product Description

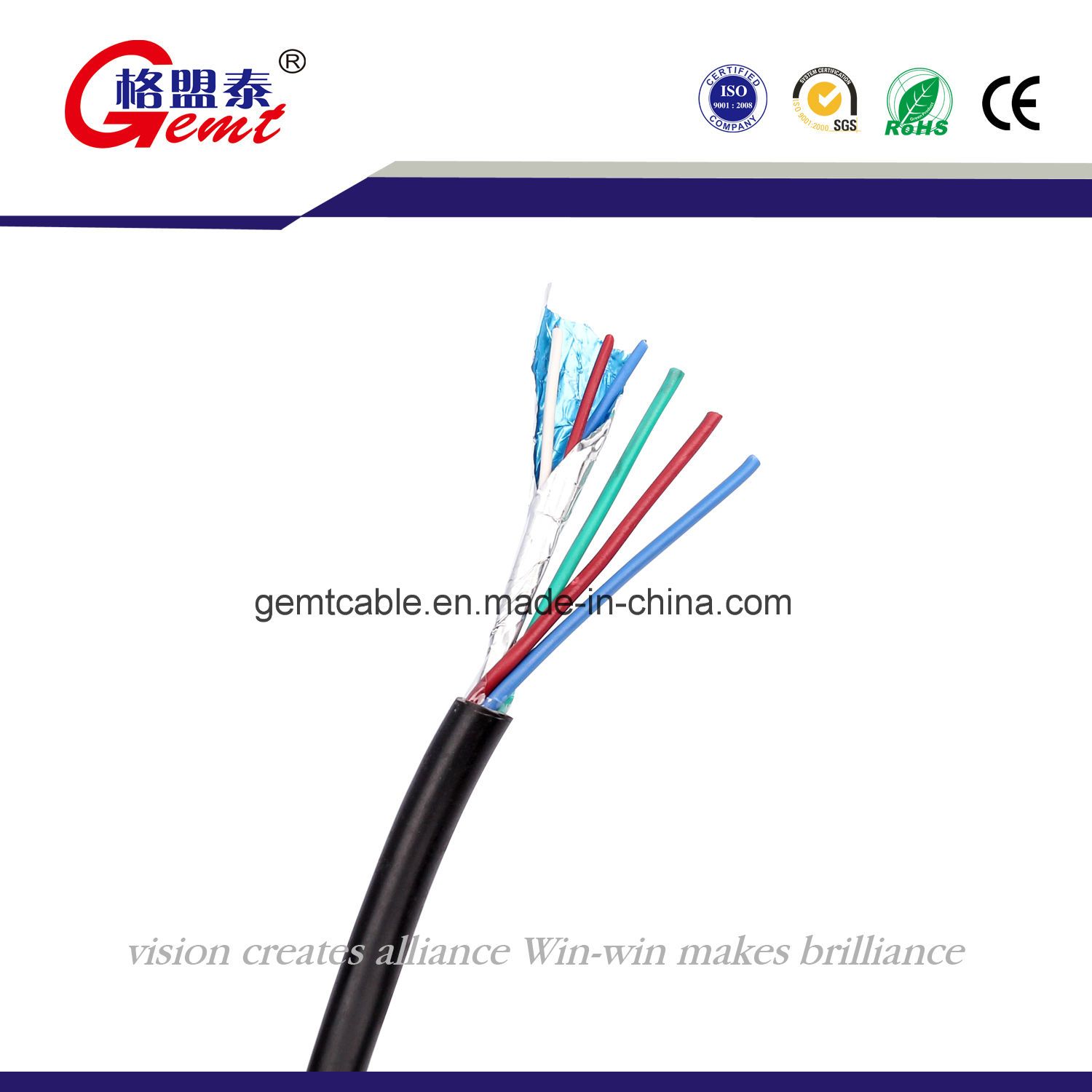

CE/UL Certification Standard Copper Conductor Control Cable

1. Products details:
Standard: IEC 245-81
Application: For welding machine or power machine
Structure: Copper strands conductor, sulphurate rubber/ PVC insulation
Voltage: 600/1000V

2. Description:

Model/Specifications	Number and nom.cross-section of conductors mm²	Nominal Insulation thickness mm	Mean overall dianmeter(upper limit mm)	Max.D.C.resistance of copper conductor(20ºC) Ω/km	Min.insulation resistance(70ºC) MΩ/km
RV1x28/0.15	1x0.5	0.6	2.6	39.0	0.013
RV1x24/0.2	1x0.75	0.6	2.8	26.0	0.011
RV1x32/0.2	1x1.0	0.6	3.0	19.5	0.010
RV1x48/0.2	1x1.5	0.7	3.5	13.3	0.010
RV1x49/0.25	1x2.5	0.8	4.2	7.98	0.009
RV1x56/0.3	1x4.0	0.8	4.8	4.95	0.007
RV1x85/0.3	1x6.0	0.8	6.3	3.30	0.006
RV1x80/0.4	1x10.0	1.0	6.3	3.30	0.005
RV1x135/0.4	1x16.0	1.0	8.8	1.21	0.0046

BS6004
	MM² Normal area	MM Structure	MM Approx dia.	Ohm/km Min Insulation resistance at 20ºC	MM Thickness of insulation
300/500V	0.30	16/0.15	1.90	0.0160	0.60
	0.40	23/0.15	2.00	0.0140	0.60
	0.50	16/0.20	2.10	0.0130	0.60
	0.75	24/0.20	2.20	0.0110	0.60
	1.00	32/0.20	2.40	0.0100	0.60
400/750V	1.50	48/0.20	2.90	0.0100	0.70
	2.50	49/0.25	3.40	0.0090	0.80
	4.00	56/0.30	3.90	0.0070	0.80
	6.00	84/0.30	4.70	0.0060	0.80
	10.00	84/0.40	5.90	0.0056	1.00

3. FAQ:
Q: Can I have a sample?

A: Yes, we welcome sample order to test and check quality.

Mixed samples are acceptable.
Q: How long is the lead time?

A: Sample needs 1-2 days; mass production needs 15-30 days.
Q: Do you have the MOQ limit?

A: Our MOQ is 100-10000meters, depending on the products;

Sea Port: FOB Shenzhen.

Q: Do you provide OEM or ODM services?

A: Yes, we do.

Q: Do you offer guarantee for the products?

A: Yes, we offer five years guarantee for the products.

WARMLY WELCOME TO VISIT TO OUR FACTORY AND SHOWROOM , AND KNOW MORE ABOUT US ~~~~

PLS FEEL FREE TO

CONTACT ME : VERA ZHUANG
TEL:+86-13415529380

Gemt Cable Co., Ltd., is a professional supplier of Power Cable, Coaxial Cable, Data Cable, Video Cable, HDMI Cable, Wire Cable, LAN Cable, Communication Cable, Electric Wire, Electric Cable, XLPE, Networfking Cable, Alarm Cable. Located in Yantian Village, Fenggang Town, Dongguan City, China. Mainly engaged in Wire & Cable's manufacture. It is integrated with R & D, Purchase, Manufacture, Promotion and Marketing.

The company has advanced production lines and inspecting equipments. With a group of professional engineers, by strictly following to GB and IEC standards and carry out ISO90001 rigorously, all products produced in this factory is pass the CCC, CE CB RoHS Certifications.

Our tenet is "Specialized quality, Sincere service",

From customers' interest, we are dedicated to provide the high quality products and first-class after-sale service, Since all brands that belong to our company enter into market, they are receiving a lot of user's trust and praise

Base on the persisting dedication of Gemt staff, the company will continue to convergence of the industry technology, management, marketing and other elites, dedicated to the development of power industry, as always, join hands in creating a brilliant tomorrow!
